Application

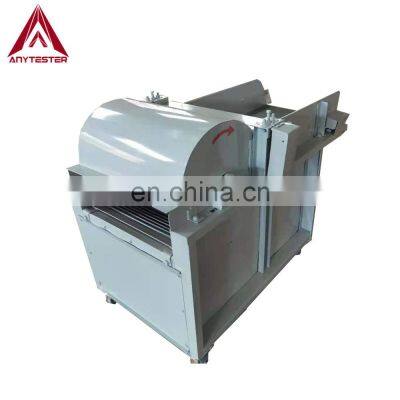

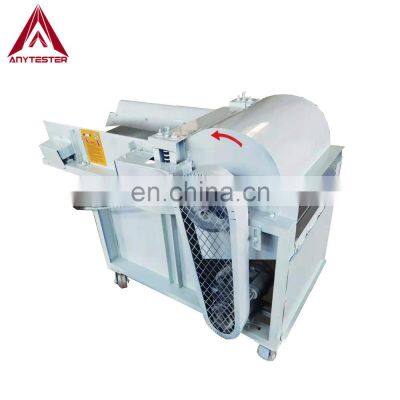

.AT201-300 Lab Blowing Open Machine is used to open cotton, wool, chemical fiber etc. And remove impurities.
Features
★ The feed in motor equipped with imported frequency converter control, high speed feed in fiber can get better out quality.
★ The opening roller speed is also can be adjustable, with different opening speed, you can get different output quality, it’s suitable for research purpose. This function is optional, not standard function.
★ With output blowing motor, the output fiber can be collected together.
★ Mini type machine, save researching cost and easy to operate and maintain
Technical specification
Model | AT201-300 |
Feeder width | 300mm |
Fiber type | Cotton, wool, chemical fiber etc. |
Fiber length | 22 ~ 42 mm or customized |
Feeding motor | 0.55KW, speed adjustable |
Opening motor | 1.1KW, (speed adjustable optional) |
Blowing motor | 1.1KW, (speed adjustable optional) |
Output capacity | 5 ~ 10 kg per hour |
Machine size | 1800*700*1500mm (including the ) |
Power | 110V/220V, 50Hz |
