Home > Products > Lab Spinning & Weaving > mini spinning system lab ring spinning machine for cotton

mini spinning system lab ring spinning machine for cotton

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

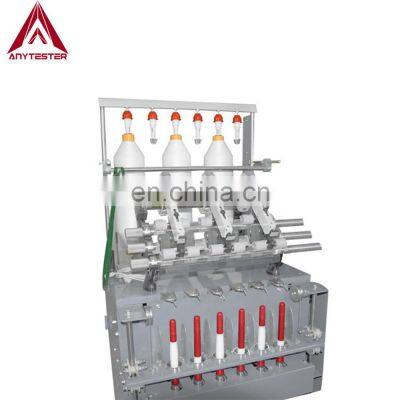

AT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.

Specification

Model	AT206
Number of spindles	6
Fiber type	Cotton or cotton-type chemical fibers Customized for wool
Twist range	50~250twists/meter
Draft range	Approx. 2~50
Output capacity	0.25~0.5kg/h
Roller diameter	Φ25/25/25mm
Ring diameter	Φ38 ~ 45mm
Spindle speed	Max. 12000rpm
Bobbin length	205mm
Twist direction	Z or S, settable
Power supply	AC220V 50Hz, 550W

Details & Features

1. Mini machine, save researching cost and easy to operate and maintain;

2. Touch screen & PLC control;

1. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;

1. Frequency converter of high efficiency to control roll speed;

2. Pressurizing system :spring pressure cradle;

3. Three-up-three-down drafting structure;

4.Optional special program for spinning slub yarn on this ring spinning machine;

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
