Product Description
Product Description

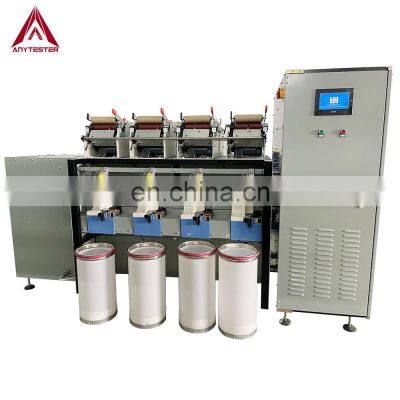

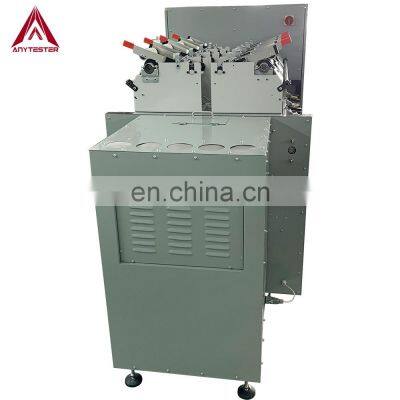

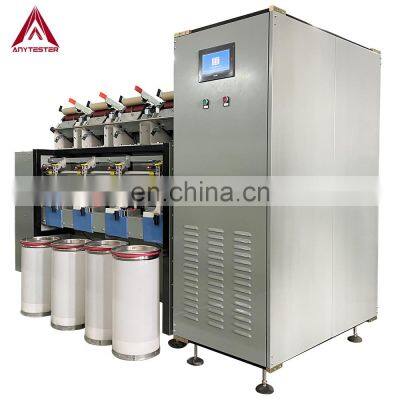

AT206R Laboratory Rotor Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert fiber into yarn.
Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Specification
Model | AT206R |
Spindle number | 1, 2, 3, 4 or customized |
Fiber type | Cotton |
Revolving cup speed | 30000rpm |
Combing roller | 6000rpm |
Drafting range | 30 ~ 250 |
Coiling speed | 20 ~ 110m/min |
Fiber length | 22 ~ 42 mm |
Output capacity | 0.25 ~ 1 kg per hour or customized |
Power | 220V/380V, 50/60Hz, 640W |
Dimension | 800*600*1700mm |
Packing & Delivery
Packaging | ||
Size(cm) | 73 (L) * 72 (W) * 168.5 (D) | |
Weight | 260 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
