Pirn Winding Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

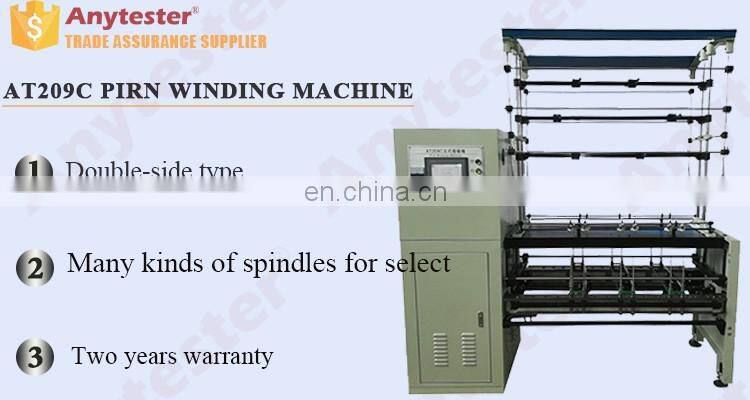

AT209C Pirn Winding Machine
AT209C Pirn Winding Machine is intelligent vertical pirn winding machine, an necessary equipment in preparation for shuttle weaving. It is used to wind yarn from bobbin onto pirn for shuttle loom. It is applicable to various yarns, such as pure cotton, polyester cotton, ramie and so on.
Specification
Model | AT209C |
Type | Double-side |
Number of spindles | 12, 28, 60, 92, 124, 156, 188, 220, 252, 284, 316 |
Spindle gauge | 70mm |
Spindle speed | 2560~3800r/min, adjustable |
Max. winding diameter | ¢32mm |
Max. winding height | 205mm |
Power supply | AC380V 50Hz, three-phase |
Dimensions for 156 spindles | 6220×760×1950(L×W×H) |
Weight for 156 spindles | 1.8T |
Details and Features
1 Double-side vertical-type;

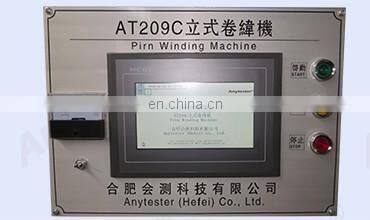

2 Touch screen display and PLC control;

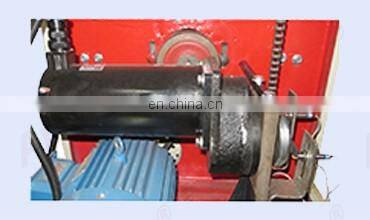

3 Adjustable winding speed with variable-frequency motor control and three-belt driving;

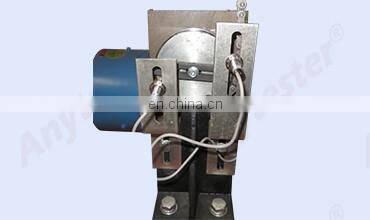

4 Stepping motor to control the winding stroke and the beginning and end positon of winding is adjustable;
Our Company
Packing&Delivery
Package | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
