Small Scale Drawing Frame
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Application
Small Scale Drawing Frame

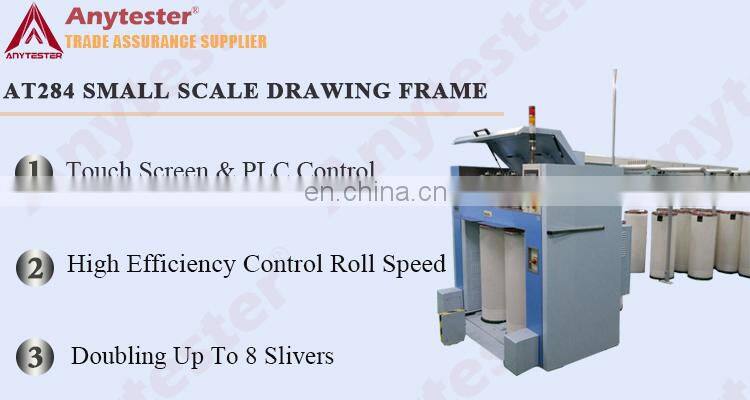

AT284 Small Scale Drawing Frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver.
Details and Features
1 Mini machine, save researching cost and easy to operate and maintain;
2 Touch screen & PLC control;
3 Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
4 Frequency converter of high efficiency to control roll speed;
5 Doubling up to 8 slivers;
6 Four-up-Three down drafting structure;
7 Can coiler to output and coil cotton sliver in sliver can;
Technical specification
Model | AT284 |
No. Of delivers | 2 |
Distance between two delivers | 570mm |
No. Of feeding ends | 3~8 |
Feeding can size | Φ400/500/600/800*900/1100mm |
Feeding type | Wing overhanging type, positive feeding |
Drafting type | 4 over 3 with pressure bar |
Total drafting | 4.013 ~ 13.556 |
UP roller diameter | Φ36, 36, 33, 36mm, pressure bar Φ12mm |
Bottom roller diameter | Φ45, 35, 35mm |
Loading type | Spring loaded or cradle of pneumatic pressure |
Cleaning type | Revolving cloth wiping top roller for upper cleaning: single apron traverse wiping roller cleaning. Fly is sucked into hopper through suction inlet |
Output can size | Φ400/500*900/1100mm |
Can change type | Individual motor drives chain and push rod. Feeding empty can while pushing out full can |
Can change motor | FW11-6, D2/3, 0.25kW, 910 r/min |
Fan | FW12-2, D2/T3, 0.75kW |
Mode of drive | Enclosed drive, high speed gears in oil-bath, imported bearing |
Brake | Electrolytic capacitor brake or inverter brake |
Operate mode | Touch screen & PLC control |
Auto stop motion | Photoelectric stop and mechanical stop motion |
Power supply | 3 phase AC380V 50Hz, 4kW |
Dimensions | Breaker-drawing: 4200*2000mm Finisher-drawing: 3600*2000mm |
Weight | 2350kg |
