With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine

With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine photo-1
With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine photo-2
With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine photo-3
With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine photo-4
With a Bucket Feeder Small Alpaca Wool and Cotton Fiber Carding Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

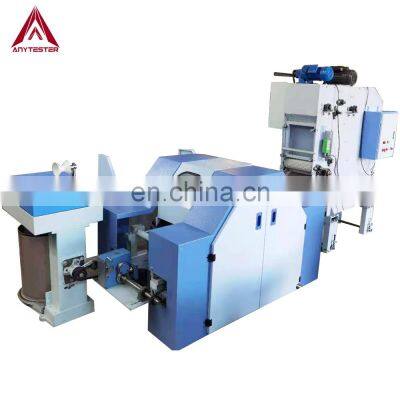

AT202 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. It
is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By
passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of
fiber and then aligns the individual fibers to be parallel with each other.

Specifications
Feeding width
400mm
Working width
360mm
Cylinder diameter
Φ450mm
Doffer diameter
Φ220mm
Licker-in diameter
Φ165mm
Working roll diameter
Φ110mm
Wipe roll diameter
Φ90mm
Speed
Adjustable (Frequency converter control)
Max. fiber length
about 100mm
Villus bucket power
1.5KW
Output capacity
5~10kg/h
Maine machine power
AC220V/380V, 50/60Hz, 2.2KW
Dimension
1350mm*950mm*900mm (main machine)
Weight
650Kg
Detailed Images
★ Can be used for wool fiber or chemical fibers
★ Suit for the fiber with max length of 100mm

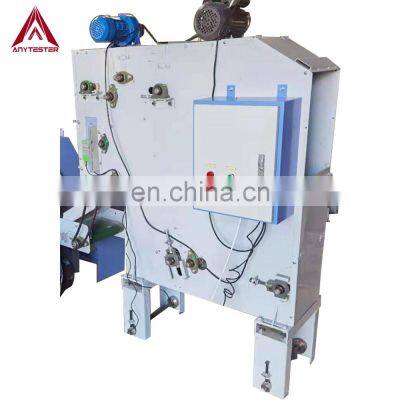

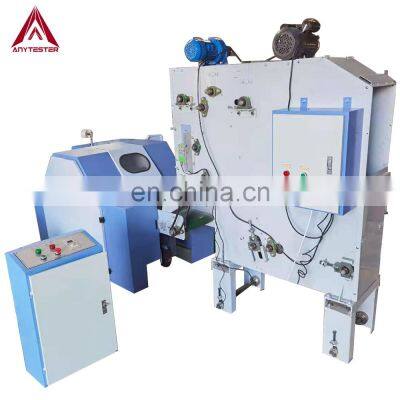

Equip with a Villus Bucket
★ Could Feed the fiber automatically
★ Have the part function of opening
★ Make the fiber feeding more eveness
★ Could Output both of sliver and web
With full-closed protective cover.
★ Two rollers feeding
Mini type machine, save researching cost and easy to operate and maintain
Packing & Delivery
Packaging
Size(cm)
180(L) * 110 (W) * 110 (D)
Weight
650 Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
