Lab Cone Winding Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

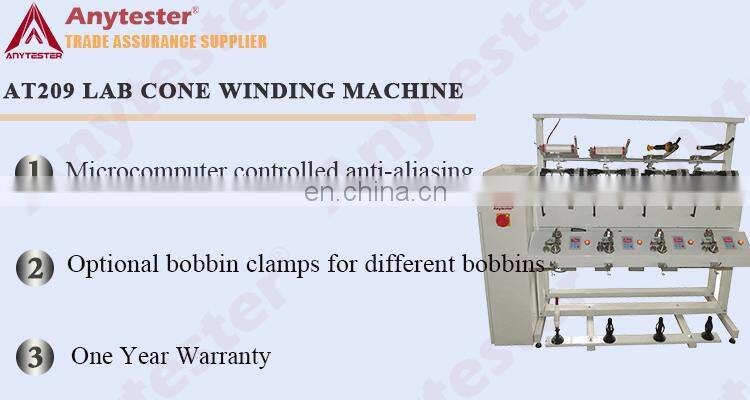

AT209 Laboratory Cone Winding Machine
AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.
Specification
Details and Features
Model | AT209 |
Number of spindles | 4, 6, 12, 24, 36, …, 108, 120 |
Grooved drum | O/D82mm Pitch: 2.5×147 |
Take-up package | 3º30´, 4º20´,5º57´,9º15´or cylindrical |
Max. package diameter | ¢280mm |
Max. length setting | 999999 meter, electronic setting |
Drive mode | DC brushless motor with adjustable speed |
Max. winding speed | 1100meter/minute |
Yarn-guiding traverse | Standard 147mm |
Radial anti-aliasing system | Microcomputer control |
Rated power | 60W/spindle at max. speed |
Power supply | AC220V 50Hz, single-phase |
1 Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;
2 Automatic length setting up to 999999 meter;
3 DC brushless motor to independently drive each grooved drum with adjustable winding speed;
4 Optical yarn breaking detector for each spindle;
5 Microcomputer controlled anti-aliasing;
6 Optional knotter and optional electronic yarn cleaner;
7 Hank to cone winding is optional
8 Optional bobbin clamps for different bobbins;
Our Company
Packing&Delivery
Package | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | ||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||||
CIF | ||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
West Union | Amount lower than 5000usd | |||||
Delivery Time | 7~10days after receiving payment for one container | |||||
