Digital Elevator cable wire Rope Tension Meter
- 1000 per Month
- T/T Credit Card
Product Description

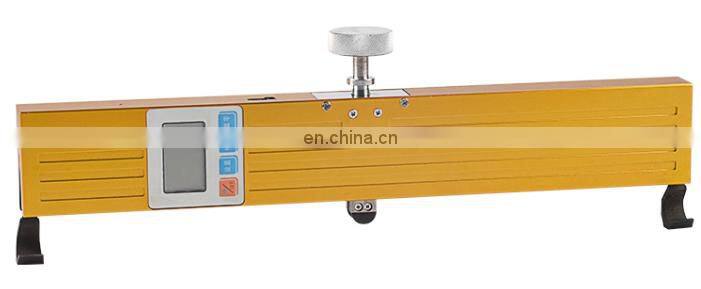

NGZ Digital Elevator Rope Tension Meter
Usage and Application
Elevator rope tension tester is mainly used in elevator wire rope tension test . To check and adjust each wire rope of elevator in the process of installation, check before acceptance and annual inspection to ensure its tension as consistent as possible, thereby prolonging the service life of the traction wheel . The tension tester can also be applied to the bridge with sling, tower wiring,overhead wire ,index wire rope and other tension test.
Feature
1.Portable:the tension tester use high-strength aluminum alloy structure with light weight and small size.It is easy to carry ,one person can complete all the operations.
2.The instrument has stable performance and high accuracy,when the tested wire rope are consistent with wire rope tension tester data ,the measuring precision can be 5%.
3.Light weight ,simple structure,easy to operate,suitable for any occasion.
4.The instrument has 3 preset wire rope diameter model, just need to choose the correct wire rope number when measuring .
5.LCD display shows the value force,it is more convenient to reading.
6.Three units:N,Kg and Lb can switch into each other .
7.The instrument can store 383 measuring data,the data can be output by computer.

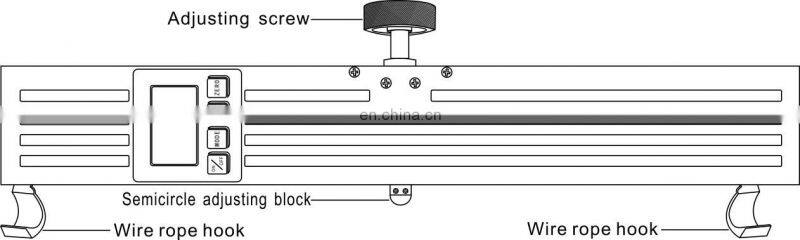

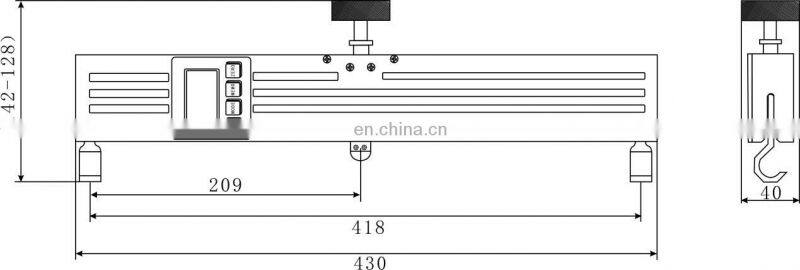

Structure
Technical data
Model |
NGZ-Y-3000 |
NGZ-Y-5000 |
||||
Number |
1 |
2 |
3 |
1 |
2 |
3 |
Diameter |
φ6 |
φ8 |
φ10 |
φ11 |
φ13 |
φ16 |
Range |
3000N |
5000N |
||||
Min. Load Division Value |
1N |
|||||
Scientific measuring range |
10%~90% |
|||||
Accuracy |
≤±5% |
|||||
Power |
7.2V 1.2V×6 NI-H Battery |
|||||
Charger |
||||||
Weight (Kg) |
1.4 kg |
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
