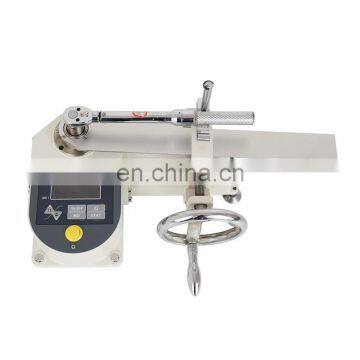

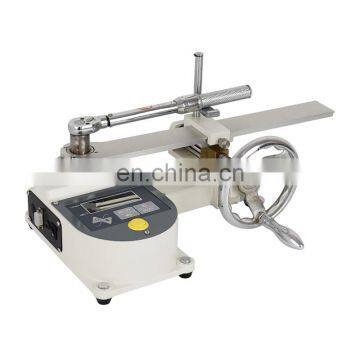

100N.m torque wrench calibrator tester
- 1000 per Month
- T/T Credit Card
- YAW-300D 300kN price compression testing machine
- Economy physical digital tension gauge for push and pull force
- Sale mechanical torque wrench tester for calibration
- High precision electric torque screwdriver calibration tester
- China supplier digital clamping force meter for push and pull force
- Big measure range digital push and pull hf dynamometer
Product Description
ANBH torque wrench calibrator tester
Application and Usage
ANBH-type torque wrench tester is a test torque wrench, torque screwdriver special equipment.
Mainly used for testing or calibration torque wrench, preset torque wrench, pointer torque wrench.
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry.
Torque value through the digital instrument display, accurate and intuitive.
Feature
The instrument is a specially designed for calibration or adjustment of torque wrench digital torque wrench tester, has the following characteristics:
1. Multiple units can be selected, including Newton units (N.m), metric units (kgf.cm) and US units (lbf.in).
2. Two measurement modes, real-time, peak two modes are free to switch.
3. When the upper and lower settings are reached, the buzzer alarm
4. Data saving function, can save the measurement data group 100
Steps
1. When using this instrument for the first time, install the lateral slide block and handle.
2. Slide the slide tab into the swivel assembly and secure it with a locking screw in a position.
3. Rotate the handle into the handwheel.
4. Plug in the power cable.
5. Turn on the main switch and press the power button.
6. Place the torque wrench into the adapter.
7. Adjust the height adjustment spring and the length adjustment nut to the appropriate position, and then clear the display.
8. Select the desired unit and measurement mode
9. shake the hand wheel, start testing, until the instrument issued a "click" sound to complete the test.
Technical data
Model |
ANBH-20 |
ANBH-50 |
ANBH-100 |
ANBH-200 |
ANBH-500 |
Max Load |
20N.m |
50N.m |
100N.m |
200N.m |
500N.m |
Minimum resolution |
0.001 |
0.001 |
0.001 |
0.01 |
0.01 |
Accuracy |
±1% |
||||
Unit exchange |
N.m Kgf.cm Lbf.in |
||||
Power |
Input:AC 220v Output:DC 12V |
||||
Working temp. |
5℃~35℃ |
||||
Shipping temp. |
-10℃~60℃ |
||||
Relative humidity |
15%~80%RH |
||||
Working Environment |
Surrounded by no source and corrosive media |
||||
Weight |
19kg |
27 |
43 |
Front |
Back |
Side
|
Display screen
|
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
