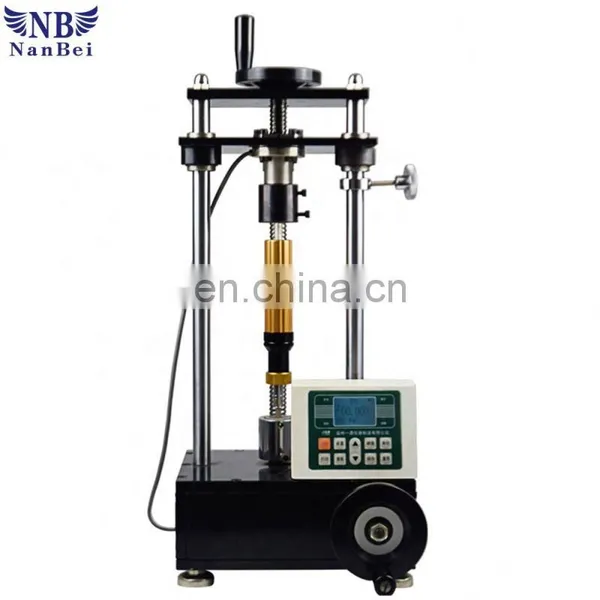

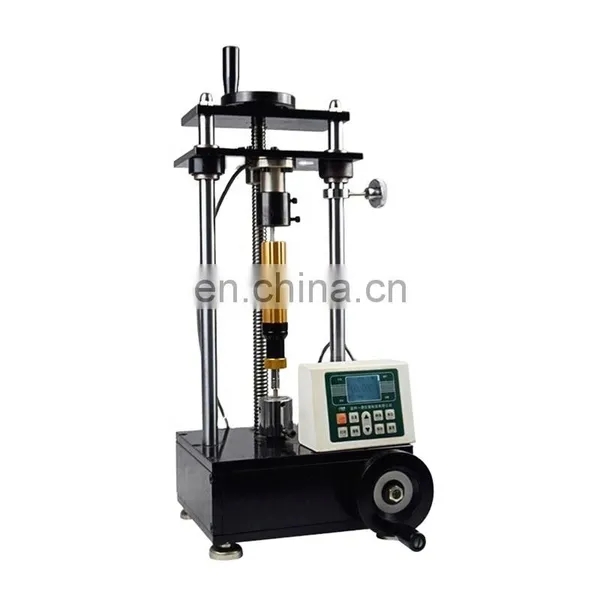

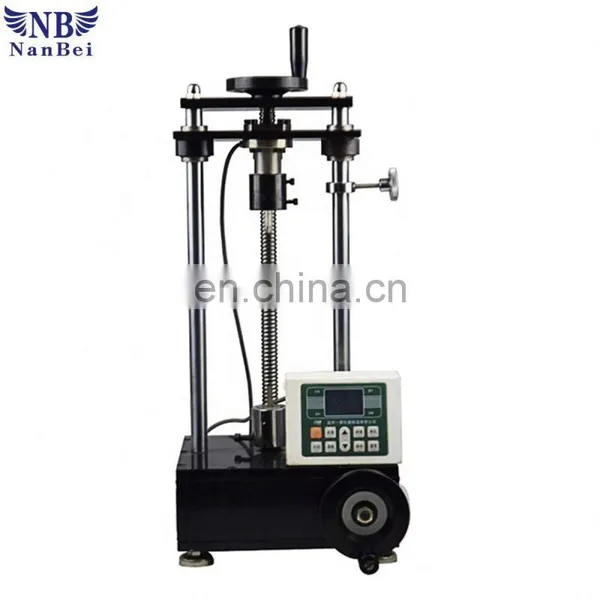

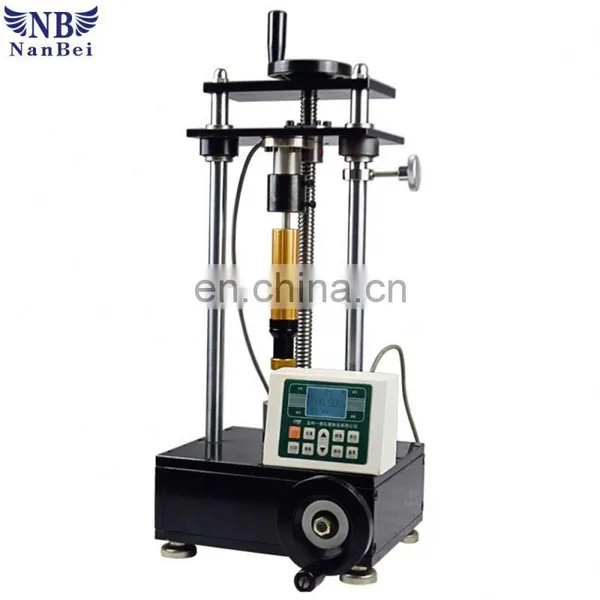

High precision electric torque screwdriver calibration tester
Application and Usage
AQJ series torque kicker is designed for testing and testing a variety of torque screwdriver design and manufacture of an intelligent multi-function measuring instruments.
Mainly used to detect and correct a variety of torque screwdriver, a variety of products involved in the test of tightening force, parts torque destructive test. With simple operation, high precision, full-featured features.
Widely used in a variety of electrical, light industry, machinery manufacturing, research institutions and other industries.
Feature
1. High precision, high resolution, sampling speed, full screen display.
2. The use of high-precision torque sensor, with torque direction display.
3. Set the upper and lower limits.
4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)
5. Real-time, peak, automatic peak three modes can be free to switch.
6. Using the USB interface to communicate with the PC, the synchronization test function may link the computer test, the computer displays the test curve and the detailed test force in the test process, and can save and do all kinds of analysis.
7. Peak hold function, automatic peak function Automatic peak value display time free setting function.
8. Storage capacity, can save 99 sets of test data.
9. No operation Automatic shutdown function, the time can be set freely

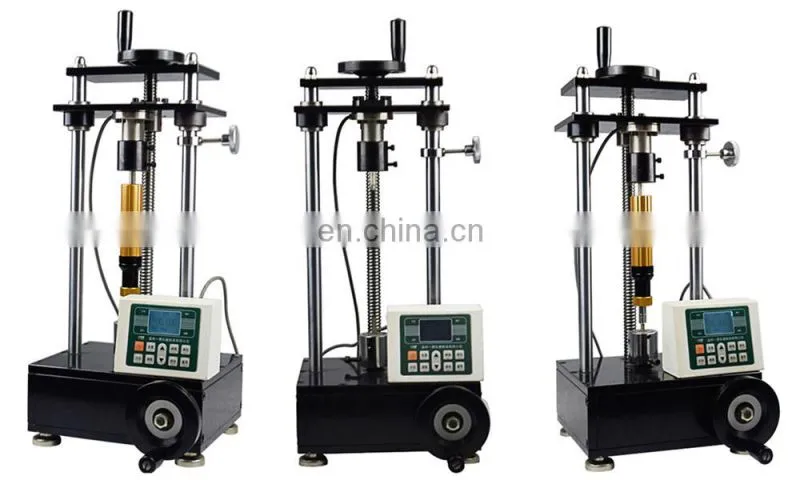

Picture for Our product
Technical data
|
Model |
AQJ-2 |
AQJ-5 |
AQJ-10 |
AQJ-20 |
||
|
Measurement range / scale value |
N.m |
2.000/0.001 |
5.000/0.001 |
10.00/0.01 |
20.00/0.01 |
|
|
Kgf.cm |
20.40/0.01 |
51.00/0.01 |
102.0/0.1 |
204.0/0.1 |
||
|
lb.in |
17.70/0.01 |
44.25/0.01 |
88.5/0.1 |
177.0/0.1 |
||
|
Accuracy |
±1% |
|||||
|
Peak sampling frequency |
1920HZ |
|||||
|
Power |
7.2V 1.2V×6 Ni-MH battery pack |
|||||
|
Charging time |
4~6 hour |
|||||
|
Battery continuous use of time |
About 10 hour |
|||||
|
Battery warranty |
≥300time |
|||||
|
Dimension |
260mm300mm620mm |
|||||
|
Net weight |
32kg |
|||||
|
charger |
Input:AC220V50HZ output:DC12V1000mA |
|||||
Packing and Shipping
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
We do not just sell equipment,we pay more attention to provide users with
high quality service!Thanks.
