Economy physical digital tension gauge for push and pull force
Product Description
The HF series are digital force gauge with compact size, high accuracy,
They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,
lighter and ignition system, light industry, mechanical, textile,
and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
This digital force gauge is new generation pulls the pressure measuring instrument.
Character:
1.Connect the computer in-phase test.
2.The compare value set by user’s request.
3.Big memory deposit function.
4.LCD overturns show.
5.Auto peak.
6.Auto close time set.
Picture for Our product
| Details | Structure |
|
|
| Screen | Install and Drawing |
|
|
Technical data
digital tension gauge for push and pull force with inner sensor
|
Model specification |
HF-2 |
HF-5 |
HF-10 |
HF-20 |
HF-50 |
HF-100 |
HF-200 |
HF-500 |
HF-1000 |
|
|
Peak load value |
N |
2 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
1000 |
|
kg |
2 |
0.5 |
1 |
2 |
5 |
10 |
20 |
50 |
100 |
|
|
lbs |
0.44 |
1.1 |
2.2 |
4.4 |
11 |
22 |
44 |
110 |
220 |
|
|
load division value |
N |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 |
0.1 |
0.1 |
1 |
|
kg |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 |
|
|
lbs |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 |
|
|
Indication error |
0.50% |
|||||||||
|
Unit |
N / kg / lb |
|||||||||
|

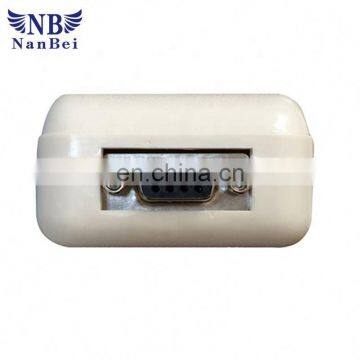

Data interface |
Rs232 nine-hole socket |
|||||||||
|
Power |
rechargeable batteries, charger(charging voltage 100V-240V) |
|||||||||
|
Sensor structure |
S-tye sensor with high precision (inner sensor) |
|||||||||
|
Ambient temp. |
5° C~35° C |
|||||||||
|
Transport temp. |
-10 C~60° C |
|||||||||
|
Relative humidity |
15%~80%RH |
|||||||||
|
Working conditions |
No hypocenter and corrosive medium |
|||||||||
|
Gross weight |
~2000g |
|||||||||
|
Size |
273 x 182 x70 mm |
|||||||||
Package
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
We do not just sell equipment,we pay more attention to provide users with
high quality service!Thanks.
