High quality and best price dongfeng 153 22m-24m hydraulic aerial working platform truck for sale
Vehicle parameters | |||
Vehicle Model |
CLW5141GJKE |
Vehicle Brand |
CLW brand |
Overall dimensions |
7865X2480X3680mm |
Curb weight |
13190kg |
Chassis parameters | |||||
Chassis model |
EQ1141KJ |
Chassis brand |
DONGFENG |
||
Overall dimensions |
7600x2462x2710mm |
Wheel base |
4500mm |
||
Front/rear wheel track |
1940x1860mm |
Front/rear suspension |
1205/1895mm |
||
Approach/departure angle |
25/18° |
Maximum speed |
90km/h |
||
Chassis Manufacturer |
Dongfeng Motor Company |
||||
Cab |
Configuration |
A row and a half deluxe cab(with sleeping berth),allowable 3 passengers |
|||
Color |
Blue,other color is optional |
||||
Engine |
Model |
B190 33 |
|||
Emission |
Euro 3 |
||||
Type |
6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine |
||||
Rated power |
190hp,rated power speed 2500rpm |
||||
Displacement |
5900ml |
||||
Max.torque |
640N.m |
||||
Bore x stroke |
102x120mm |
||||
Manufacturer |
Dongfeng Cummins Engine Co., Ltd. |
||||
Tire |
Size |
10.00-20-16 nylon tire |
|||
Number |
6+1 nos |
||||
Frame |
(250×80×7)mm,parts are double layers. |
||||
Fuel tank |
160L,steel |
||||
Front axle |
5.0T |
||||
Rear axle |
10.0T |
||||
Drive form |
4X2 |
||||
Rated voltage |
24V,DC |
||||
Transmissions |
Gearbox 8JS85E, 8 speed forward 1 reverse. |
||||
Steering device |
Power assisted steering |
||||
Steering wheel |
Left hand drive |
||||
Selective configuration |
Air Conditioner,steel wire tire,new driver’s cab |
||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Aerial work truck structure parameters | ||||
Max operation height |
24.0m |
Max working platform height |
22.0m |
|
Max rotation angle |
360° |
Working platform rated loading |
200kg |
|
Color and Logo |
Optional |
|||
Standard configuration |
Chassis,sub frame,working bucket, hook, four legs, van body, up and down operation, hydraulic control, below 12m two knuckle arms, above 12m three knuckle arms,360°rotation angle. |
|||
Selective configuration |
Hydraulic stretching legs, auxiliary motor, electric remote control, insulation bucket. |
|||
If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Mob./Wechat: 0086 13329899995.

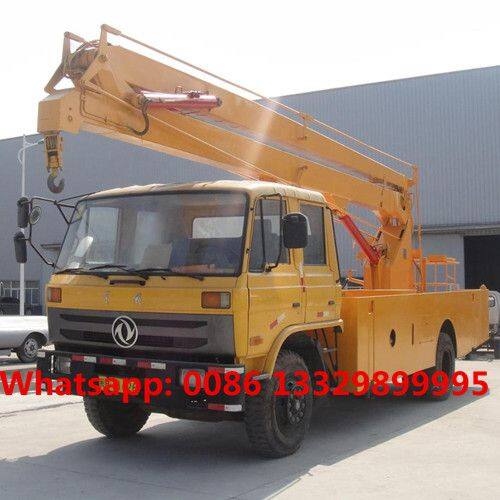

More pictures of DONGFENG 153 22M-24M hydraulic bucket truck is as below.
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Chengli Special Automobile Co.,Ltd as a professional aerial working platform truck supplier in China, the aerial working truck height is from 10 meter to 32 meter. It is mainly used for building construction, street lamp maintain, plant pruning, power grid maintenance etc. More information, please call 0086 13329899995.
