Good price JMC brand 21m aerial working platform truck telesopic type for sale
Aerial work platform truck also called bucket truck,truck mounted aerial platform,aerial work platform,hydraulic beam lifter ,bucket boom truck ,truck mounted aerial lift ,telescopic platform truck , aerial working platform , truck mounted aerial working platform .
Aerial platform truck basic specification below:
1, Aerial working height 12m,14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,JAC, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.
main technical parameters of JMC brand 21m aerial working platform truck is as below.
Item |
Name |
Specification/model |
1 |
Truck name |
CLW brand telescopic aerial working platform truck for sale |
2 |
Truck model |
CLW5046JGKJ6 |
3 |
Chassis model |
JX1041TG26 |
4 |
Working height |
21m |
5 |
Working technical parameters |
platform ground height≥19.2m platform max working range: 13m Flatform working height at the max working range: ≥3.5m Platform max working range at the max working height: ≥15M Plafrom max working Angle of Tilt: 80° Rated mass of the working bucket: 200kg |
Outriggers |
Type: Front V + rear H type, Individually control Outriggers nos. : 4 Control: Individually control or Linkage control Transverse Span of front outriggers: 4170mm gradient：120° Transverse Span of rear outriggers: 3930mm |
|
Main operation |
Operation positio: revolving stage,Teleoperation。 Control type： |
|
6 |
Coaming and platform |
Stainless steel fence and Non-slip platform |
7 |
Boom construction mode |
Three-section six-sided working arm，Synchronous scaling |
8 |
Rotator device |
360 degree full rotation |
9 |
Engine model |
JX4D30B6H 85KW/116hp diesel engine JX4D30A6H/129hp diesel engine |
10 |
Overall dimension(L*W*H) |
5998×2000×2900 |
11 |
Total mass |
4495kg |
12 |
Curb mass |
4365kg |
13 |
wheelbase |
3360mm |
JMC brand 4*2 LHD diesel telescopic aerial working platform truck, adopts JMC single row driver cab, JX1041TG26 model, JX4D30B6H 85KW/115hp diesel engine, 3360mm wheelbase, 7.00R16 rail tires, 5 speed gearbox, power steering, oil cut braking, air conditioner, etc.
The upper part of JMC brand telescopic hydraulic bucket truck as below.
product description:
1. The Jiangling Shunda 14-meter high-altitude operating vehicle adopts a telescopic straight arm structure. The operating arm is a 3-section telescopic type. The turntable can be operated or remotely operated. It can rotate 360 degrees, four hydraulic outriggers, and the maximum load-bearing bucket. 200 kg, stainless steel hoarding, pattern anti-skid walking platform.
2. The working bucket adopts mechanical self-balancing design, its function is that the working bucket is always in a balanced state when working. The maximum extension angle of the forearm is up to 80° in order to adjust to the best working position.
3. Night work lights, operation lights can be installed on the operating table according to the customer's operating environment, making night work safer.
4. Computer control, automatic limit, dangerous work alarm, excellent safety performance. There is a display when getting off the car, which can display the working conditions of the whole car in real time.
5. The hexagonal working arm increases the strength, synchronously expands and contracts, the structure is compact, the working efficiency is high, and the working range is large. The telescopic oil cylinder is installed externally, and the chain telescopic mechanism is easier to observe the fault point and convenient for maintenance.
6. The outrigger adopts the front V and rear H-shaped structure, which has a larger bearing surface and higher stability; it can prevent the car beam from being deformed or broken. The outriggers are individually adjustable, and each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state. All outriggers are equipped with outrigger flashing lights for supporting during operation. The legs are profiled and a light alarm signal is issued.
7. The four vertical outrigger cylinders and the upper arm, lower arm, and forearm cylinders are all equipped with two-way hydraulic locks. The function is to lock the cylinders in place after reaching the required position to prevent accidents. The working arm is equipped with a two-way balance valve to make the working arm run more smoothly.
8. The main components of the vehicle including two-way hydraulic lock, two-way lock balance valve, hydraulic flow valve, hydraulic cylinder, engine start-stop emergency pump, operating system and control computer are all domestic well-known brands, and the core components are imported. Stable commutation, flexible and convenient operation; outriggers and working arms are interlocked, safe and reliable, to prevent misoperation.
If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

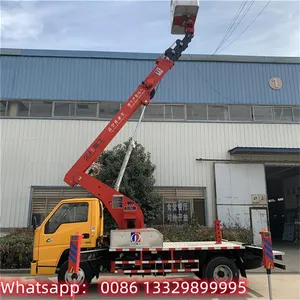

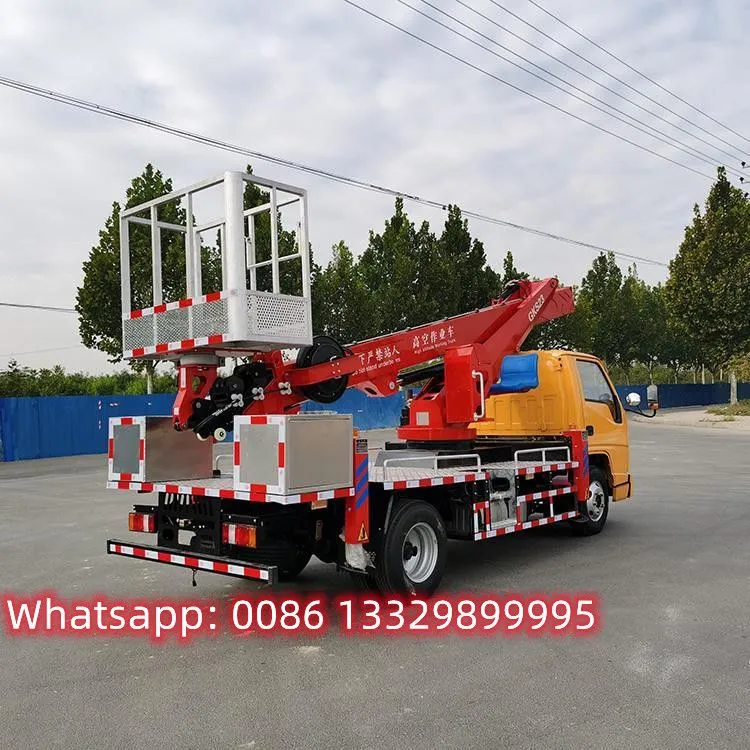

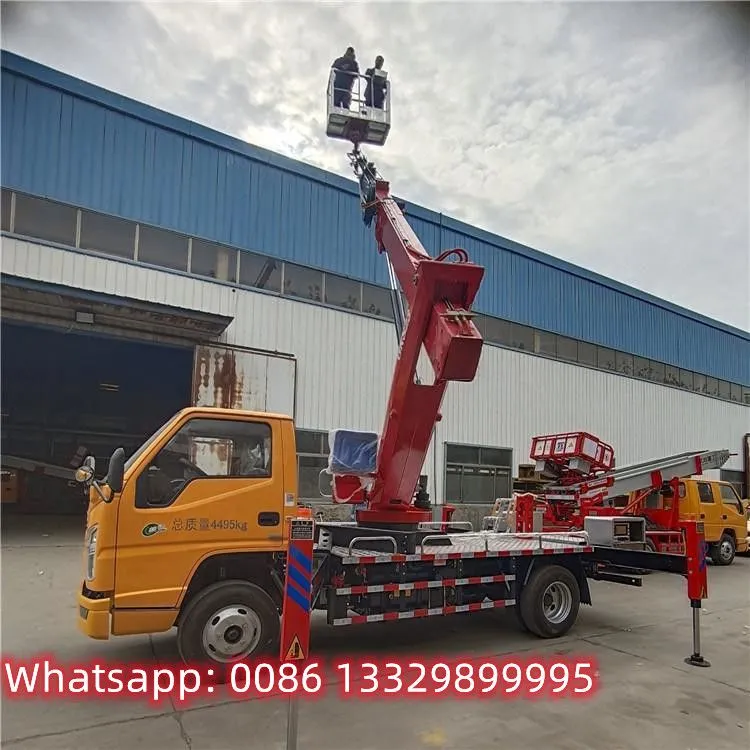

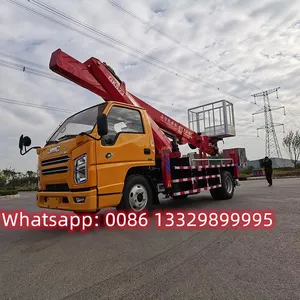

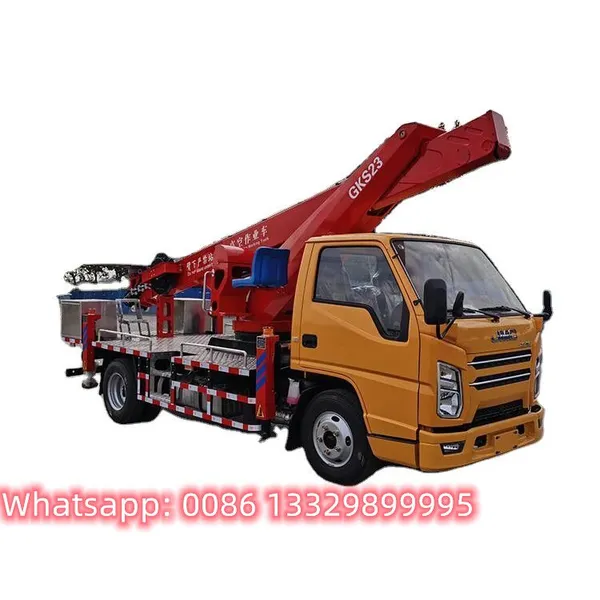

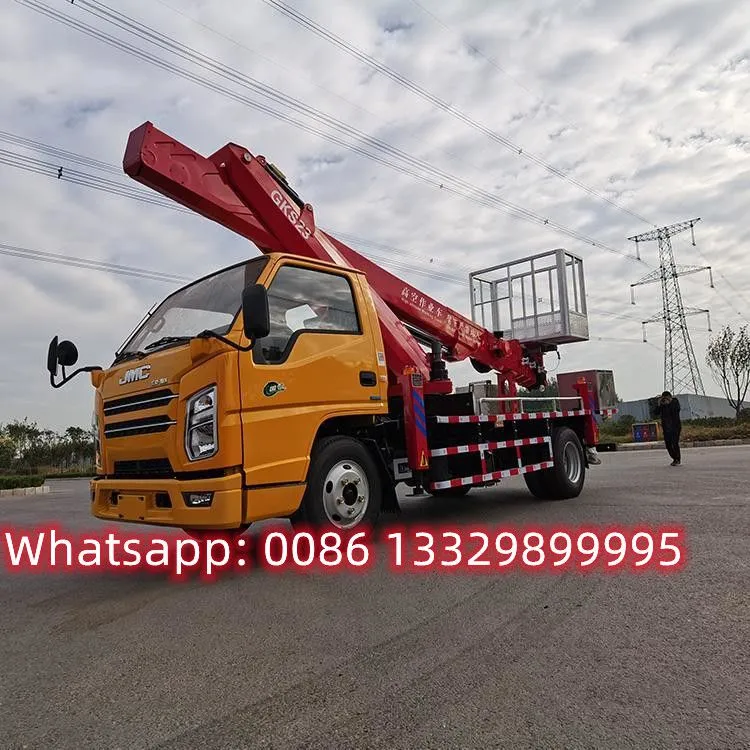

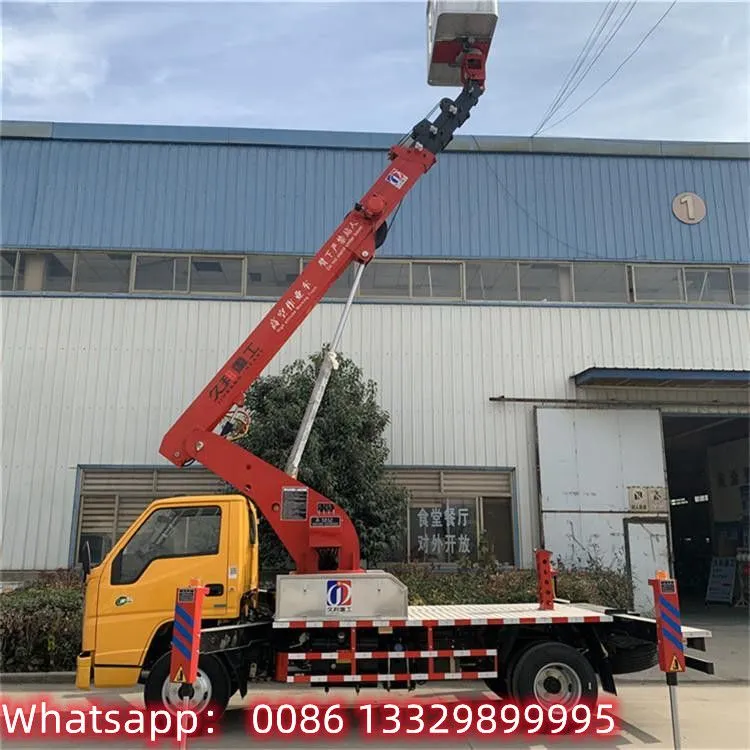

More pictures of JMC brand 21m telescopic aerial working platform truck is as below.
