Dongfeng 4*2 LHD 14-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.
The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.
The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.
Main technical parameters of DONGFENG double cabs 14m working height aerial working platform truck is as below
Item |
Name |
model/specification |
1 |
Truck brand |
CLW brand truck mounted aerial working platform for sale |
2 |
Truck model |
CLW5060JGKD6 |
3 |
Truck chassis model |
EQ1075DJ3CDF |
4 |
Overall dimension(L*W*H)(mm) |
7400×2000×3100 |
5 |
Total mass(kgs) |
5520 |
6 |
Curb mass(kgs) |
5195 |
7 |
Wheelbase(mm) |
3308 |
8 |
Engine model |
H20-120E60 / 90kw 122hp |
9 |
Working parameters |
Max working height: 14m( person height:1.7m included) The distance between ground and working platform: 12.3m Max working range of the working platform≥6.46m Working range at the working platform max working≥2.05m Working height at the working platform max working range≥8.6m Max loading capacity of the working bucket: 200kgs
|
Working bucket |
Max loading capacity of the working bucket: 200kgs Working bucket dimension(L*W*H): 1200*600*1100mm |
|
Outriggers |
type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：3000mm |
|
hook |
Safety value mass≤900kg Max lifting height: 7.2m
|
|
Operation system |
Operation position: turntable， double working position operation of hanging bar-two operation systems Operation mode: electronic control operation
|
|
Hoarding and platform board |
Steel toolbox and hoarding, Pattern non-slip walking board, |
|
Boom structure mode |
3 sections folded boom |
|
Boom material |
Q345B Steel alloy structural steel |
|
Balance device |
External balance rod |
|
Slewing device |
Two-way 360° continuous rotation |
|
Safety device |
The outrigger cylinder is equipped with a hydraulic lock, and the working arm cylinder is equipped with a two-way balance valve. |
If you're interested in our aerial working plaform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

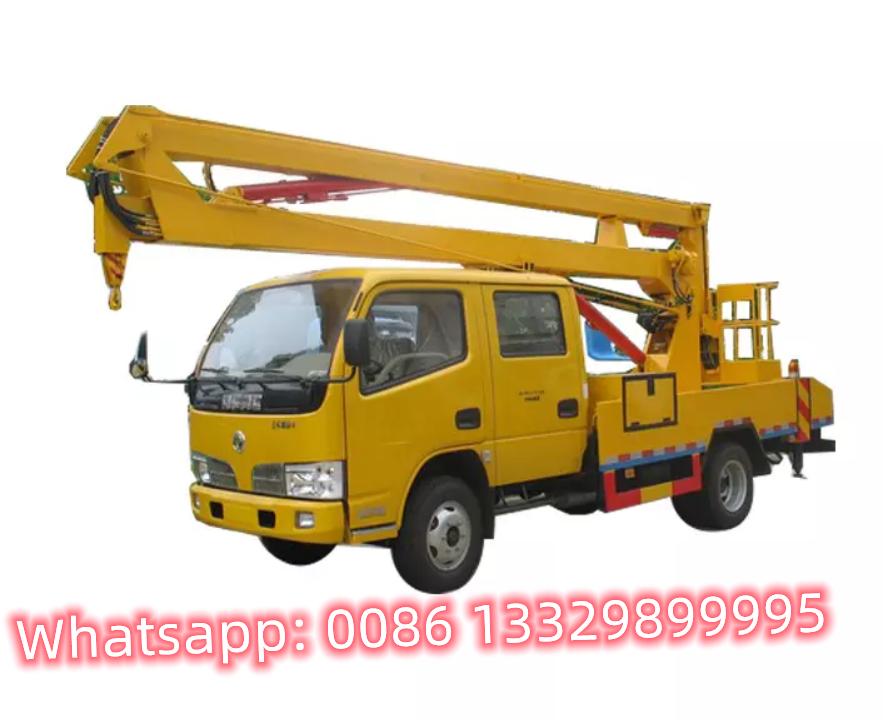

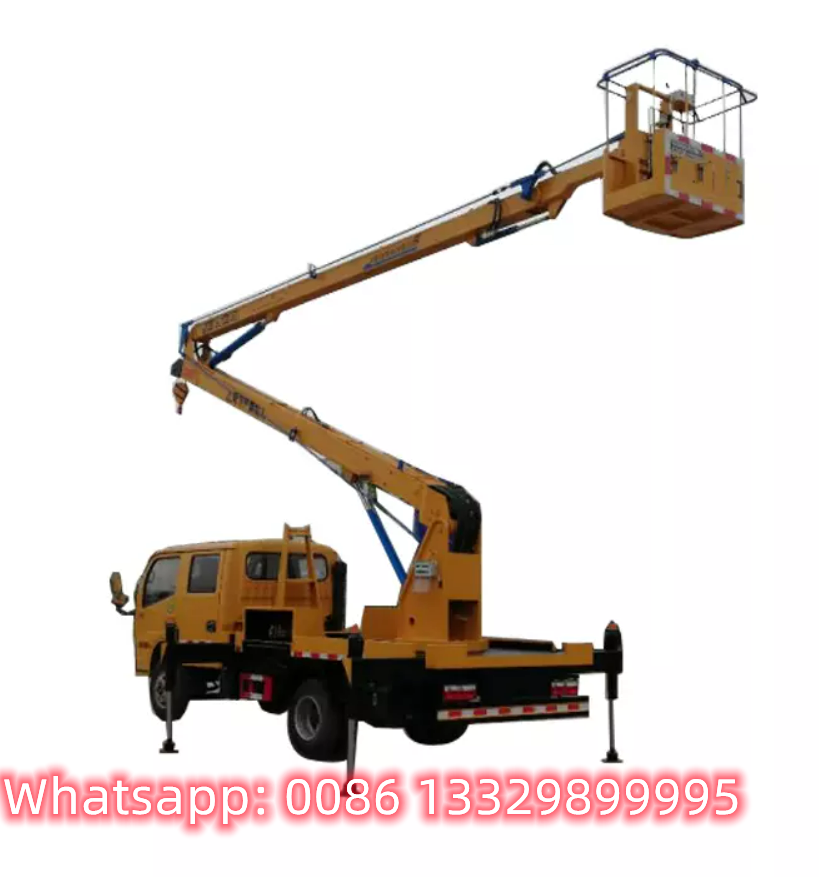

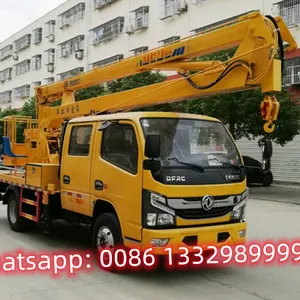

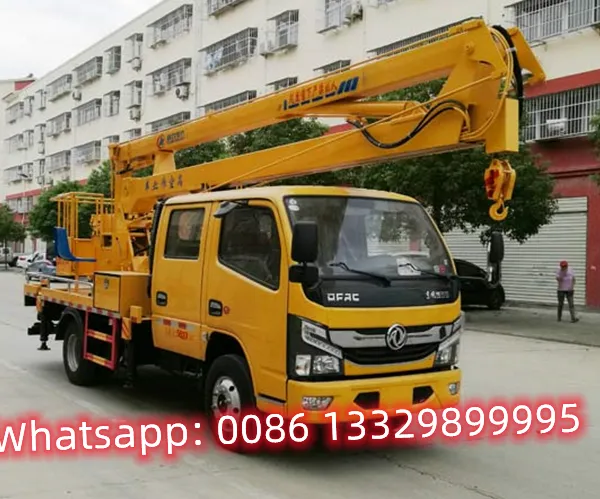

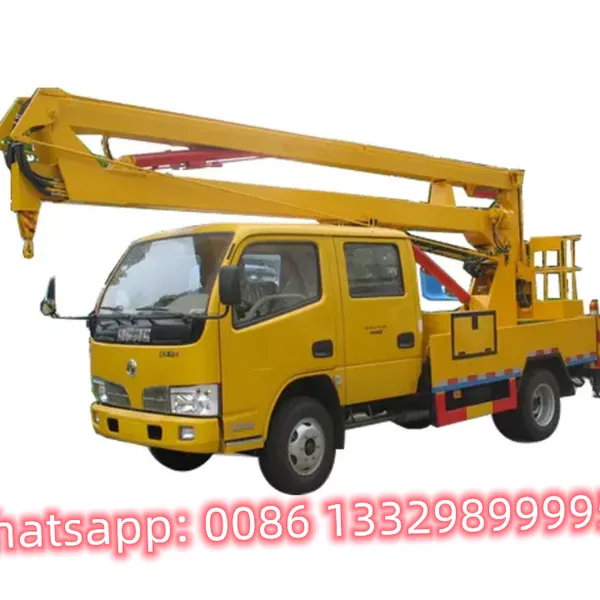

More pictures of DONGFENG double cabs aerial working platform truck is as below.
Aerial platform truck , which is also called aerial platform truck, truck mounted aerial work platform , aerial working truck, aerial operation truck, high altitude working truck, overhead work truck, aerial truck with basket, etc.
The hydraulic aerial working truck for sale is consisted of truck chassis, knuckle boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for streetlight maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Chengli Special Automobile Co.,Ltd as a professional aerial working platform truck supplier in China, the aerial platform truck working height is from 10 meter to 22 meter. It is mainly used for building construction, street lamp maintain, plant pruning,etc.
