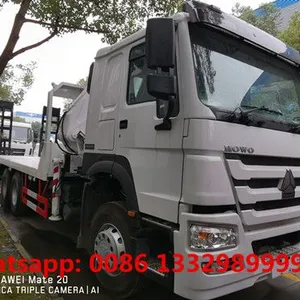

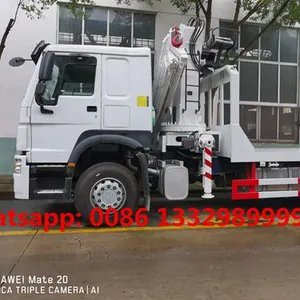

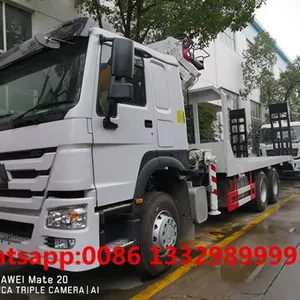

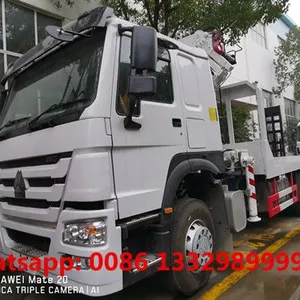

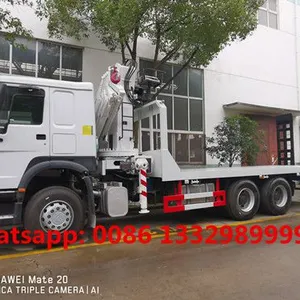

SINO TRUK HOWO 6*4 RHD 14tons flatbed truck with knuckle crane boom for sale
Customized SINO TRUK HOWO 6*4 LHD 336hp diesel flatbed truck with knuckle crane boom, adopts SINO TRUK HOWO 6*4 HW76 new face truck head, RHD(Right hand drive), 4325+1350mm wheelbase, HW19710 10 speed gearbox, HF7 7 front axle/ST16 16 rear axle, ZF8198 steering gear, 295/80R22.5 tires, etc.
The overall dimension of SINO TRUK HOWO 6*4 RHD flatbed truck with crane boom is 9300×2495×3025(mm); while the dimension(L*W*H) of the flatbed is 7200×2294(mm). And client choose 14T knuckle crane boom.
The specification of SINO TRUK HOWO 14T knuckle crane boom mounted on flatbed truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name |
SINO TRUK HOWO 6*4 RHD 14tons telescopic crane boom mounted on flatbed truck for sale |
|
Chassis type |
ZZ |
|
Parameters |
Overall dimension length/width/height (mm) |
11945×2500×3850,3750 |
Cargo body dimension (L*W*H)(mm) |
9300×2495×3025 |
|
GVW(kg) |
25000 (Kg) |
|
Kerb Mass(kg) |
11870 (Kg) |
|
Rated mass(kg) |
13000 (Kg) |
|
Approach angle/ Departure angle(mm) |
19/42 (°) |
|
Front suspension/rear suspension(mm) |
1500/2125 |
|
Fuel Type |
diesel |
|
Max Speed |
75 |
|
Engine |
Type |
WD615.93 |
Displacement/Power(kw) |
9726hp/213KW/290HP |
|
Manufacturer |
SINO TRUK HOWO |
|
Chassis |
Drive Type |
6*4 |
Wheelbase(mm) |
4325+1350 |
|
Tread(front/rear) |
2022;1830/1830 (mm) |
|
Transmission |
HW19710 10 HOWO 10 speed gearbox, |
|
Braking system |
Air braking |
|
Cab |
TRUK HOWO 6*4 HW76 new face truck head, RHD(Right hand drive |
|
Number of spring axle(front/rear) |
10/12 |
|
Tire Type |
295/80R22.5 tires |
|
Air-condition |
Choose to fix |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Flatbed dimension |
7200×2294(mm) |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
2mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install CLW brand 14T 4 sections knuckle crane boom |
|
Lifting mass(kgs) |
14,000kgs |
|
Lifting height(m) |
17m |
|
Working radius |
15.5m |
|
Remark |
Full hydraulic and full rotational |
|
The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

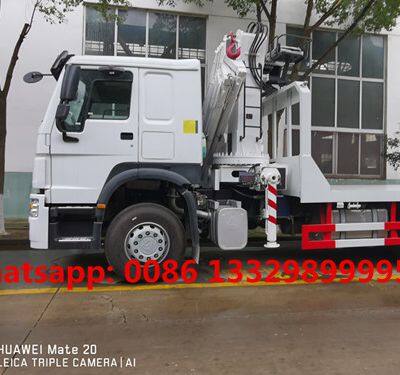

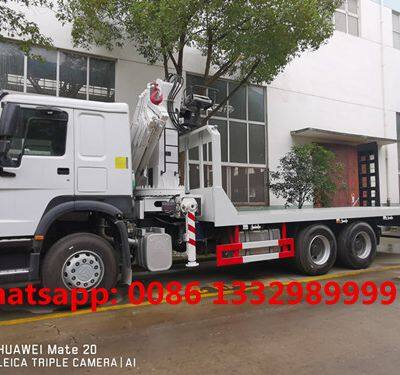

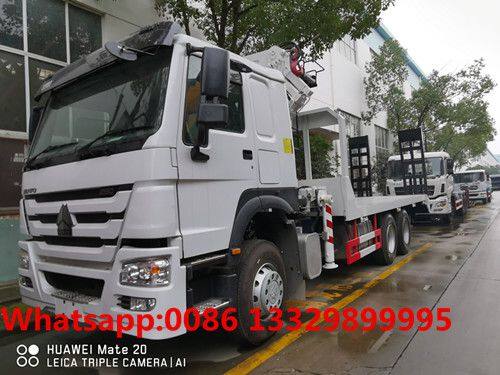

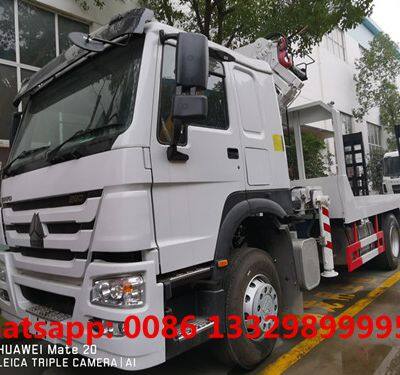

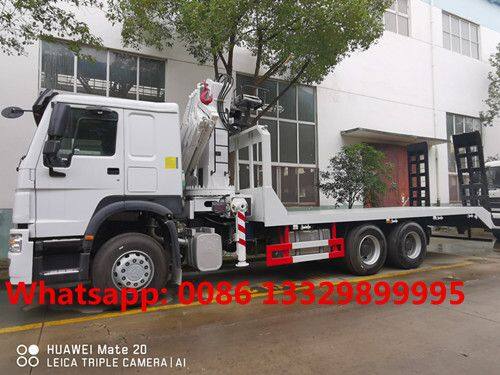

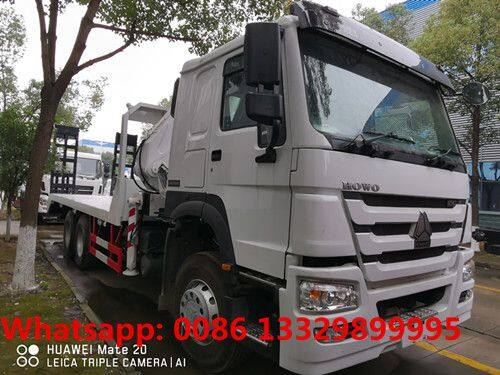

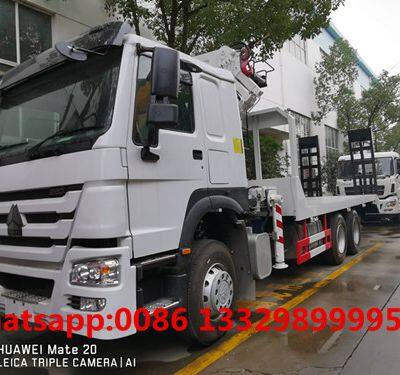

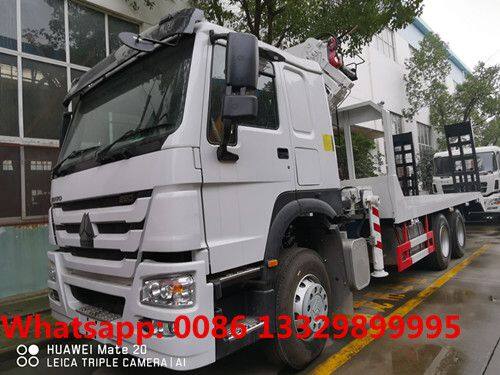

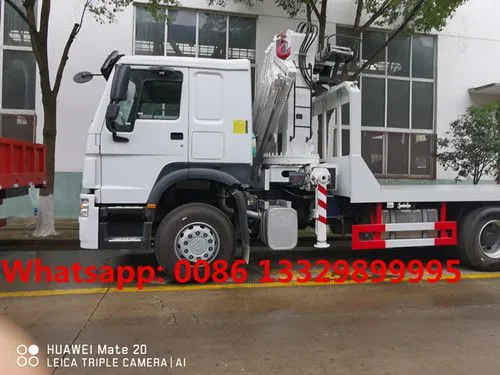

More pictures of SINO TRUK HOWO 4*2 LHD 10T flatbed truck with crane boom is as below.
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
