Factory sale brand new JMC high altitude operation truck with 16m working height for sale
- 20 Piece / Pieces per Month
- Shanghai, Qingdao, LIANYUNGANG, WUHAN
- T/T
- 25 days
- Japan brand ISUZU 14M-16M hydraulic aerial working platform truck for sale
- Factory sale good price Dongfeng D9 20m-22m hydraulic high altitude operation vehicle for sale
- HOT SALE! JMC brand diesel 21m telescopic type aerial working platform truck
- high quality and best price ISUZU brand 4*2 LHD diesel telescopic aerial working platform truck for sale
- Customized SINO TRUK HOWO 4*2 RHD 16M telescopic aerial working platform truck for sale,
- HOT SALE! Good price dongfeng 28m telescopic aerial working platform vehicle for sale
Product Details
Brand Name: | JMC | Place of Origin: | China | Model Number: | CLW5050JGKJ6 |
Condition: | New | Transmission Type: | Manual | Fuel Type: | Diesel |
Emission Standard: | Euro 4 | Dimensions (L x W x H) (mm): | 7300×1980×3100 |
Product Description
Item | Name | Model/type |
1 | Product brand | CLW-aerial working platform truck for sale |
2 | Product name | CLW5050JGKJ6 |
3 | Chassis model | JX1061TSGA26 |
4 | Max working height | 16m(person height 1.7m included) |
5 | Main technical parameters for working | The distance between ground and working platform≥14.3m Max working range of the working platform≥6.92m Working range at the working platform max working≥2.26 Working height at the working platform max working range≥9.2m Max loading capacity of the working bucket: 200kgs |
Outriggers | type:H type outriggers Nos.:4 Operating way:Independently adjustable and can also be linked Horizontal span:2680mm Longitudinal span:2960mm | |
Hook | Max lifting mass ≤1000kg,Safety value: 800kg Max lifting height: 7.2m | |
Main operation | Operation position: turntable, double working position operation of hanging bar Operation mode: Manual hydraulic or electronic control operation | |
6 | Hoarding and platform board | Steel toolbox and hoarding, Pattern non-slip walking board, |
7 | Boom structure | 3 sections folded crane boom |
8 | Slewing device | Two-way 360° continuous rotation |
9 | Engine model | JX4D30B6H jiangling 85KW/115hp |
10 | Overall dimension(L*W*H) | 7300×1980×3100 |
11 | Total mass | 5450kgs |
12 | Curb mass | 5125kgs |
13 | wheelbase | 3360mm |
JMC brand 16m working height aerial working platform truck adopts JMC double cabs driver cab with original air conditioner and power steering, JX4D30B6H jiangling 85KW/115hp Euro Ⅵ diesel engine, 7.00R15 Rail tires, 5 speed manual gearbox, 3360mm wheelbase, oil cut braking, ABS, etc
Performance characteristics of JMC 16 m working height folded truck mounted aerial working platform is as below.
JMC 4*2 LHD 16-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.
The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.
The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.
If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

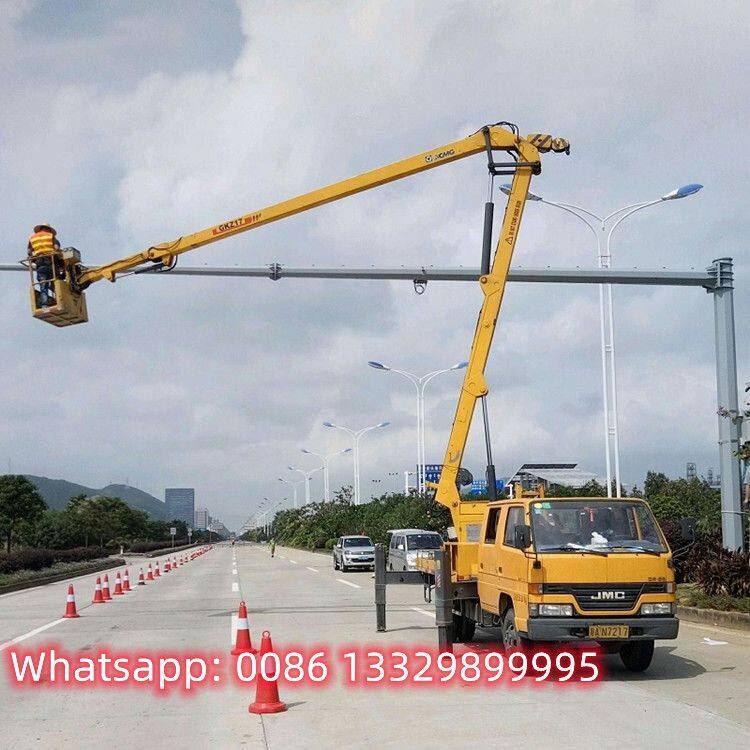

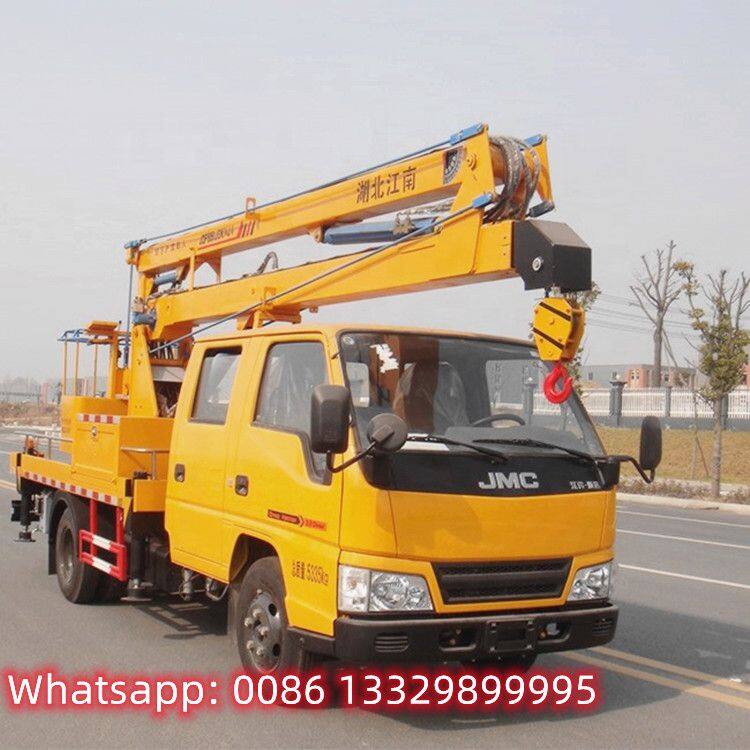

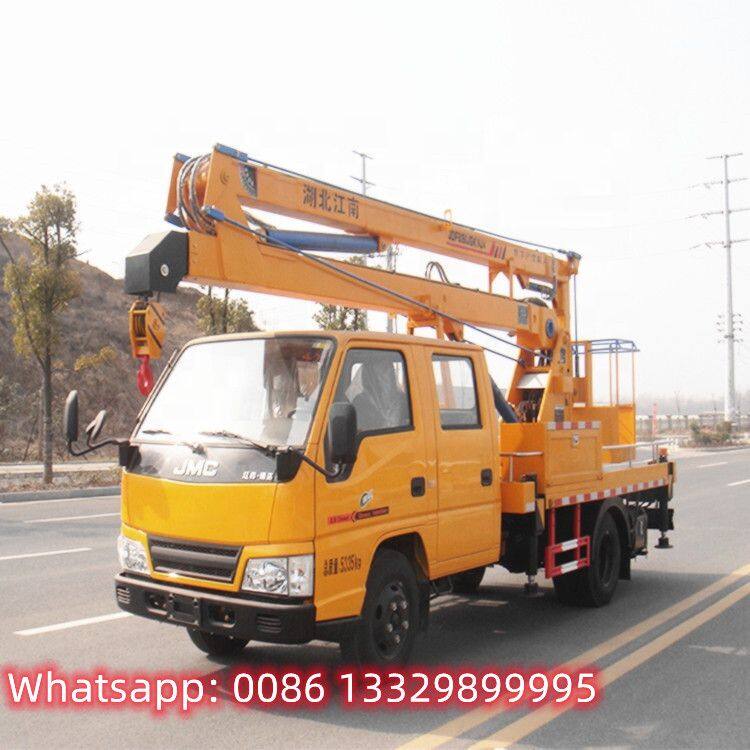

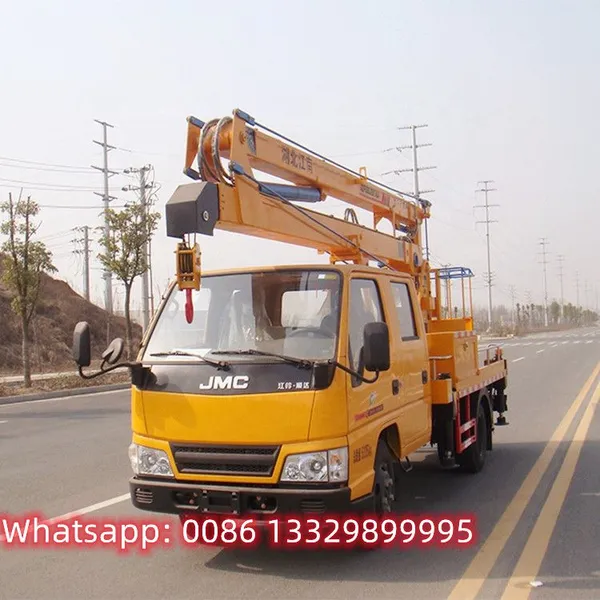

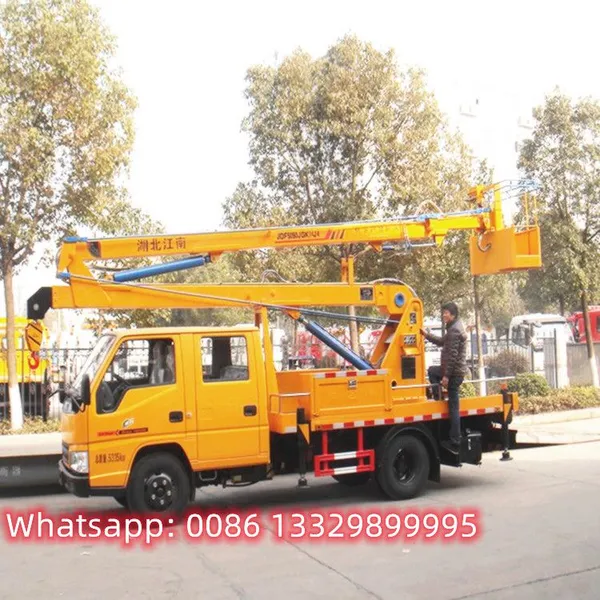

more pictures of JMC brand double cabs 16m working height overhead platform truck is as below.
JMC brand aerial working platform truck for sale
The technical advantages of CLW brand truck mounted aerial working platform truck is as below
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.
2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.
4. The working bucket is equipped with night operation lights to make night operation safer.
5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.
7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
