HOT SALE!Dongfeng D9 190hp diesel 5tons cargo truck with crane for sale
DONGFENG D9 5T cargo truck with crane, adopts dongfeng D9 one row and a half D9 luxurious driver cab, 4500mm wheelbase, 9.00R20 rail tires, fastgear 8 speed gearbox, 3.9T front axle/8T rear axle, 250mm double layers boom, etc.
And the cargo body box dimension (L*W*H): 5200×2350×550,600(mm); and the overall dimension（L*W*H） of dongfeng D9 cargo truck with crane is 8400×2500×3600(mm）.
Clients choose to install high quality CLW/XCMG brand 6.3tons/8tons telescopic crane boom mounted on dongfeng D9 cargo truck.
Main technical parameters of Dongfeng D9 190hp diesel cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name |
Dongfeng D9 190hp diesel 6.3tons telescopic crane mounted on truck for sale |
|
Chassis type |
EQ1185 |
|
Parameters |
Overall dimension length/width/height (mm) |
8400×2500×3600 |
Cargo body dimension (L*W*H)(mm) |
5200×2350×550,600 |
|
GVW(kg) |
15800 (Kg) |
|
Kerb Mass(kg) |
10500 (Kg) |
|
Rated mass(kg) |
7305(Kg) |
|
Approach angle/ Departure angle(mm) |
19/11 (°) |
|
Front suspension/rear suspension(mm) |
1260/2640 (mm) |
|
Fuel Type |
diesel |
|
Max Speed |
105 |
|
Engine |
Type |
B170 33 |
Displacement/Power(kw) |
5900ml/140KW/190hp |
|
Manufacturer |
Dongfeng Cummins Engine Co.,Ltd |
|
Type |
6-in-line inter-cooling; intercooling |
|
Chassis |
Drive Type |
4×2 |
Wheelbase(mm) |
4500 |
|
Tread(front/rear) |
1862/1806 (mm) |
|
Transmission |
Fastgear 8 speed transmission |
|
Braking system |
Air braking |
|
Cab |
Dongfeng D9 one row and a half driver cab |
|
Number of spring axle(front/rear) |
8/10+7 |
|
Tire Type |
10.00R20 tires |
|
Air-condition |
Choose to fix |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Cargo body dimension |
5200×2350×550,600 |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
3mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install XCMG Brand 3/4 sections telescopic crane boom |
|
Lifting height |
10.8m/12.8m |
|
Working radius |
8.8m/11.2m |
|
Aerial operation seat |
Yes |
|
Hydraulic operation |
Yes, full hydraulic operation |
|
Full rotation |
Yes, full rotation |
|
The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

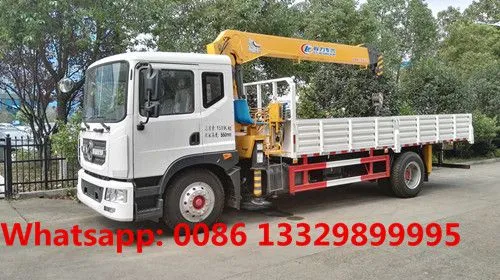

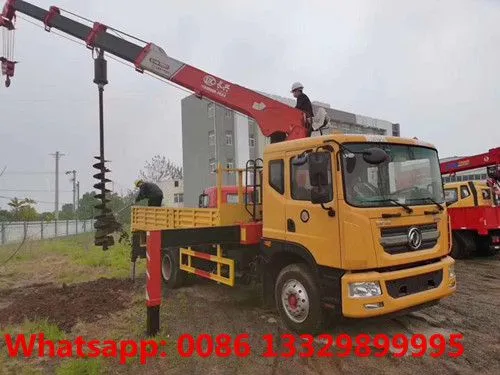

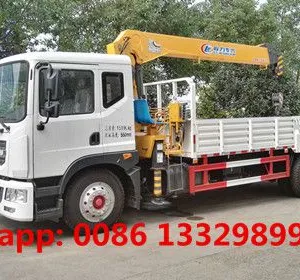

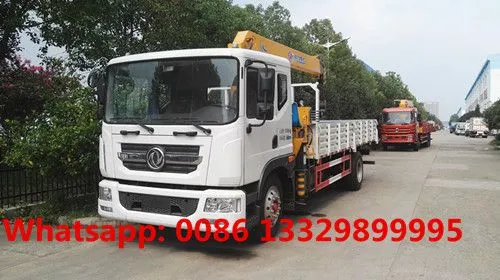

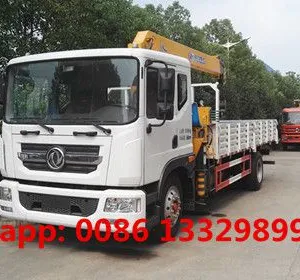

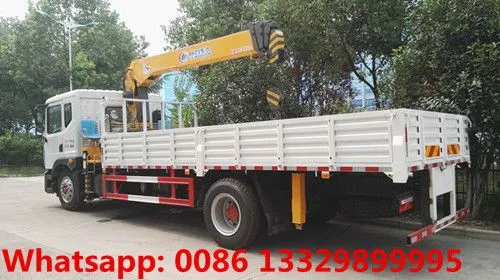

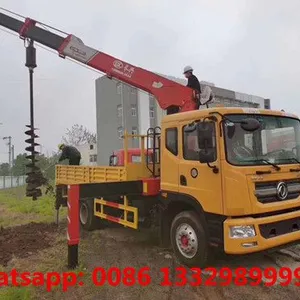

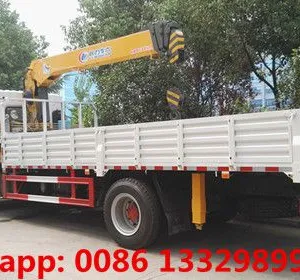

More pictures of dongfeng D9 5Tcargo truck with crane is as below.
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc. The hot sale line is 0086 13329899995.
