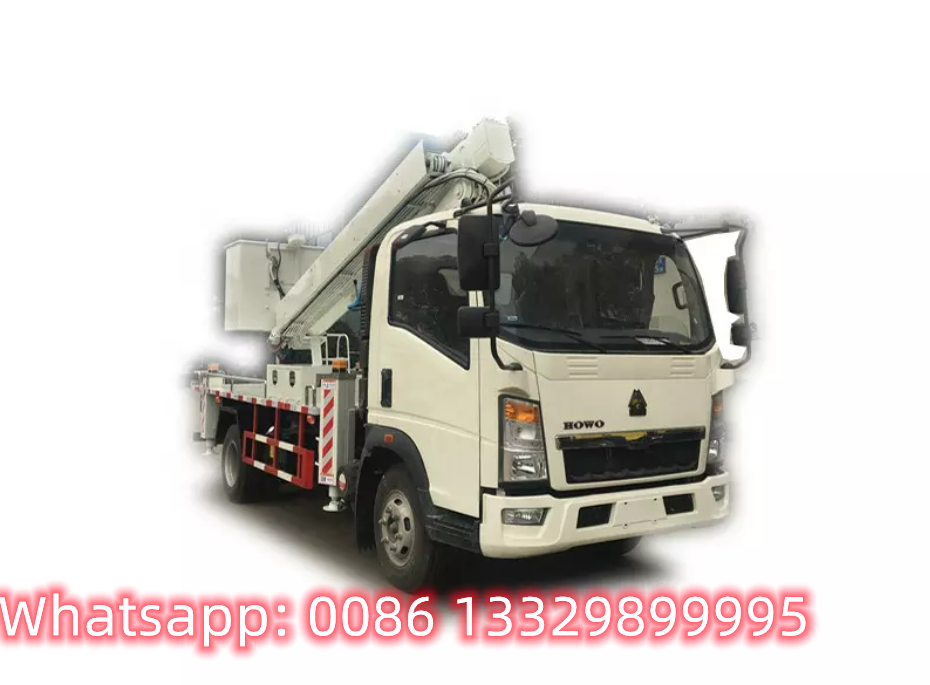

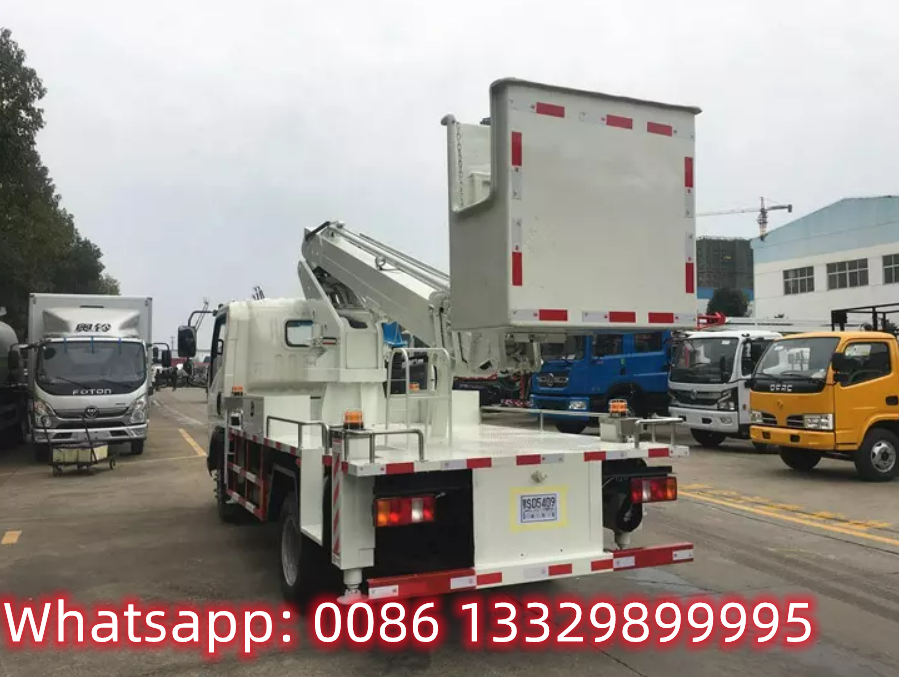

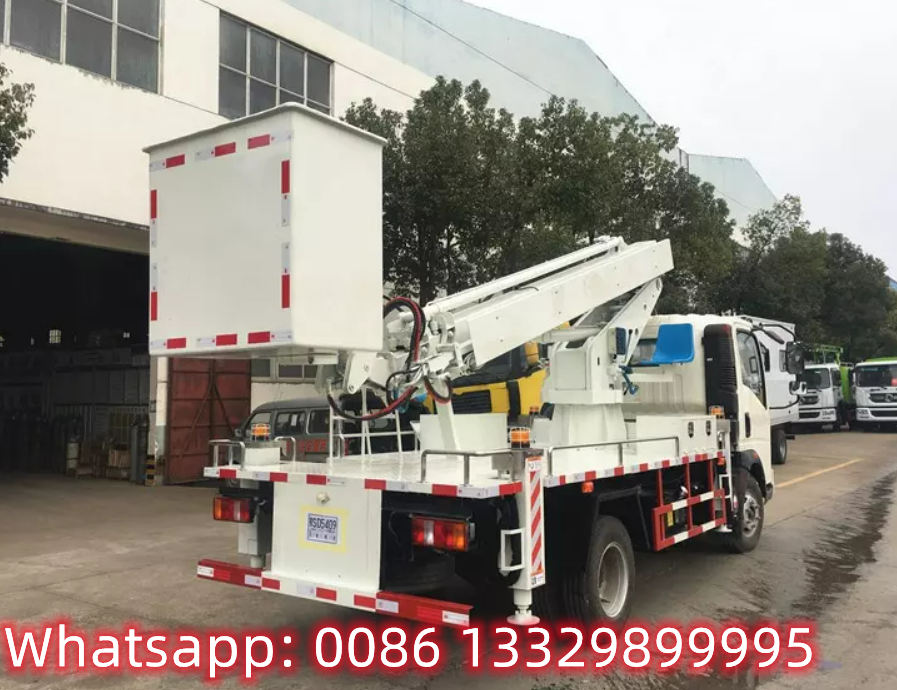

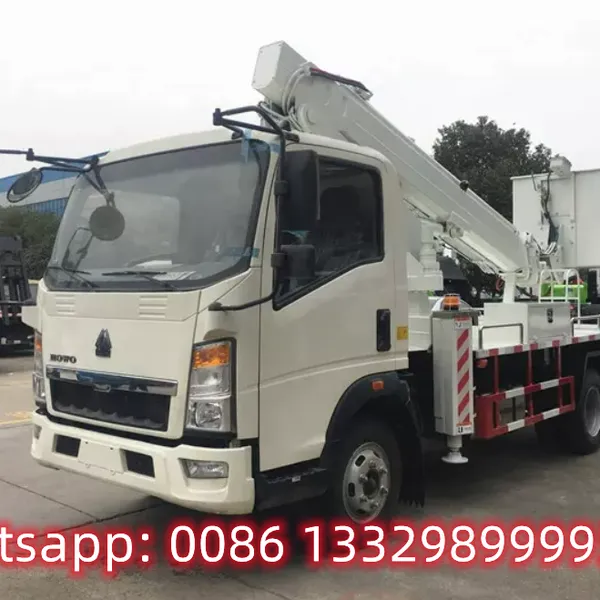

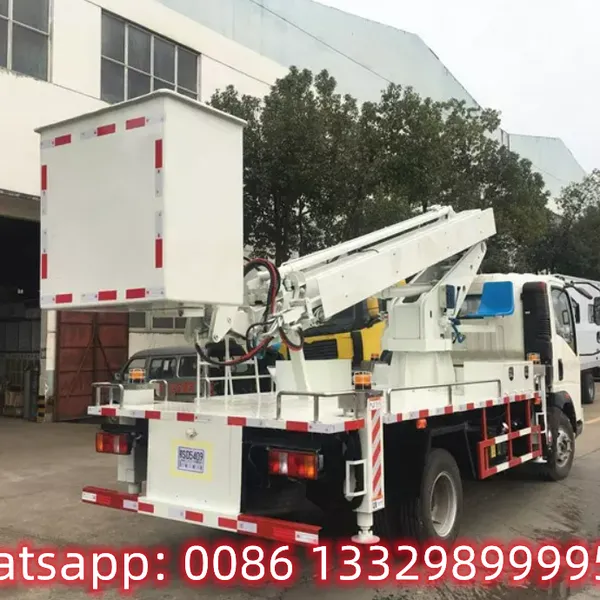

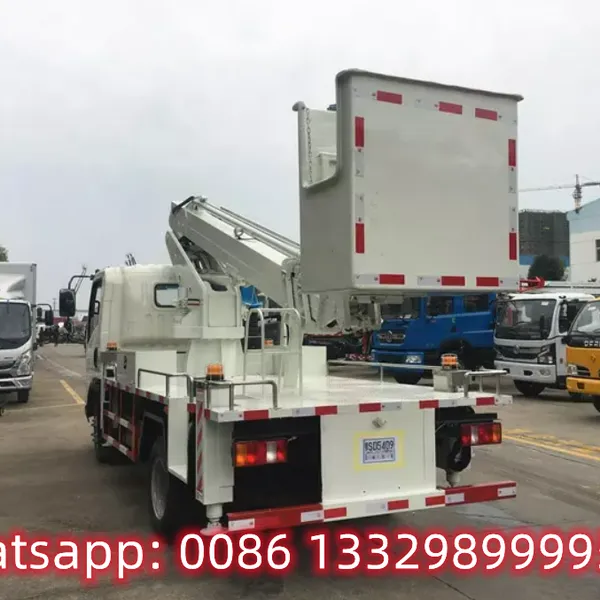

Customized SINO TRUK HOWO 4*2 RHD 16M telescopic aerial working platform truck for sale,

Product Name

SINO TRUK HOWO brand 4*2 RHD  telescopic overhead working truck for sale(16m)

Gross Vehicle Weight (kg)

4495(Kg)

Curb Weight (kg)

4300 (Kg)

Overall Dimension(mm)

5995×2250×3300(mm)

Working Height(m)

16m

Cab Allowed Persons

3

Axle No.

2

Wheelbase (mm)

3360mm

Chassis   Technical Parameter

Chassis Model

ZZ1047

Chassis Name

Truck Chassis

Chassis Brand

SINO TRUK HOWO brand

Manufacturer

SINO TRUK HOWO    company

App./ Dep. Angle(º)

18/15(°)

Tire Spec.

7.00 rail tires

Leaf Spring No.

,11/9+7

Front/rear suspension (mm)

1065/2045(mm)

Fuel Type

Diesel

Front/rear tread(mm)

1160/1235(mm)

Drive Type

4x2

Driver cab

HOWO 1880mm   single driver cab （RHD）

Steering Type

Power steering

Gear Box

6 speed gearbox, Manual

Brake

Air cut brake

FUEL type

Diesel

Max speed(km/h)

95km

Front/rear axle

2.4ton/4.2ton

Engine   Technical Parameter

Engine Model

YN4102QBZL

Emission Standard

Euro Ⅲ

Displacement  ( ml )

3760 ml

Power (KW)

85KW/115hp

Work platform parameter

1. the rated loading capacity of the high altitude bucket   ≤200㎏,   while the   dimension of the bucket is 1100X650X1150 (mm).

2, 3 sections quadrilateral telescopic crane   boom

3, max working range is 9.1m.

4, max working height is 16m

5, working range is 4.4m at the max   working height

6, 360°full rotation.

7, front V type outriggers and rear H type  outriggers, Horizontal span of the outrigger   is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm

8, Static   leveling, with the function of Oil Tank locking, Manual and remote control,   With emergency power unit.

9 the   truck color upon request, free to paint company logo
