Factory Sale Good Price Dongfeng D9 20m-22m Hydraulic High Altitude Operation Vehicle for Sale

The technical advantages of CLW brand truck mounted aerial working platform truck is as below.

1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.

2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.

3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.

4. The working bucket is equipped with night operation lights to make night operation safer.

5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.

6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.

7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.

Performance characteristics of dongfeng D9 20m working height folded truck mounted aerial working platform is as below.

Dongfeng D9 4*2 LHD 20-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.

The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.

The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.

If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.： 0086 13329899995.

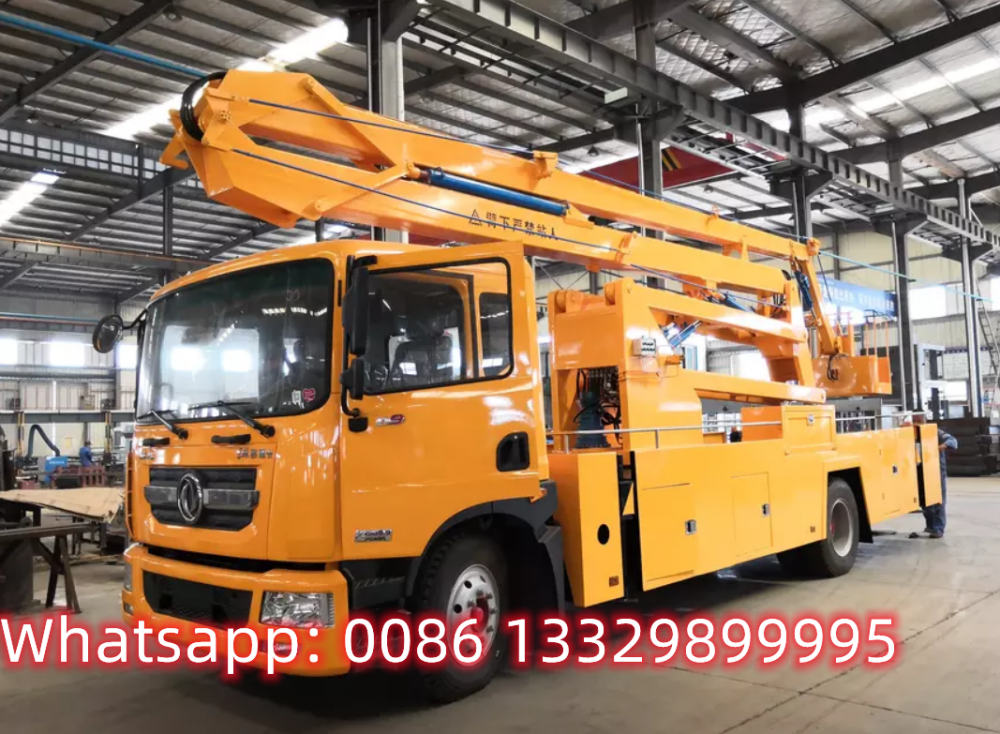

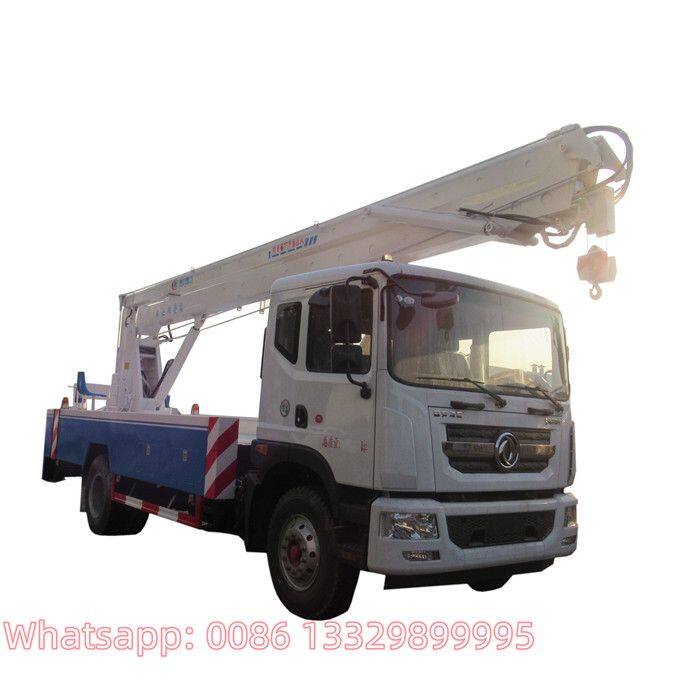

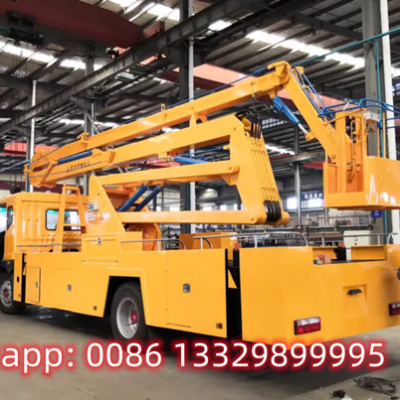

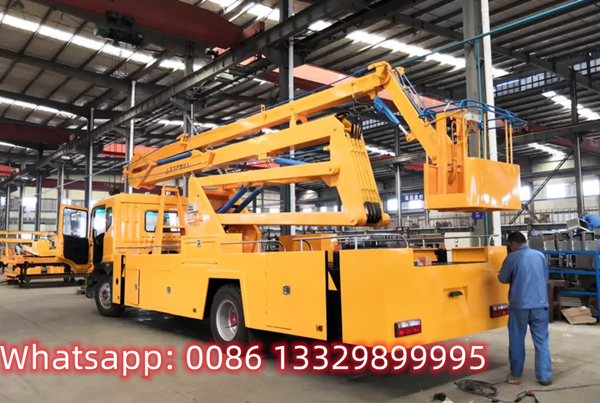

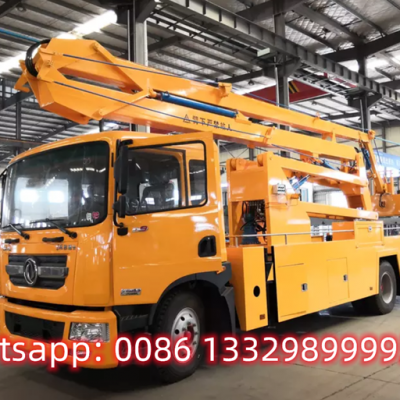

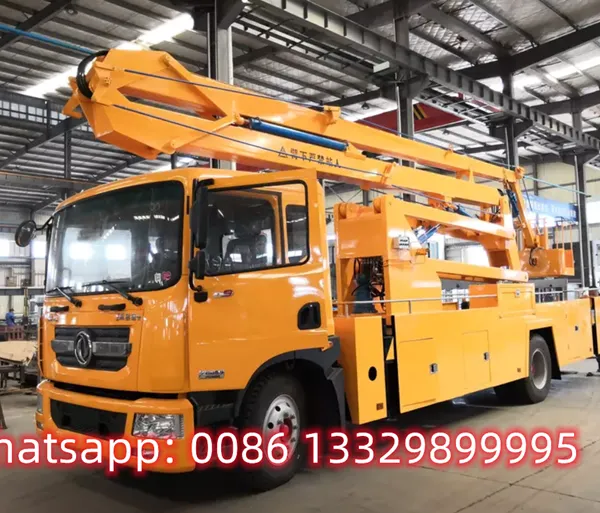

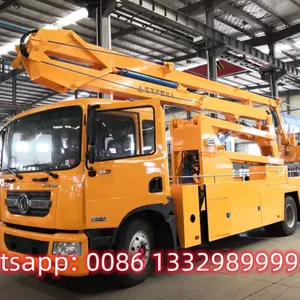

More pictures of dongfeng D9 20m hydraulic bucket truck is as below.

HOT SALE!DONGFENG D9 20m-22m aerial working platform truck for sale

main technical parameters of dongfeng D9 20m hydraulic bucket truck is as below.
