Isuzu Brand 4*2 LHD FTR 6.3T telescopic crane boom mounted on truck for sale
Customized ISUZU FVR 240hp diesel 6.3tons telescopic crane boom mounted on truck adopts ISUZU brand FVR truck chassis, 5800mm wheelbase, ISUZU MLD 6 speed gearbox, 6.3tons front axle/13tons rear axle, 10.00-20 nylon tires, ISUZU FVR one row and a half luxurious reversible driver cab with power steering, air cut braking and air conditioner, etc.
The overall dimension(L*W*H) of ISUZU Brand truck with crane is 9000×2500×3470(mm); while the cargo body box dimension(L*W*H) is 5550×2300×600(mm). Clients choose to install CLW Brand 5tons/6.3tons telescopic/knuckle crane boom.
The specification of ISUZU brand 6.3tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name |
ISUZU Brand 4*2 LHD 6.3tons telescopic crane boom mounted on truck for sale |
|
Chassis type |
QL5160XXYARFRY |
|
Parameters |
Overall dimension length/width/height (mm) |
9000×2500×3470 |
Cargo body dimension (L*W*H)(mm) |
5550×2300×600 |
|
GVW(kg) |
16000 (Kg) |
|
Kerb Mass(kg) |
10550(Kg) |
|
Rated mass(kg) |
5255(Kg) |
|
Approach angle/ Departure angle(mm) |
26/10 (°) |
|
Front suspension/rear suspension(mm) |
1335/1865 |
|
Fuel Type |
diesel |
|
Max Speed |
90 |
|
Engine |
Type |
6HK1-TCNG40 |
Displacement/Power(kw) |
7790ml/177KW/240hp |
|
Manufacturer |
ISUZU |
|
Chassis |
Drive Type |
4×2 |
Wheelbase(mm) |
5800 |
|
Tread(front/rear) |
1960/1855 (mm) |
|
Transmission |
ISUZU MLD 6 speed gearbox, manual |
|
Braking system |
Air braking |
|
Cab |
Isuzu FVR one row and a half luxurious driver cab |
|
Number of spring axle(front/rear) |
9/7+7 |
|
Tire Type |
10.00-20 16PR |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Cargo body dimension |
5550×2300×600 |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
2mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install CLW brand 5T/6.3T telescopic/knuckle crane boom |
|
The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/wechat/Mob.: 0086 13329899995.

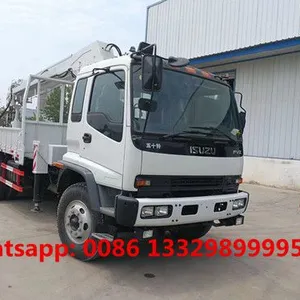

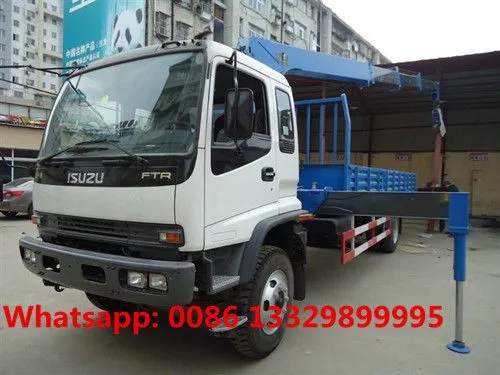

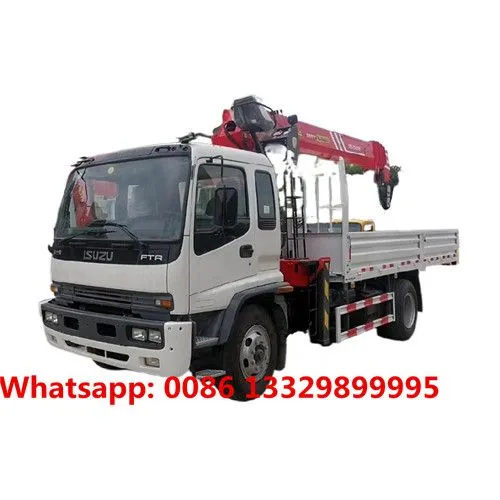

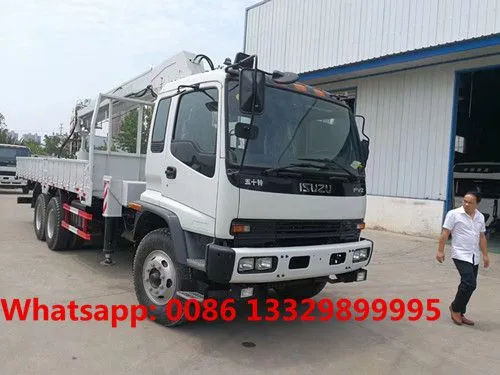

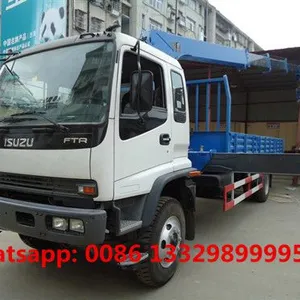

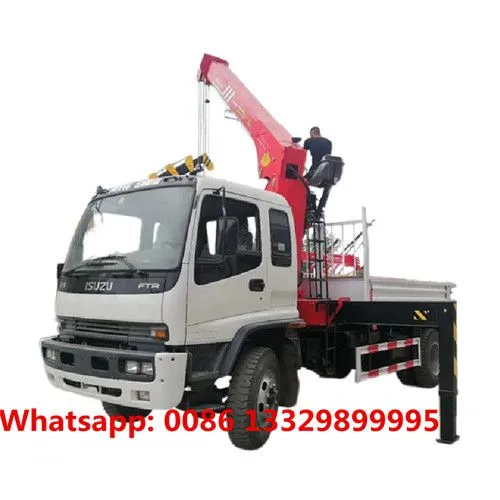

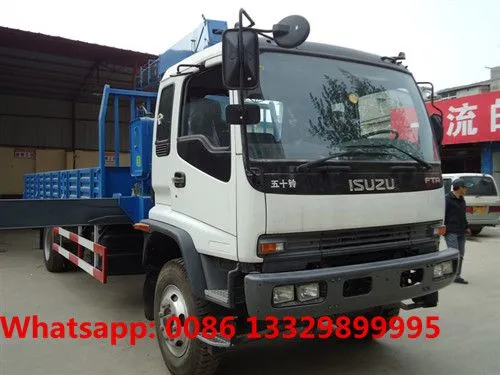

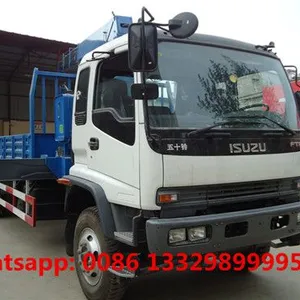

More pictures of ISUZU FTR truck with crane is below.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes.
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
