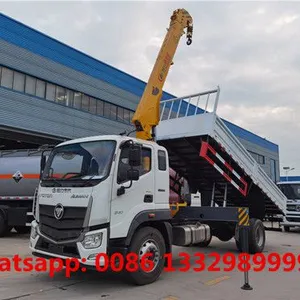

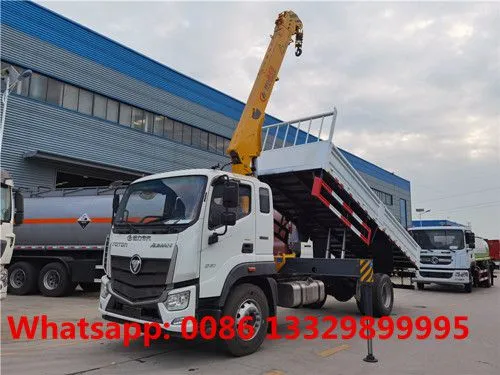

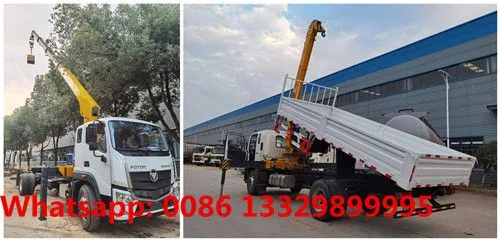

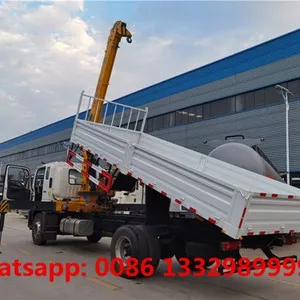

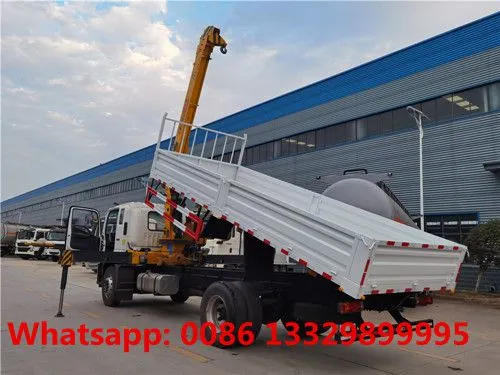

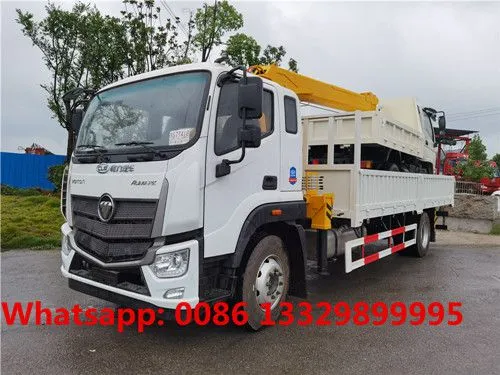

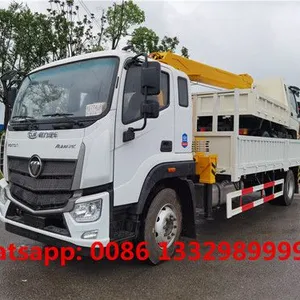

Good price Customized FOTON 8T telescopic crane boom mounted on cargo truck for sale,

Chassis type

BJ1188

Parameters

Overall dimension length/width/height (mm)

9000×2500×3580(mm)

Cargo body dimension (L*W*H)(mm)

6000×2400×550,600

GVW(kg)

18000(Kg)

Kerb Mass(kg)

12000(Kg)

Approach angle/ Departure angle(mm)

18/9 (°)

Front suspension/rear suspension(mm)

1270/2580 (mm)

Fuel Type

 diesel

Max Speed

90

Engine

Type

YC6A240-33

Displacement/Power(kw)

9755ml/177KW/240hp

Manufacturer

YUCHAI

Chassis

Drive Type

4*2

Wheelbase(mm)

5150

Tread(front)

3050

Tread(rear)

1820

Rear axle

10tons rear   axle

Transmission

8 speed   gearbox, manual

Tire Type

11R22.5

Upper part(cargo van and crane boom) main parameters

Upper body

Cargo body dimension

6000×2400×550,600 (mm)

Material

Carbon steel

Side sheet thickness

3mm thickness

Bottom sheet thickness

3mm thickness

Painting

Upon request

Crane boom main parameters

Crane boom

Choose to install XCMG 8tons 4 sections telescopic crane   boom

Working radius

Approximate 11.8m

Max lifting height

Approximate 13.5m

The color of the whole truck is upon request.
