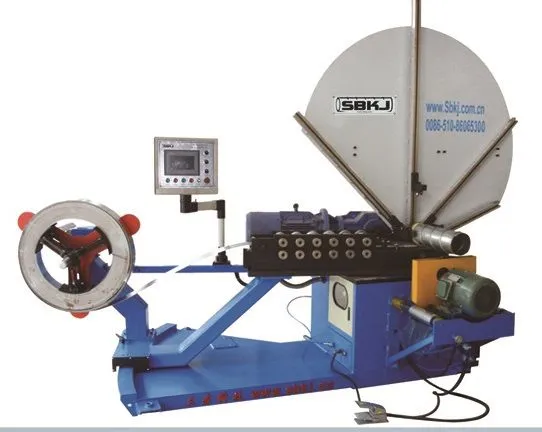

The 1500C spiral duct forming machine is used to turn galvanized sheets, stainless steel, and aluminum into a spiral pattern, and further forming it into round ducts. This model is exceptionally economical and designed to meet basic duct production needs, making them ideal for startup manufacturing plants.
The production diameter for range between 80 to 1500mm, SBTF-1500C works on material with a thickness within 2mm.
Advantages:
1 .The machine is equipped with optic-electro sensor switch and offer an automatic cutting and stop mode.
2. Saw blades for cutting. The SBTF-1500C is equipped with saw blades for cutting and plasma cutting, with a diameter range of 80 to 1500mm.
3. 38m/min variable production speed. Maximum feeding speed is up to 38m/min

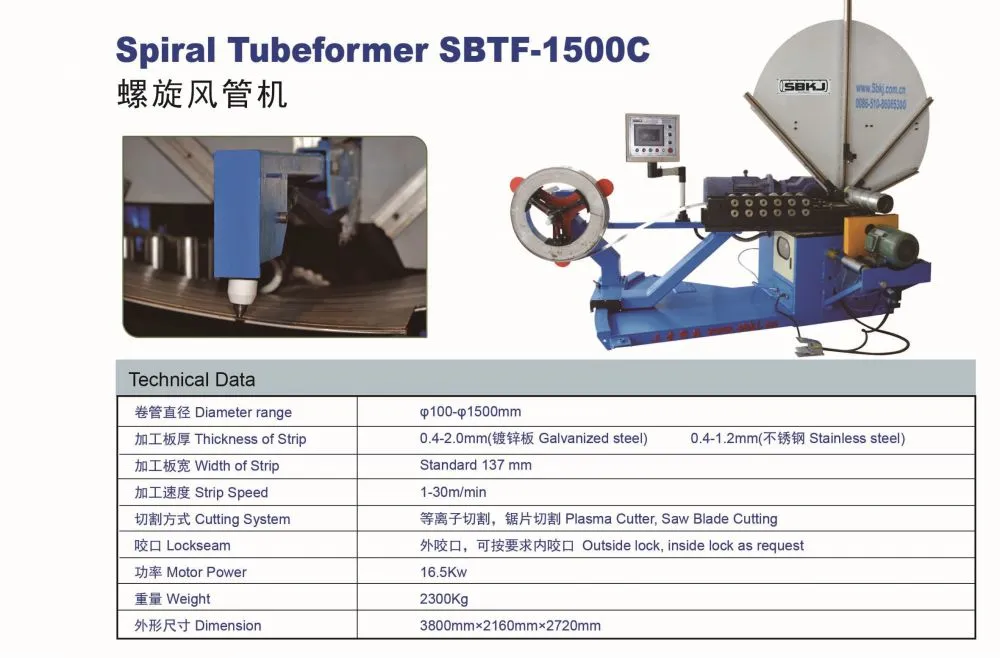

Parameter:
Diameter |
Φ100-Φ1500mm |
Thickness Of Strip |
Galvanized Steel Sheet 0.4-2.0mm； Stainless Steel 0.4-1.2mm |
Width Of Strip |
137mm |
Stip Speed |
1-30m/Min |
Motor Power |
16.5 Kw |
Weight |
2300Kg |
Dimension |
3800mm×2160mm×2720mm |
Cutting system |
Saw cutter and plasma cutter |
