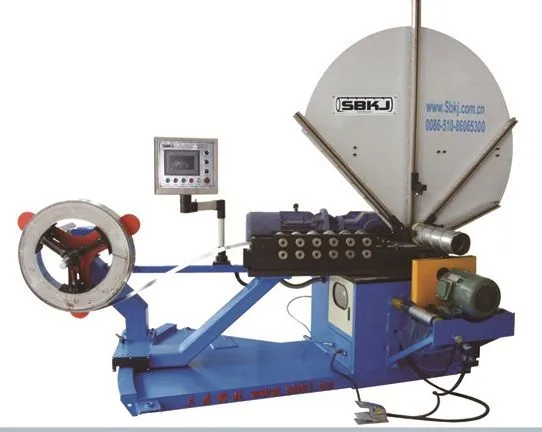

SPIRAL TUBEFORMER SBTF-1500C
1. Lock seam can be inner or outer lock for option.
2. PLC control system with button operation
3. Fast change steel duct mould system.
Advantages:
1 .The machine is equipped with optic-electro sensor switch and offer an automatic cutting and stop mode.
2. Saw blades for cutting. The SBTF-1500C is equipped with saw blades for cutting and plasma cutting, with a diameter range of 80 to 1500mm.
3. 38m/min variable production speed. Maximum feeding speed is up to 38m/min
Description
1. Lock seam can be inner or outer lock for option.
2. PLC control system with button operation
3. Fast change steel duct mould system.
4. Cutting system can be plasma and roller shear for different thickness
5. Various diameter range for optional choice
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Diameter |
￠100 mm – ￠1500mm |
|
Thickness of strip |
Galvanized steel |
0.4 -2.0mm |
Stainless steel |
0.4-1.2mm |
|
Width of strip |
Standard 137mm |
|
Cutting system |
Plasma cutler / Saw blade cutter |
|
Lock seam |
Outside lock seam, on the inside on request |
|
Power |
Mainframe |
11 kw |
Cutting power |
4 kw |
|
Weight |
2300kg |
|
Dimension |
3800 mm×2160 mm×2720mm |
|
