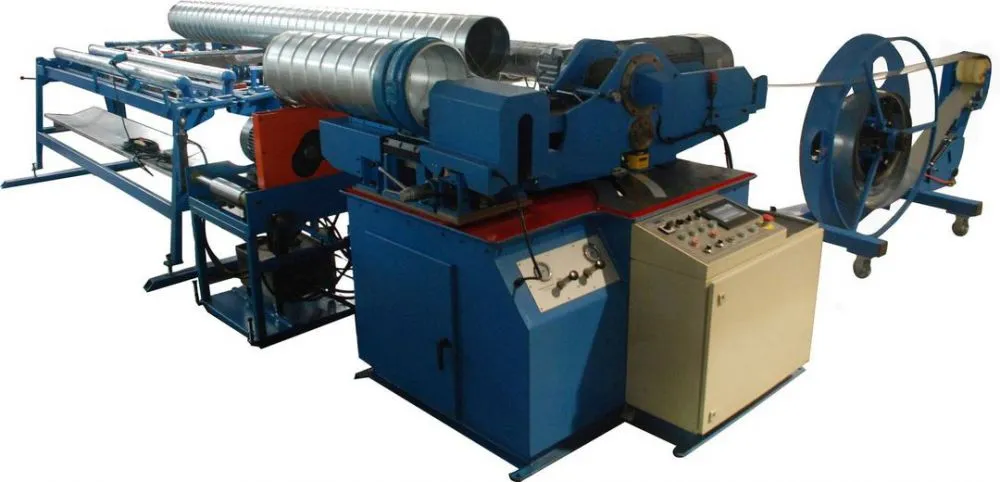

SPIRAL TUBEFORMER SBTF-1602
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
Description
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs. The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation. The outstanding patented flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum.
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Diameter |
￠80 mm – ￠1600mm |
|
Thickness range |
Galvanized steel |
0.4 -1.3mm |
Stainless steel |
0.4-0.8mm |
|
Aluminum |
0.4-1.3mm |
|
Strip width |
Standard 137mm |
0.4-1.0 mm |
Standard 140mm |
1.1-1.3 mm |
|
Lock seam |
Outside lock seam, inside lock as request |
|
Corrugations |
Either one or two beads (Optional) |
|
Cutting system |
The patented flying slitter |
|
Options |
Corrugated unit |
|
Weight |
2900kg |
|
Dimension |
Main machine |
1900*2050*1500mm |
Decoiler |
1780*1130*1250mm |
|
Run-out table |
2700*950*1200mm |
|
