Aluminum Duct Forming Machine

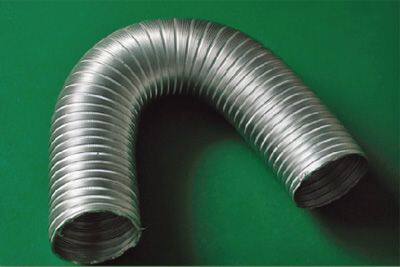

This flexible duct forming machine is special for Triple Lock Aluminum Flexible Ducts. The semi-rigid, lightweight, non-insulated air duct with triple lock is made of soft aluminum strips, spiral wound and mechanically connected to provide a tight and leak-proof lock seam.
Description
This flexible duct forming machine is special for Triple Lock Aluminum Flexible Ducts. The semi-rigid, lightweight, non-insulated air duct with triple lock is made of soft aluminum strips, spiral wound and mechanically connected to provide a tight and leak-proof lock seam. This spiral round flexible duct is used in HVAC applications to allow air to flow from the main duct to the outlet. Our duct winding machine can handle flexible duct diameter ranges made of aluminum, usually in the range of 80-500 mm, but we can provide machines with other diameter ranges according to customer requirements. It can be used directly on site, and the minimum thickness that can be used is 0.08mm. Optional flexible duct manufacturing machine with or without automatic cutter trace saw. The compression ratio of the aluminum flexible duct is 20-27%.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Diameter |
￠80-500mm |
Thickness |
0.08-0.15mm |
Width |
60mm |
Ripple |
4, 5, 6, 7 |
Working speed |
0-46m/min |
Lock form |
Double-decked tabby locking / Twill locking |
Power |
2Kw |
Weight |
260Kg |
Dimension |
2210×830×1530mm |
