Home > Products > Spiral Duct Forming Machine > Spiral Tubeformer
Spiral Tubeformer
- ShangHai
- T/T L/C
- 30 days
You May Like
Product Details
| Brand Name | SBKJ | Place of Origin | China | |
| Model Number | SBTF-2020 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

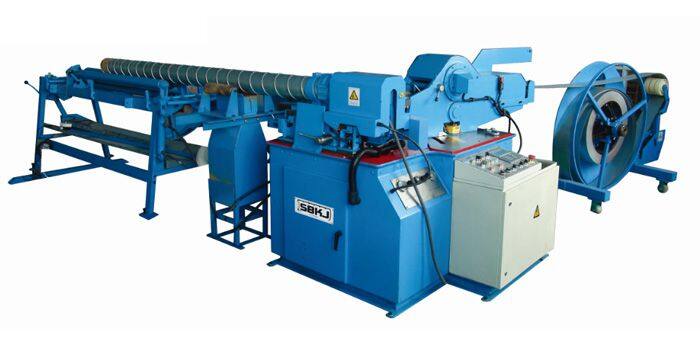

SPIRAL TUBEFORMER SBTF-2020
1. Slitter / Plasma cutting to preset length and required number of pieces.
2. The cut to length is made by the patented slitter (no noise, no hot sparks created by the saw blade, no leaning of the cut edge). Modern industrial proof computer control.
Description
1. Slitter / Plasma cutting to preset length and required number of pieces.
2. The cut to length is made by the patented slitter (no noise, no hot sparks created by the saw blade, no leaning of the cut edge). Modern industrial proof computer control.
3. Electrically driven, even with 2.0 mm strip coils, the 2020 continuously produces complete, tight spiral tubes that meet or exceed DIN, BS, Euronorm, and Smacna standards.
4. A perfectly fitted option for manufacturing reinforced beads for manufacturing tendon seat tubes or automatic manufacturing of METU flange notches during the manufacturing process is a further advantage of Tubeformer 2020.
5. The 2020 is the only machine for grumpy costume rental companies.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
| Diameter | ¢80 – ¢2500mm | |
Thickness of strip | Galvanized steel | 0.4-2.0mm |
Stainless steel | 0.4-1.2mm | |
Aluminum | 0.4-2.0mm | |
Width of strip | Standard 137mm | 0.4-1.0 mm |
Standard 140mm | 1.1-1.3 mm | |
Standard 150mm | 1.4-2.0 mm | |
Cutting system | Slitting cutter / Plasma cutter | |
Power | 22Kw | |
Weight | 3200kg | |
Dimension | Main machine | 2100×1800×1500mm |
Decoiler | 1780*1130*1250mm | |
Run-out table | 2700*950*1200mm | |
