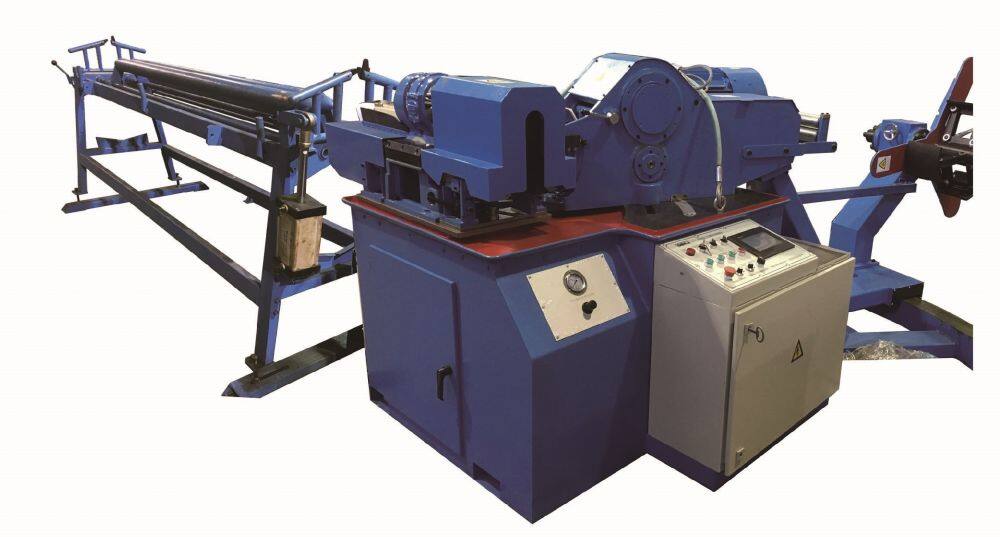

SPIRAL TUBEFORMER SBTF-1602B
1. Mold type, easy to adjust, there have own patent, change mold, better than belt mold.
2. More effective and save materials.
3. PLC control.
Description
1. Mold type, easy to adjust, there have own patent, change mold, better than belt mold.
2. More effective and save materials.
3. PLC control.
4. Occupies the small area and can be constructed on site.
5. The system can handle Galvanized sheet, Aluminum, and Stainless steel.
6. The equipment goes offline automatically.
7. It can produce different diameter spiral tube.
8. Corrugated unit is optional.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Diameter |
￠80 mm – ￠1600mm |
||
Thickness range |
Galvanized steel |
0.4 -1.3mm |
|
Stainless steel |
0.4-0.8mm |
||
Aluminum |
0.4-1.3mm |
||
Strip width |
Standard 137mm |
0.4-1.0 mm |
|
Standard 140mm |
1.1-1.3 mm |
||
Cutting system |
Slitting cutter |
||
Power |
Mainframe |
11kw |
|
Cooling water pump |
0.25kw |
||
Weight |
2900kg |
||
Dimension |
Main machine |
3500*2100*1680mm |
|
Run-out table |
2700*950*1200mm |
||
