Spiral Tubeformer SBTF-2020
- 10 Piece / Pieces per Month
- ShangHai
- T/T L/C
- 30 days
Product Details
Brand Name: | SBKJ | Place of Origin: | China | Model Number: | SBTF-2020 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

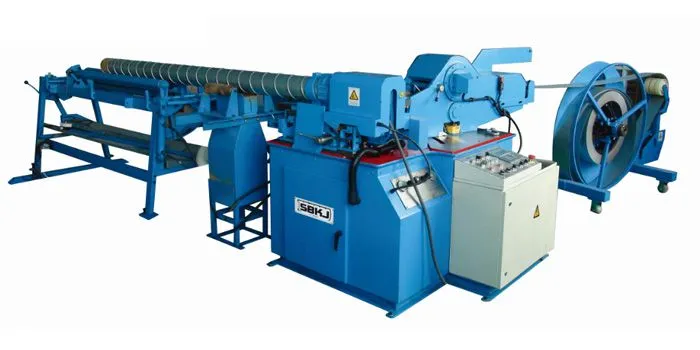

2020 Tube Forming Machine
The unique design is designed to meet the needs of special HVAC projects, but also to meet the needs of unique spiral duct applications used in other fields (mainly the industrial construction sector and the mining industry).
The SBKJ Tubeformer 2020 model is one of the most powerful and powerful spiral duct machines in the industry!
The unique design is designed to meet the needs of special HVAC projects, but also to meet the needs of unique spiral duct applications used in other fields (mainly the industrial construction sector and the mining industry).
Unique Features
» Cover the complete international standard size range up to 2500 mm in diameter
» Unique thick material capacity, galvanized steel up to 2 mm
» Enhanced mechanical transmission for heavy-duty applications
Feature
1. Slitter / plasma cutting of the tubes to the preset length and required number of pieces.

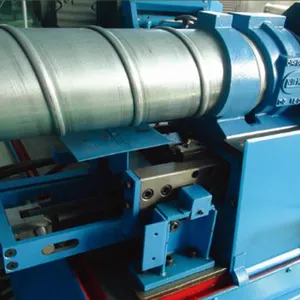

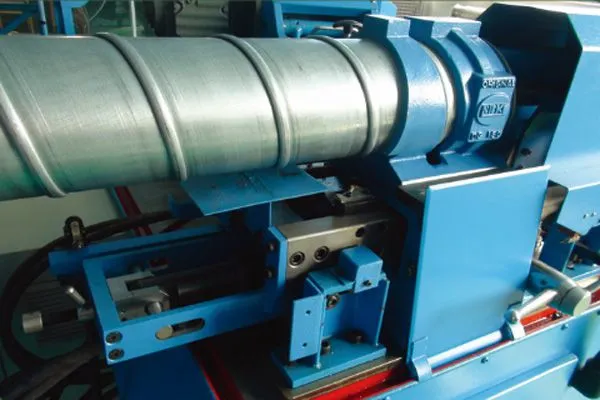

2. The cut to length is made by the patented slitter (no noise, no hot sparks created by the saw blade, no leaning of the cut edge). Modern industrial proof computer control.
3. The electric drive ensures that even by using 2.0 mm strip coil the 2020 continually produces perfect, tight spiral tubes matching or surpassing the standards of DIN, BS, Euronorm and Smacna.
4. The perfect adapted options for making reinforcement beads, for the production of tendon sheet tubes or the automatic production of notches for the METU flanges, during the production process are further advantages of the tubeformer 2020.
5. 2020 is the only machine for the fastidious costumer.
Technical Data
Diameter | ¢80 – ¢2500mm | |
Thickness of strip | Galvanized steel | 0.4-2.0mm |
Stainless steel | 0.4-1.2mm | |
Aluminum | 0.4-2.0mm | |
Width of strip | Standard 137mm | 0.4-1.0 mm |
Standard 140mm | 1.1-1.3 mm | |
Standard 150mm | 1.4-2.0 mm | |
Cutting system | Slitting cutter / Plasma cutter | |
Power | 22Kw | |
Weight | 3200kg | |
Dimension | Main machine | 2100×1800×1500mm |

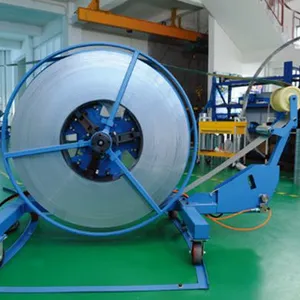

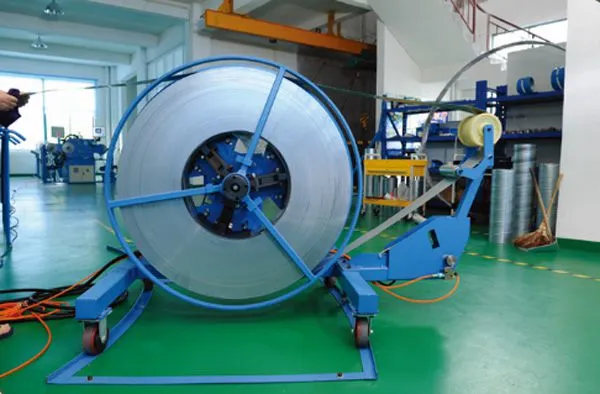

Decoiler | 1780*1130*1250mm | |
Run-out table | 2700*950*1200mm |
