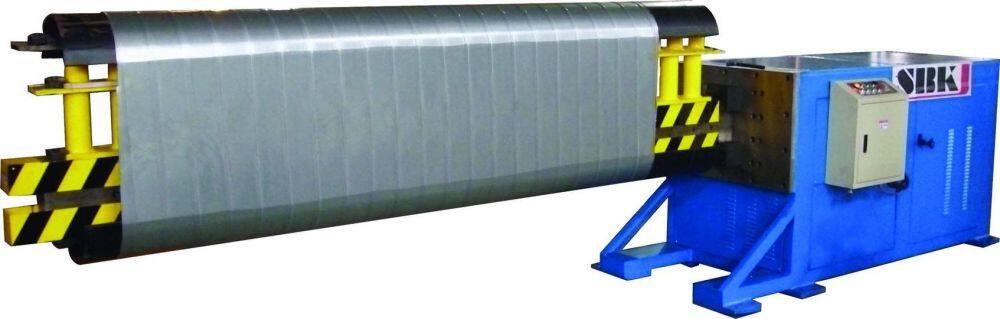

OVALIZER SBHT-3100
The oval pipe is formed by the circular spiral pipe that extends upward and deforms. The design of the oval duct forming machine plays an important role in the spiral duct.
Description
The oval pipe is formed by the circular spiral pipe that extends upward and deforms. The design of the oval duct forming machine plays an important role in the spiral duct. The newly upgraded spiral round flat tube machine increases the cylinder capacity on the original basis, with the larger processing diameter and expansion, so that the joints are more accurate and there is no rebound.
SBKJ OVALIZER is easy to operate after oil injection. This is the relatively practical device in the HVAC duct manufacturing industry.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Thickness |
0.4 -1.2mm |
Max. duct length |
3100mm |
Arm range |
Minimum diameter 330mm |
Moulds |
￠150, ￠200, ￠250, ￠300, ￠350, ￠400, ￠450, ￠500 |
Tray |
50, 100, 200, 300, 400, 500, 600mm |
Power |
18.5Kw |
Weight |
2720kg |
Dimension |
5630 mm×1250 mm×1130mm |
