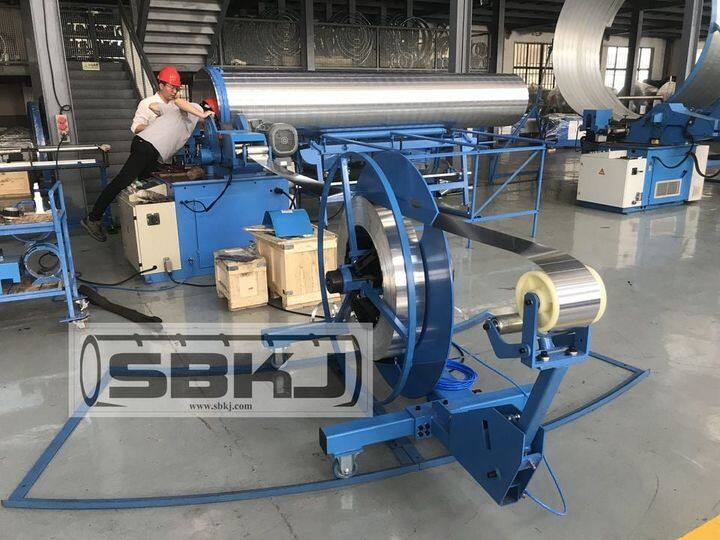

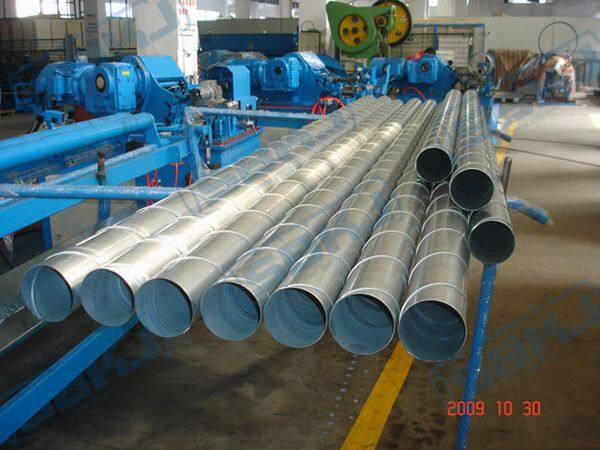

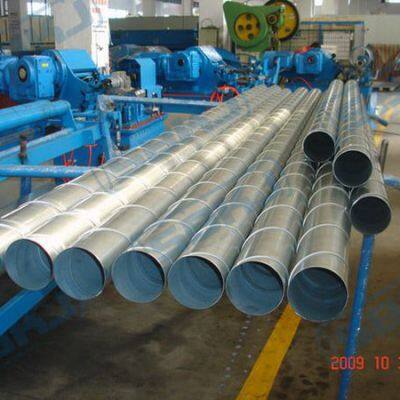

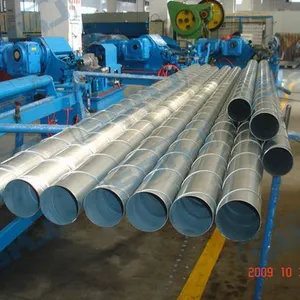

The 1602 Spiral Duct Forming Machine forms ducts with a diameter range of 80 to 1600mm, and a maximum worktable thickness of 1.3mm for galvanized sheets, 0.8mm for stainless steel, and 1.3mm for aluminum sheets. The machine can also be programmed to cut to the exact length for precision trimming, thereby increasing production efficiency.
Features:
1. The fast cutting results in smooth edges with no spark production.
2. Changeable forming compartment for materials with different thicknesses.
3. Aluminum forming heads are lighter and more precise compared to iron ones.
4. Duct beader to strengthen duct.

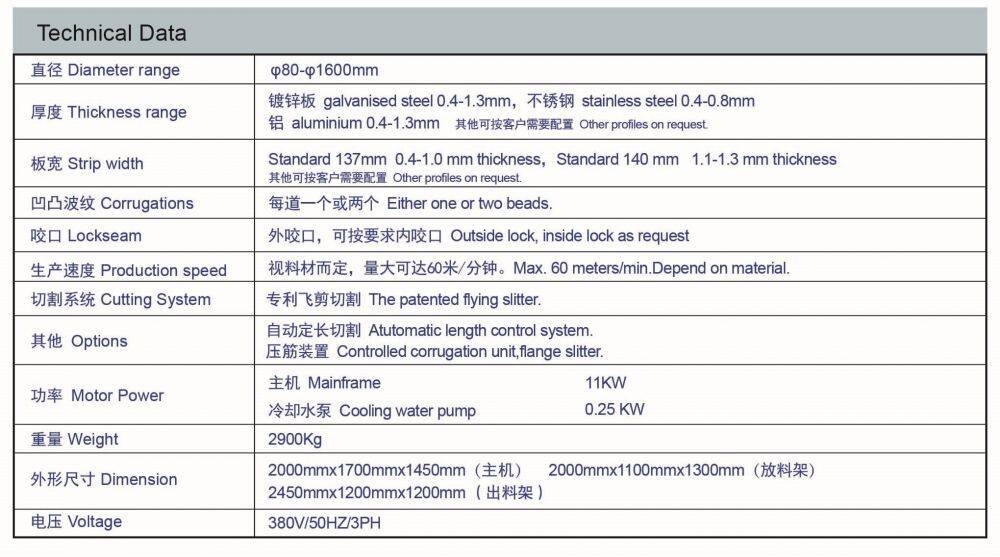

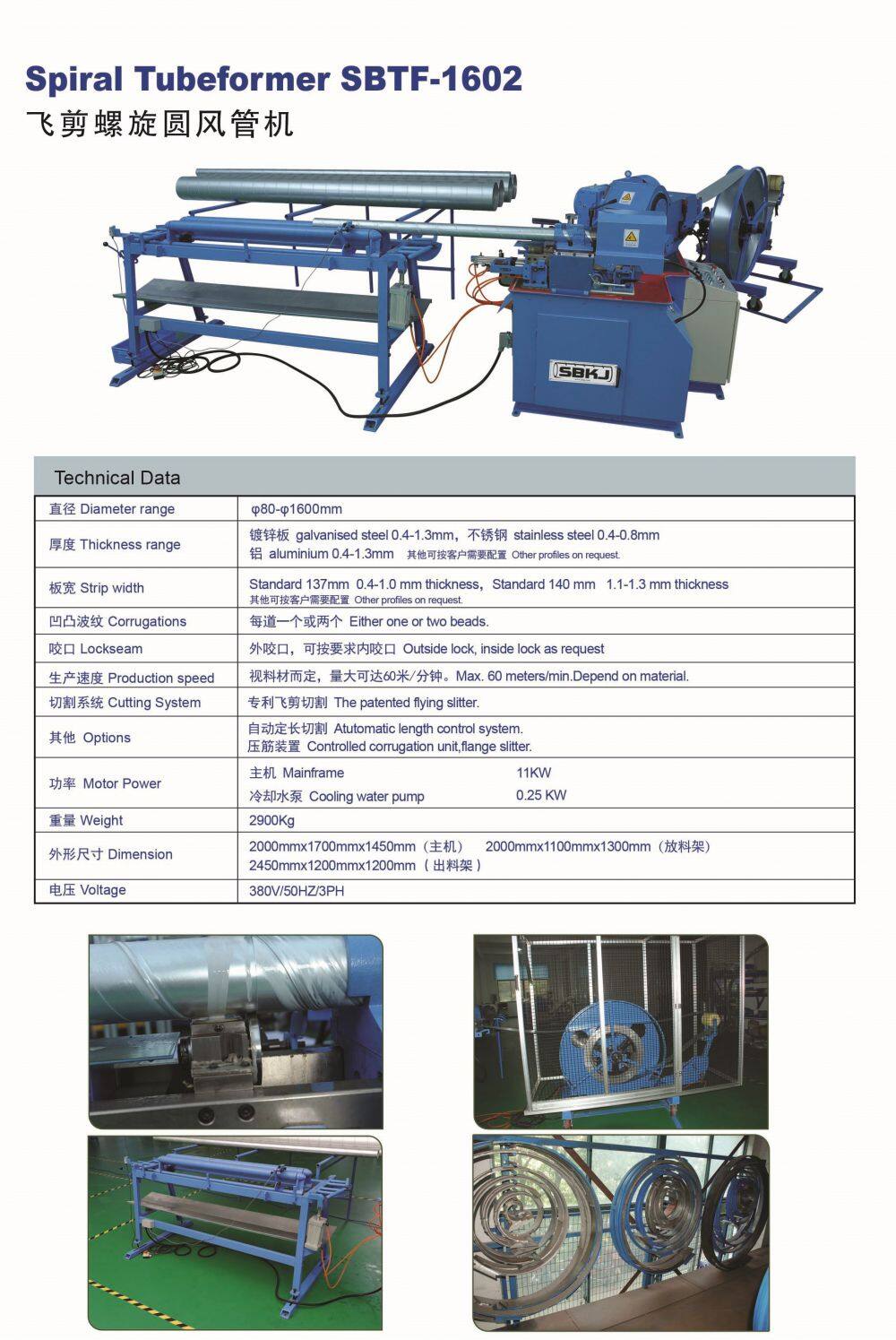

Parameter:
Diameter Range |
Φ80-Φ1600mm |
Thickness Of Strip |
137mm(thickness of Strip:0.4-0.6mm/0.7-1.0mm); 140mm(thickness of Strip:1.1-1.3mm) |
Strip Speed |
Max.60m/min(depend on the materials) |
Motor Power |
11Kw |
Coolant Power |
0.25Kw |
Cutting Power |
4 Kw |
Weight |
2900Kg |
Demension |
2000*1700*1450(main machine) |
Cutting |
the patented flying slitter |
Corrugations |
either one or two beads |
Lockseam |
outside lock, inside lock as request. |
