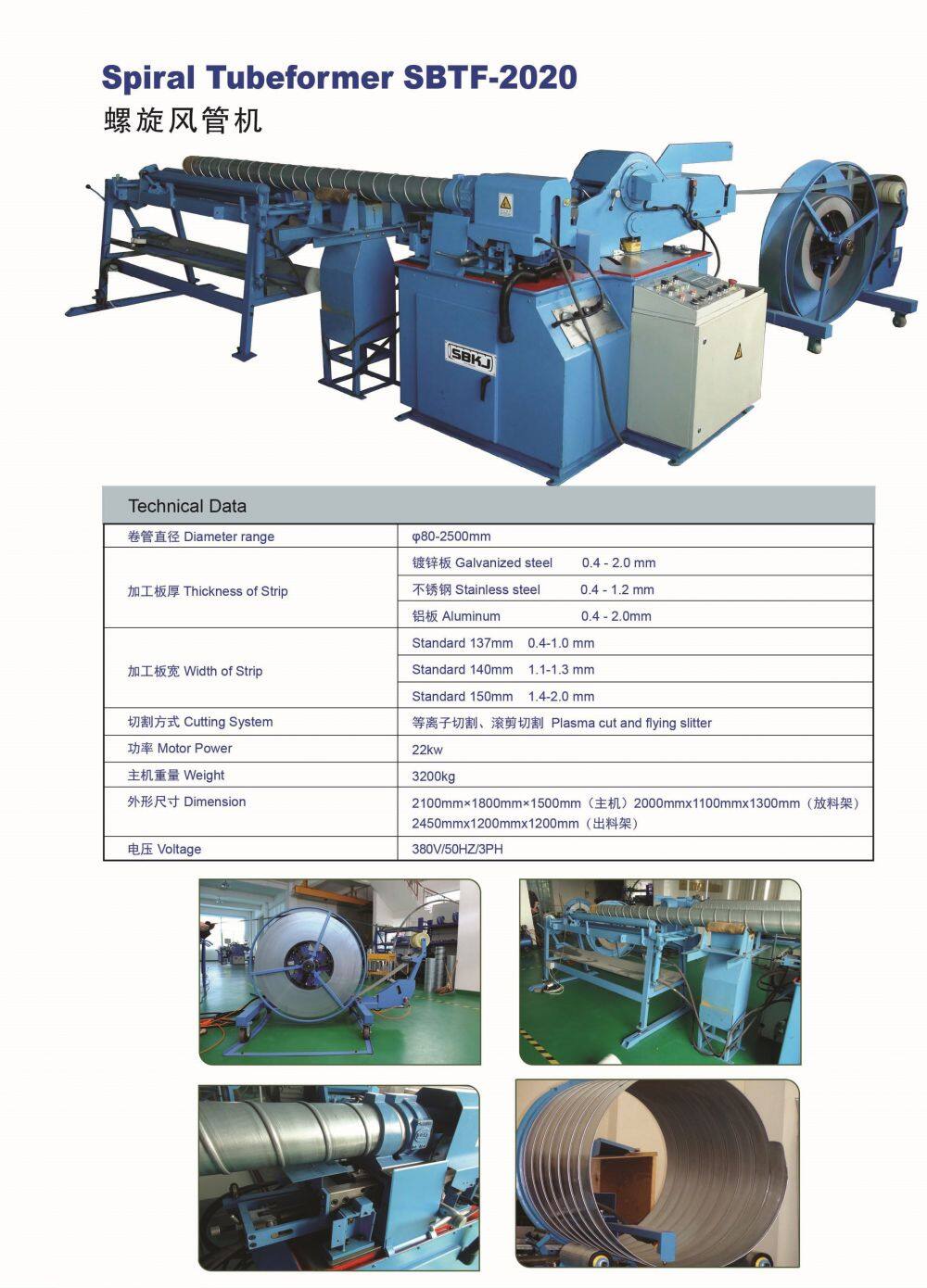

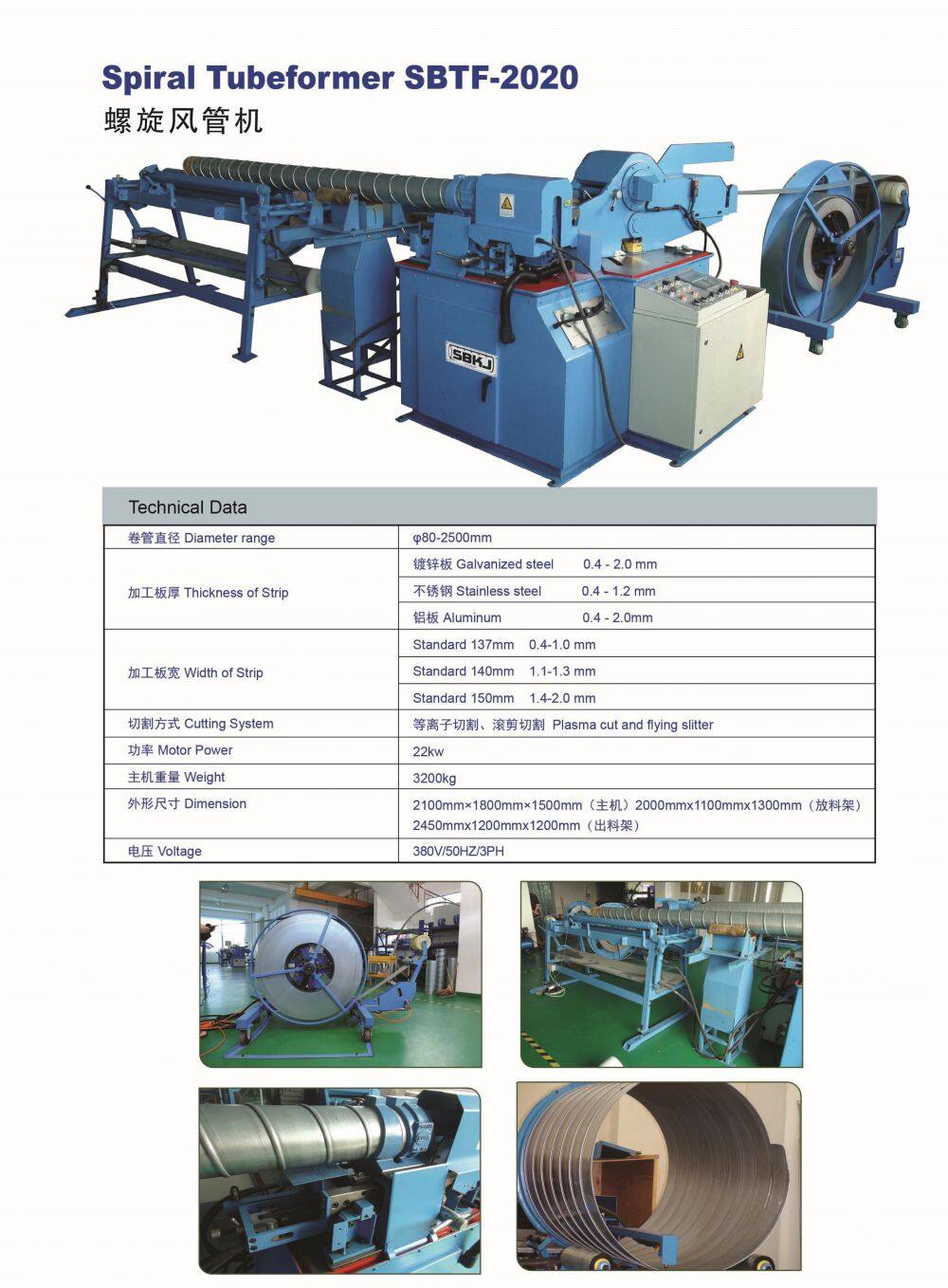

2020 Spiral Duct Forming Machine
- 10 Piece / Pieces per Month
- ShangHai
- T/T L/C Other
- 60 days
Product Details
Brand Name: | SBKJ | Place of Origin: | China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
The 2020 Spiral Duct Forming Machine is designed to work with thicker materials to make ducts with a larger diameter and do so at higher production speeds with a higher precision.
The production diameter ranges between 80 to 2500mm, and as the spiral tube former is equipped with a plasma cutter, it is able to cut through material with a thickness of 2mm or higher. This equipment can also be programmed to cut the exact length for precision trimming to increase the production efficiency.
Features:
1. Changeable forming compartment for materials with different thickness.
2. Aluminum forming heads are lighter and more precise compared to iron ones.
3. Duct corrugated to strengthen duct.
4. Maximum feeding speeds up to 68m/min.

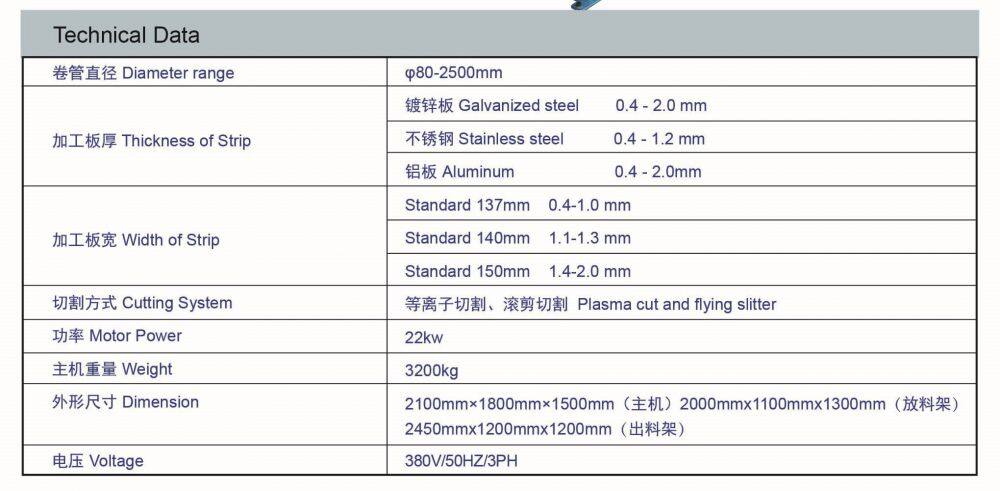

Parameter:
Diameter Range | Φ80-Φ2500mm |
Thickness Of Strip | Galvanized Steel Sheet 0.4-2.0mm;Stainless Steel 0.4-1.2mm;Aluminium 0.4-2.0mm |
Width Of Strip | 137mm 0.4-1.0mm |
140mm 1.1-1.3mm | |
150mm 1.4-2.0mm | |
Motor Power | 22kw |
Weight | 3200kg |
dimension | 2100mm×1800mm×1500mm(Main machine) |
Cutting | plasma cut and flying slitter |
