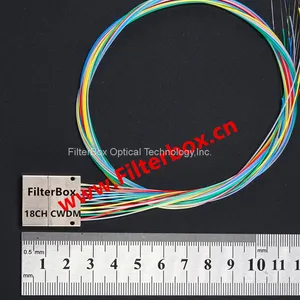

Mini Size Ultra Compact Low Insertion 18 Channel CWDM &DWDM MUX and DEMUX
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Performance Specifications
Ultra-Compact DWDM (100G/200G) | |||||
Parameters |
Unit |
4CH |
8CH |
12CH |
18CH |
Wavelength |
nm |
1520~1600 |
|||
Center Wavelength (nm) |
nm |
ITU CH |
|||
Channel Space |
GHz/nm |
100G/200G |
|||
Passband Bandwidth |
nm |
±0.11/±0.25 |
|||
Insertion Loss (C-Temp) |
dB |
1.5 |
1.8 |
2.2 |
2.5 |
Adjacent Channel Isolation |
dB |
30 |
|||
Non-Adjacent Channel Isolation |
dB |
40 |
|||
Return Loss |
dB |
45 |
|||
Directivity |
dB |
50 |
|||
Fiber Type |
NA |
PM Fiber、G657A1 Fiber、G657A2 Fiber or Customer Requested |
|||
Package Dimensions |
mm |
30x10x7 |
30x15x7 |
30x20x7 |
35x26x7 |
