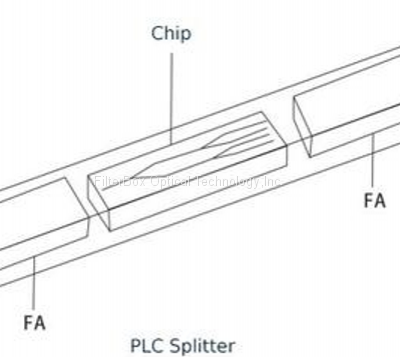

Filterbox's PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64
Features:
¨ Compact design
¨ Low insertion loss and low PDL
¨ High reliability
¨ High channel counts
¨ Wide wavelength range
¨ Large operating temperature range
¨ Customized packaging and configuration
Applications
¨ FTTx Systems
¨ LAN, WAN and Metro Networks
¨ Analog/Digital Passive Optical Networks
¨ CATV Networks
¨ Other applications in fiber optic systems
Compliance
¨ Telcordia GR-1209-CORE
¨ Telcordia GR-1221-CORE
1*N PLC Specifications
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Fiber Type |
SMF-28e or customer specified |
||||||
Operating Wavelength (nm) |
1260～1650 |
||||||
Insertion Loss |
Typical |
3.7 |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
Max |
7.2 |
10.5 |
13.5 |
16.9 |
21.0 |
||
Loss Uniformity (dB) |
Max |
1.2 |
1.5 |
2.5 |
|||
Return Loss (dB) |
Min |
50 |
50 |
50 |
|||
Polarization Dependent Loss(dB) |
Max |
0.3 |
0.3 |
0.4 |
|||
Directivity (dB) |
Min |
55 |
55 |
55 |
|||
Wavelength Dependent Loss(dB) |
Max |
0.5 |
0.5 |
0.8 |
|||
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max |
||||||
Operating Temperature (°C) |
-40~85 |
||||||
Storage Temperature (°C) |
-40~85 |
||||||
Packaging Size (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
|

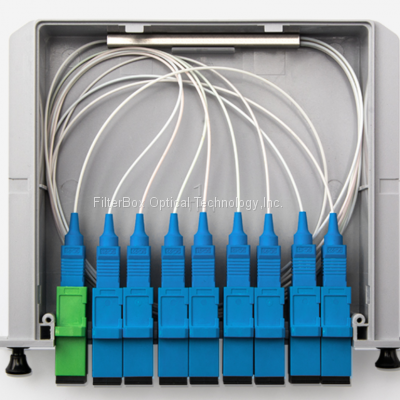

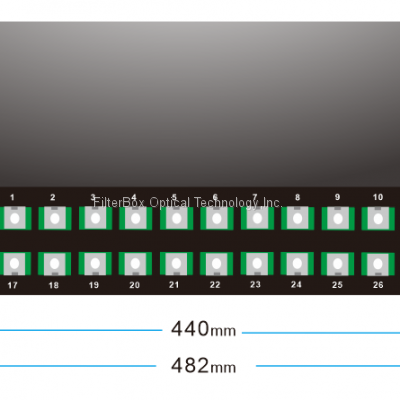

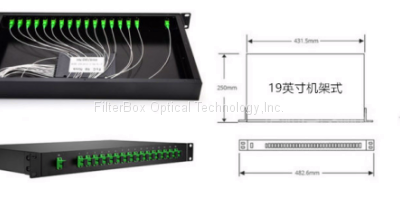

19’’ Rack mount Package(mm) |
1U, 440*190*44 |
||||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
2*N PLC Specifications
Port Configuration |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Fiber Type |
SMF-28e or customer specified |
||||||
Operating Wavelength (nm) |
1260～1650 |
||||||
Insertion Loss |
Typical |
3.8 |
7.4 |
10.8 |
14.2 |
17.0 |
21.0 |
Max |
7.8 |
11.2 |
14.6 |
17.5 |
21.5 |
||
Loss Uniformity (dB) |
Max |
2.0 |
2.5 |
2.5 |
|||
Return Loss (dB) |
Min |
50 |
50 |
50 |
|||
Polarization Dependent Loss(dB) |
Max |
0.4 |
0.4 |
0.5 |
|||
Directivity (dB) |
Min |
55 |
55 |
55 |
|||
Wavelength Dependent Loss(dB) |
Max |
0.8 |
0.8 |
1.0 |
|||
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max |
||||||
Operating Temperature (°C) |
-40~85 |
||||||
Storage Temperature (°C) |
-40~85 |
||||||
Packaging Size (mm) |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×7×4 |
||
19’’ Rack mount Package (mm) |
1U, 440*190*44 |
||||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
