Home > Products > Optical TFF WDM > ABS Pigtail Module CWDM Mux & Demux

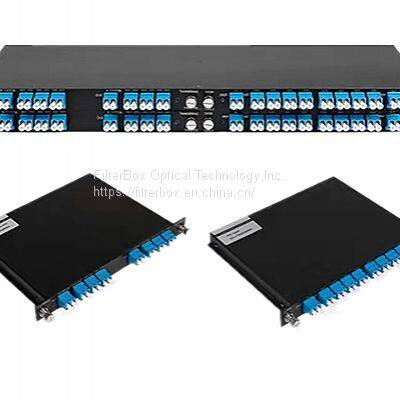

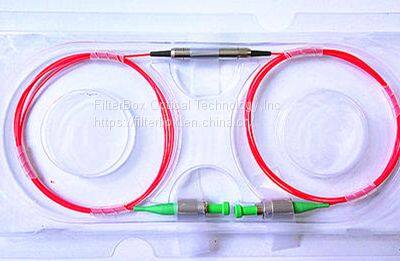

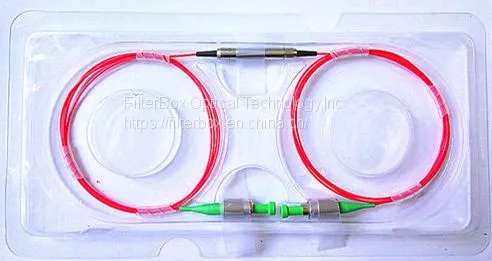

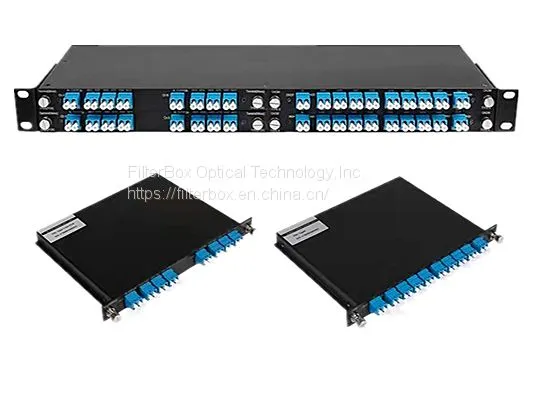

ABS Pigtail Module CWDM Mux & Demux
- 10000 Piece / Pieces per Month
- T/T

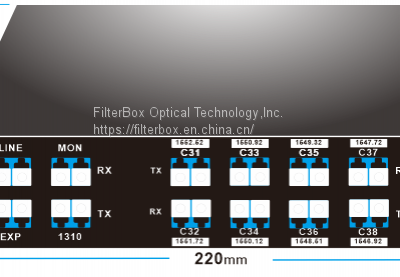

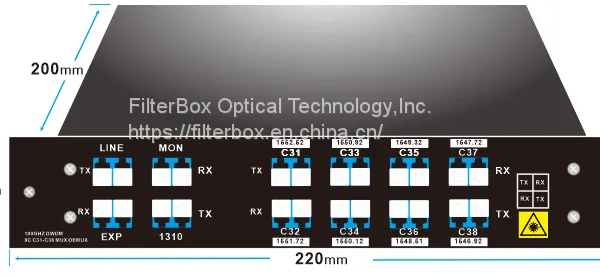

Product Description
(All parameters quoted in this specification are specified for the entire passband under all polarization states over full operating temperature range unless specified otherwise)
Parameter | Condition | Specification | Unit | |
Nominal Center Wavelengths lc | 8CH mux/demux | ITU CH 20-27 or Other 8ch waves Upgrade Port, ITU 16-63 except 4 demux channels, Express Port, 1260-1520 nm + 1570-1635 nm | nm | |
Channel Spacing | All Channels | 100 | GHz | |
Channel Bandwidth @ -0.5 dB | For all DWDM add/drop ports | lc ± 0.11 | nm | |
Insertion Loss (Over full passband) | DWDM Channel (Excludes connector IL) | 3.2 | dB | |
UPGRADE | 3.4 | |||
EXPRESS3 | 1.0 | |||
Ripple within Passband | For all DWDM add/drop ports | 0.5 | dB | |
Test Point Insertion Loss | Test Tx4 (DWDM Window) | 19 | 22 | dB |
Test Rx (1260-1635nm) | 19 | 22 | dB | |
Insertion Loss Uniformity | Maximum across all the used DWDM ITU channels | 2.0 | dB | |
PDL | All Channels | 0.25 | dB | |
PMD | All Channels | 0.15 | ps | |
Directivity | DWDM Port | 50 | dB | |
EXPRESS Port | 40 | |||
Optical Return Loss | All ports | 45 | dB | |
Adjacent Channel Isolation | COM Port to DWDM Port within center wavelength ± 0.125 nm | 30 | dB | |
Non-Adjacent Channel Isolation | COM Port to DWDM Port within center wavelength ± 0.125 nm | 45 | dB | |
Upgrade Port Isolation | COM to Upgrade Port | 12 | dB | |
Express Port Isolation | COM to Express Port | 12 | dB | |
Wavelength Thermal Stability | All Channels | 0.001 | nm/°C | |
Insertion Loss Thermal Stability | All Channels | 0.005 | dB/°C |
Note 1: Channel passband is defined as λITU ±0.11nm and subject to all the ITU passband related spec., such as insertion loss, passband ripple and isolation, etc.
Note 2: All insertion losses (or IL Uniformity) are specified no-connectors unless stated otherwise.
Note 3: Extra 0.5 dB IL will exist at 1370 ~1410nm band.
Note 4: Insertion loss of Test Tx here is defined as the optical power difference between the DeMux port input power and the Test Tx port output power.
