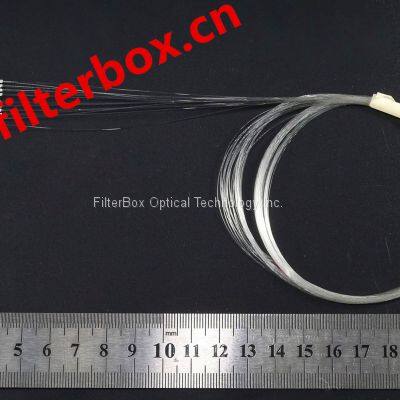

Compact 16CH Mini Size CDWDM Modules
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PM-DWDM Polarization Maintaining Dense Wavelength Division MultiplexerNegotiableMOQ: 1 Piece -
ABS Pigtail Module CWDM Mux & DemuxNegotiableMOQ: 1 Piece
-
Mini CWDM Mux Demux Module 4CH 8CHNegotiableMOQ: 1 Piece
-
100GHz DWDM Device (DWDM Filter) TFF MUX DEMUXNegotiableMOQ: 1 Piece
-
1x2 1x4 1x8 1x16 1x32 1x64 Optical Splitter Coupler PLCNegotiableMOQ: 1 Piece
Specifications:
Parameters |
Unit |
Values |
|
Channel Number |
16 |
||
Center Wavelength |
nm |
ITU |
|
Filter Type |
100GHZ/200GHz |
||
Channel Passba（0.5dB） |
nm |
lc ±0.22 |
|
Insertion Loss |
dB |
||
Isolation |
Adjacent |
dB |
≥30 |
Non-adjacent |
dB |
≥40 |
|
Polarization Dependent Loss |
dB |
≤0.3 |
|
Return Loss |
dB |
≥45 |
|
Directivity |
dB |
≥50 |
|
Optical Power (CW) |
mW |
≤300 |
|
Fiber Length |
M |
≥1 |
|
Fiber Type |
Corning Clear Curve fiber, 900um jacket |
||
Connector |
NA |
||
Operating Temperature |
℃ |
-40 to +70 |
|
Storage Temperature |
℃ |
-40 to +85 |
|

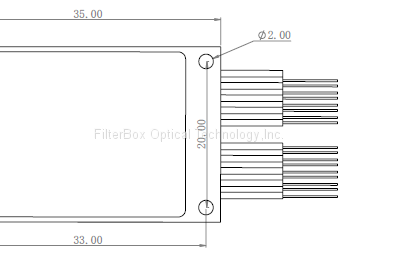

Dimension |
mm |
35x24x6.5 |
|
* Above specifications are for device without connector.
* For devices with connectors, IL will be 0.2dB higher, RL will be 3dB lower .
