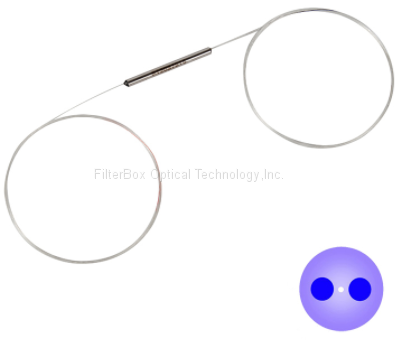

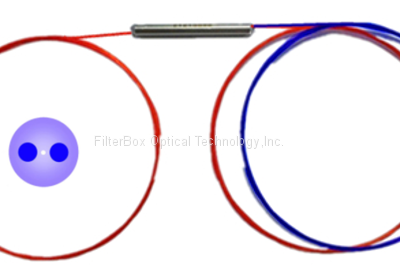

Polarization Maintaining Filter Wavelength Division Multiplexer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2020
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polarization Maintaining Coarse Wavelength Division MultiplexerNegotiableMOQ: 1 Piece -
4CH LAN-WDM BLOCK SpecificationNegotiableMOQ: 1 Piece
-
40CH AAWG DWDM ModulesNegotiableMOQ: 1 Piece
-
100GHz DWDM Device (DWDM Filter) TFF MUX DEMUXNegotiableMOQ: 1 Piece
-
2×2 Bypass Mechanical Optical Switch 1x11x21x41x8NegotiableMOQ: 1 Piece
Specifications:
Parameters |
Unit |
Values |
||
Single |
Dual |
|||
Pass Band |
Wavelength Range |
nm |
1550±15 |
1550±30 |
Insertion Loss |
dB |
≤ 0.8 |
≤ 1.0 |
|
Isolation@1550 |
dB |
≥28 |
≥42 |
|
Isolation@980 |
dB |
≥30 |
≥30 |
|
Reflection Band |
Wavelength Range |
nm |
970~990 |
|
Insertion Loss |
dB |
≤ 0.5 |
||
Isolation |
dB |
≤ 15 |
||
Return Loss |
dB |
≥50 |
||
Extinction Ratio |
dB |
≥20 |
||
Thermal Stability |
dB/℃ |
≤ 0.005 |
||
Optical Power (CW) |
mW |
≤ 300 |
||
Tensile Load |
N |
5 |
||
Fiber Type |

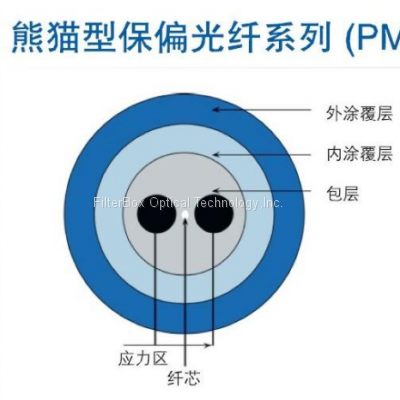

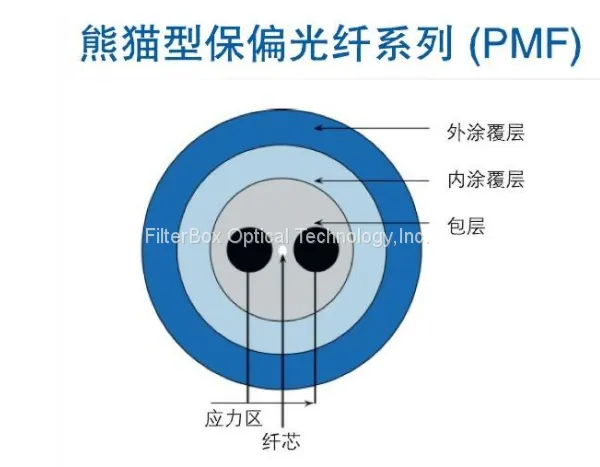

PM 980 Panda Fiber on COM and REL port，PM 1550 Panda Fiber on the PASS port |
|||
Operating Temperature |
℃ |
-5 to +70 |
||
Storage Temperature |
℃ |
-40 to +85 |
||
* Above specifications are for device without connector.
* For devices with connectors, IL will be 0.3dB higher, ER will be 2dB lower and RL will be 5dB lower.
* The PM fiber and the key are aligned to the slow axis.
