Optical Patch Cord Spec

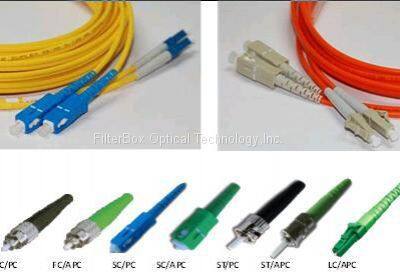

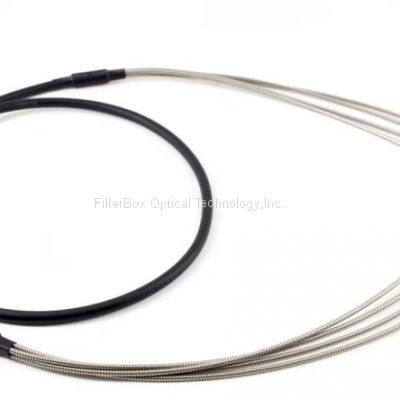

Filterbox’s optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.
Features
l Half the size of standard connector
l Low insertion loss,high return loss
l Excellent mechanical endurance
l High credibility and stability
l Good in repeatability and exchangeability
l 100% Insertion,Return Loss, End face and Interference inspection
Applications
l Telecommunication
l CATV,FTTH,LAN
l Fiber optic sensors
l Optical transmission system
l Test equipment
Performance Specifications
Parameter |
Unit |
FC,SC,LC |
ST,MU |
MTRJ |
||||
SM |
MM |
SM |
MM |
SM |
MM |
|||
UPC |
APC |
UPC |
UPC |
UPC |
UPC |
UPC |
||
Operating Wavelength |
nm |
1310,1550 |
850，1300 |
1310,1550 |
850,1300 |
1310,1550 |
850,1300 |
|
Insertion Loss |
dB |
≤0.25dB |
≤0.35dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
Return Loss |
dB |
≥50dB |
≥55dB |
≥35dB |
≥50dB |
≥35dB |
≥50dB |
≥35dB |
Repeatability |
dB |
≤0.1 |
||||||
Interchangeability |
dB |
≤0.2 |
||||||
Plug times |
times |
≥1000 |
||||||
Tensil Strength |
N |
≥100 |
||||||
Durability |
dB |
≤0.2 |
||||||
Operatingtemperature |
℃ |
-40℃ ~ +70℃ |
||||||
Storage temperature |
℃ |
-45℃ ~ +85℃ |
||||||

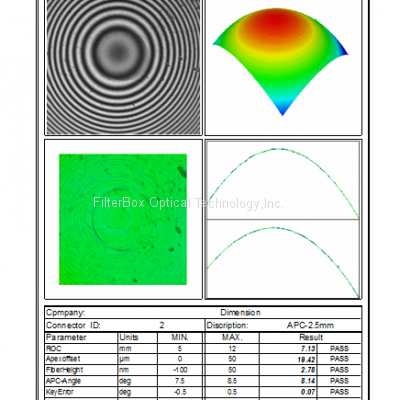

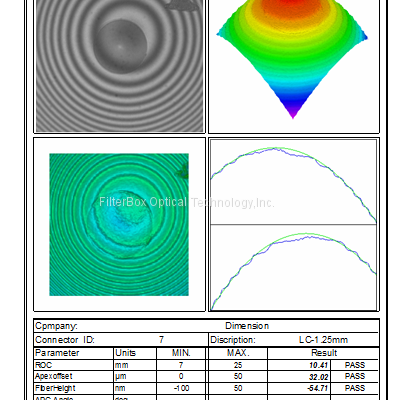

APC and UPC Endface
Mode number |
Single-Mode |
Multi-mode |
Length |
（10.50±0.05）mm |
（10.50±0.01）mm |
Outer-diameter |
(2.4990±0.0005)mm |
(2.4990±0.001) mm |
Inner-diameter |
(0.125+0.001/-0)mm |
(0.126~0.129)mm |
Concentricity |
≤1.0 |
≤4.0 |
Connectors&Kits ( customer-desgined color for boots and dust caps)
Remark: 1. Housing material—PBT,TPE,TT,Metal material
2. Housing color—Blue(SM/UPC),Green(SM/APC),Beige(MM),Aqua
Ordering Information
□ TO □ |
□ |
□ |
□ |
□ |
□ |
Connector Type |
Polishment |
Fiber Type |
Cable Length |
Cable type |
Cable Jacket |
|
1=FC 2=SC 3=LC 4=ST 5=MU 6=MTRJ S=Special |
1=UPC 2=APC 8 degree |
1=SM 9/125 G652D 2=SM 9/125 G657A 3= MM 50/125(OM2) 4=MM 50/125(OM3) 5=MM 50/125(OM4) 6=MM 62.5/125(OM1) |
0=0.5m 1=1.0m 2=2.0m 3=3.0m S=Special |
1=Simplex 2=Duplex 3= Water-proof 4=Break-out 5=Ribbon 6=Bundle
|
1=LSZH 2=PVC 3=OFNR S=special
|
