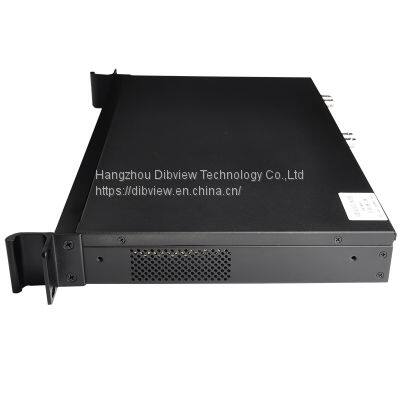

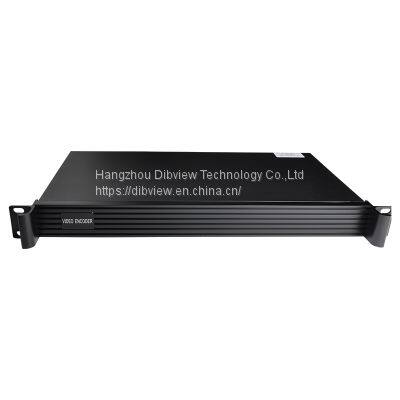

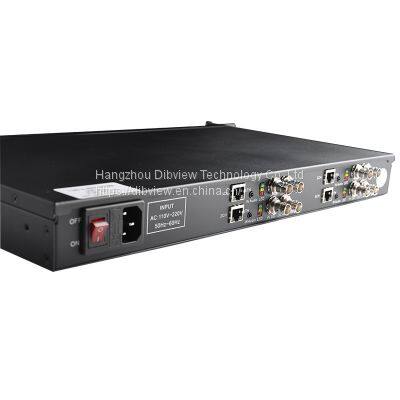

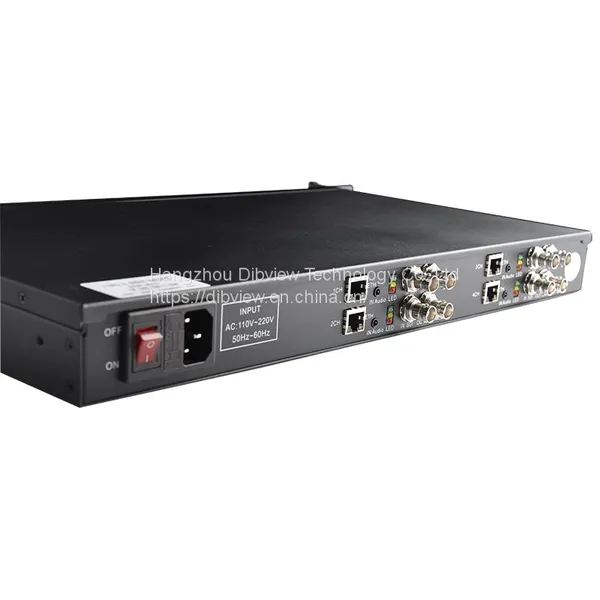

1U Rack H.264 H265 Digital Cable IPTV 4 Channel SDI IP 1080P Live SRT HTTP UDP RTMP HLS Streaming HD Video Facebook Youtube Enco

Key Features:

• Video Input: 4-Channels HD SDI +3.5mm audio SDI loopout work simultaneously

• Support RTMP User name and Pass word for authentication of IPTV Server

• Insertable of logo and Scroll Caption; Adjustable of audio gain;

• Support up to 4 TS over IP stream out each HDMI/SDI channel

• Support H.265/H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression

• Bitrate mode: CBR/VBR

• Capable of image parameter settings

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.

• Providing SRT/HLS,RTSP/HTTP/UDP or RTMP protocol

• Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).

• Support HDCP protocol

• Support ONVIF Network Video Protocol

• Support multiple equipments display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• Web-based management.

• Full-duplex mode 1000M

Video compression: H.265/H.264/AVC High/Main/Baseline Profile Level 4.0

Video inputs:4*SDI in/loopout

Resolution:

Main stream:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,

720x404,704x576,640x480,640x360,auto

Sub-stream:

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto.

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO Encoding

Audio compression: AAC, MP3

Sampling rate: Adaptive, selectable of re-sample.

Sampling accuracy: 24-bit

Bit Rate: 48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps, 256Kbps

Re-sample: 32KHz, 44.1KHz

IP Streaming output

Transport protocol: TS over IP output, SRT/HLS,RTSP/HTTP/UDP or RTMP protocol

For each HDMI/SDI to IP output, 4*TS over IP stream out(SRT/HLS,HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application,

2 channels with lower resolution(up to 720P) for small screen application)

Connector: RJ45, 1000M

Physical And Power

Voltage: 220V

Consumption: less than 20W.

Operating temperature: 0~45℃(operation), -20~65℃(storage)

Dimensions: 483mm(W)*240mm(D)*44.5mm(H)

Weight: 3Kg/pc

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Digital Signage Project

Video Monitoring
