Product Details
Brand Name: | DIBVIEWOLO | Place of Origin: | China | Model Number: | OTV-HE80 |
Product Description
In a rapid changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

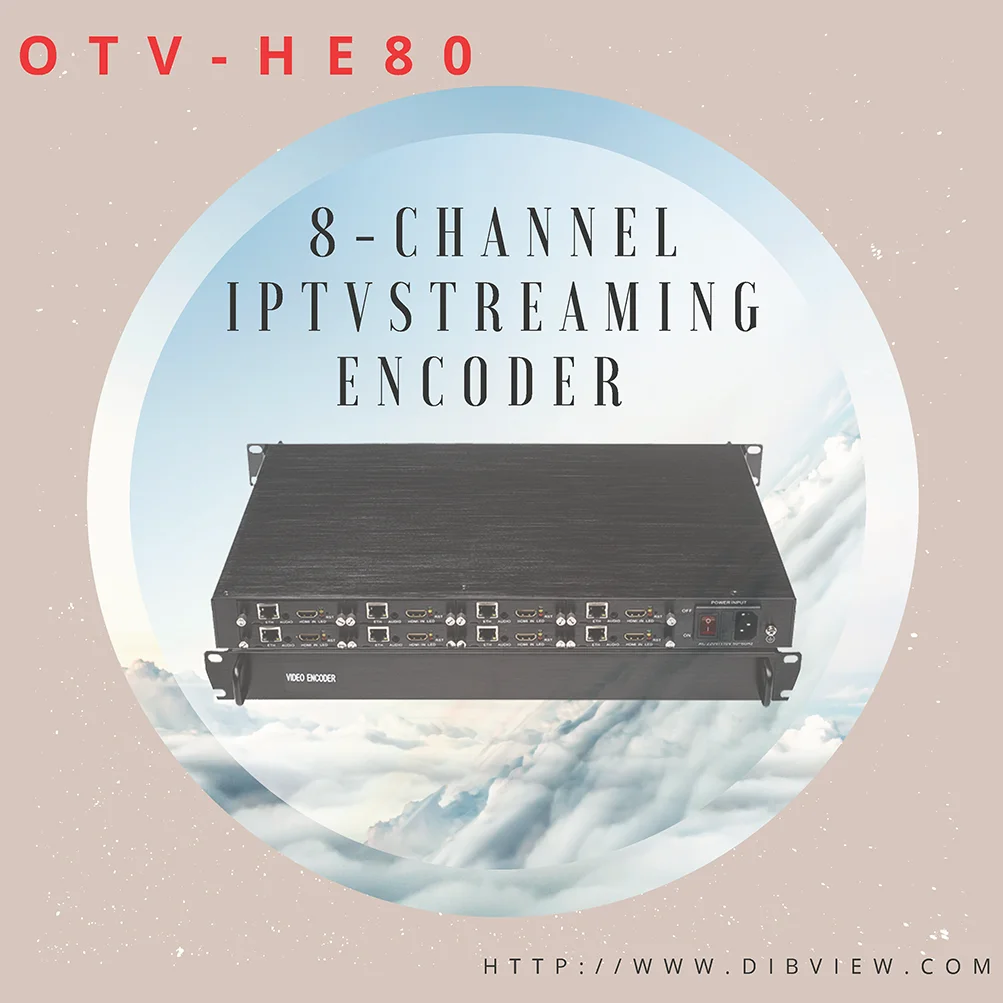

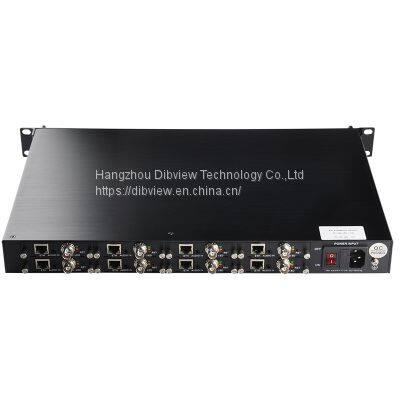

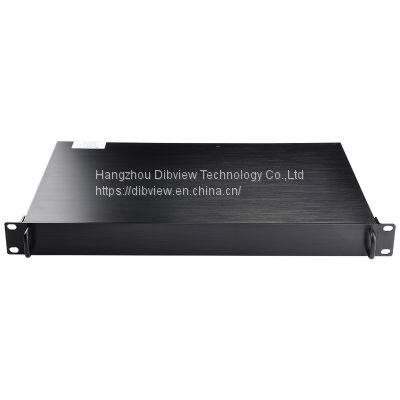

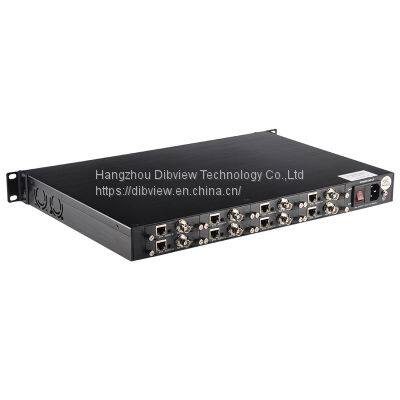

DIBVIEW OTV-HE80 H.265/H.264 8-Channel HDMI Encoder Multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. OTV-HE80 H.265/H.264 HD 8 Channel IPTV Encoder supports audio and video collection by 8-Channel HD HDMI input simultaneously for option. For HDMI input, each channel of HDMI input supports output 2 channels IP streams with two different resolutions(one higher resolution, the other one lower resolution), each channel of IP stream support two kinds of protocols output option. So there are total 8*4=32 channels IP streams output from 8 channels HDMI input. The Encoder can deliver H.265/H.264 encoding video streams by independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server,Windows Media Server and some other servers based on UDP/HLS/RTSP/RTMP/HTTP/ONVIF protocols.Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.
OTV-HE80 is suitable for professional broadcast level IPTV&OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.
OTV-HE80H.265/H.264 8-Channel HDMI Encodersupport HDMI embedded audio or external audio optional from output video streaming.
Not only 8-channel, we also produce multichannel HDMI video encoder which is packed by 2U/3U box. For 3U rack, support max 16pcs independent encoding modules to be installed.
Key Features:
Video Input:8-Channels HDMIPlus 3.5mm audio work simultaneously
H.265/H.264Baseline Profile/Main Profile/High Profile
Support RTMP User name and Pass word for authentication of IPTV Server
Insert logo and Scroll Caption; Adjustable of audio gain;
Support up to 4 TS over IP stream out each HDMI channel
Bitrate mode: CBR/VBR
Capable of image parameter settings
Configurable of Multi-Screen, Multi-Protocol HLS, HTTP, RTSP, UDP, RTMP, FLV/RTP/ONVIF
Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
Supports the HDCP protocol and supports Blu ray HD
Support multiple equipment display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
WEB interface authority management
Network interface adopts 100/1000M adaptive/full duplex mode
Technical Specifications:
Item | Description | |
Video Encoding | ||
Video compression: H.265 HEVC,H.264/AVC High/Main/Baseline Profile Level 4.0 Video inputs:8*HDMI (HDCP protocol) input+3.5mm audio | ||
Resolution | Main stream: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x480,720x404,704x576,640x480,640x360,auto Sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto. | |
Output Interface | Ethernet Port (RJ45) | |
Video Encoding | HEVC/H.265 Or H.264 /AVC | |
Code Rate Control | 16kbps~12Mbps, CBR/VBR | |
Video pre-processing | Noise reduction, Sharpen, Filtering | |
Audio Encoding | ||
Audio compression: AAC, MP3 | ||
Audio bit rate: 48Kbps,64Kbps,96Kbps,128Kbps,160Kbps,192Kbps,256 Kbps,384Kbps | ||
Sampling rate: Adaptive, selectable of re-sample | ||
Sampling accuracy: 24-bit Re-sample: 32KHz,44.1KHz | ||
IP Streaming Output | ||
Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol | ||
For each HDMI to IP output, 4*TS over IP stream out(HLS,HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) | ||
Management | ||
Configuration Interface: web-based UI | ||
Upgraded: via network | ||
Connector: RJ45, 1000M Ethernet interface. | ||
The Working Environment | ||
Dimension | 483mm(W)*240mm(D)*45mm(H) | |
Gross Weight | 4KG | |
Temperature | 0 to 45(For working), -20 to 80(For storing) | |
Input Voltage | AC220V±10%, 50/60 Hz | |
Power Consumption | 75W | |
Applications:
Live Streaming
Video Monitoring
Digital Signage
Remote Video Conference
Agencies, Pro Radio and Sports
Organizations Conferences and Worship
IPTV/OTT system
Hotel TV System
CATV Broadcasting system
Digital TV Broadcasting System
Digital TV Programs Transmission
Government, Education and Music
Edge side of Digital TV backbone network
Head-end system of Digital TV branch network.
