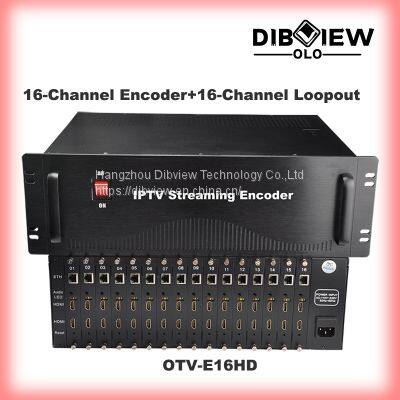

OTV-E16HD 16 in 1 HDMI With Loopout H.265 HEVC H264 IP Card Code Streaming Video Encoder For IPTV Hotel Project

OTV-E16HD H.265 H.264 HD 16-Channel IPTV Encoder features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of h.265/MPEG-4 AVC, which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder.

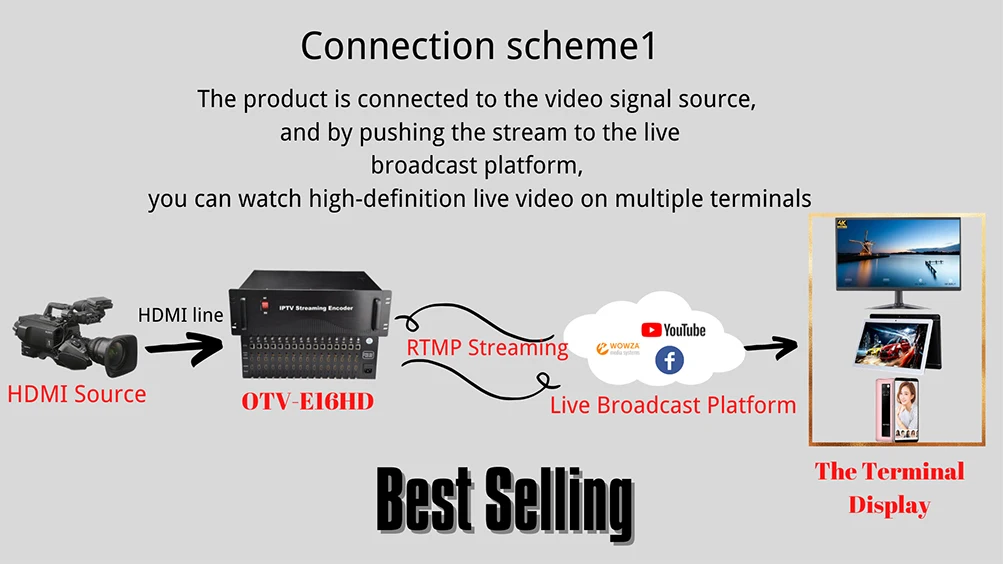

OTV-E16HD H.265 H.264 HD 16-Channel IPTV Encoder is equipped with 16 plug-in module card, every module support 1*HDMI in With HDMI Loopout streaming at the same time, and output up to 4 different streams with different resolution or protocols, which makes it suitable for multi-screen(PC, TV, Mobile) service. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

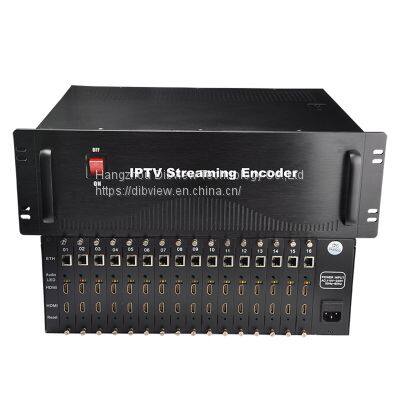

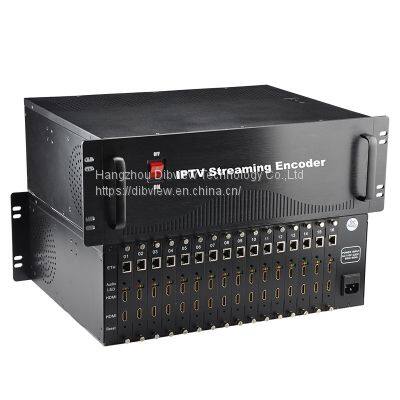

OTV-E16HD H.265 H.264 HD 16-Channel IPTV Encoder owns 2U/3U structure, perfect designing, adding fully supporting VLC decoding functions, can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Main Features:

• Video Input: 16-Channels HDMI in, 16-Channel HDMI loopout

• Support up to 1080P HD video input

• Support h.265 Main/High/Baseline Profile and MP3 & AAC audio compression

• Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s

• Support streaming resolution settings

• GOP frame rate settings supported

• Capable of image parameter settings

• Insertable of logo and Scroll Caption; Adjustable of audio gain

• Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT,

• Mobile/web, Set Top Box applications

• Support up to 4* TS over IP stream out

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-rate, Multi-resolution, Multi-protocol

• Providing SRT/HLS/RTSP/HTTP/UDP or RTMP protocol

• Support HDCP protocol, ONVIF Network Video Protocol

• Support multiple equipments display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode

• Web-based management

• Full-duplex mode 1000M

Key Specification:

Video compression
: H.265/HEVC, H.264/AVC High/Main/Baseline Profile Level 4.0

Video input:16-Channel HDMI in With 16-Channel HDMI loopout

Resolution

Main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto

Sub-stream:
1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180, auto

Bit-rate
:16kbps~12Mbps, CBR/VBR

Video pre-processing
: Noise reduction, Sharpen, Filtering

Audio Encoding
: Audio compression: AAC, MP3

Sampling rate: Adaptive, selectable of re-sample

Sampling accuracy: 24-bit

Re-sample: 32KHz,44.1KHz

Audio bit-rate: 48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps, 256Kbps, 384Kbps

IP Streaming output

Transport protocol: TS over IP output, SRT/RTSP/HTTP/HLS/UDP or RTMP protocol

Each HDMI in/loopout to IP 4*TS over IP stream out(HTTP/HLS/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)

Connector: RJ45, 1000M

Working Environment

Voltage: AC220V±10%, 50/60 Hz

Consumption: 80 W

Operating temperature: -20~80°C

Dimensions: 484mm(W)*365mm(D)*148mm(H)

Weight: 8.1Kg/pc
