This unit is sold out currently, all of our clients are waiting for next batch (about two weeks). When ready, we will tell you here.
Good news!If you need simialr encoder urgently, you are welcome to open the link as below:
/item/1005002693068157.html, this one Tiny1 is also popular and works fine.
We have many in stock for Tiny1.
Overview:
OTV-ENC1 Mini ProVideo Streaming IPTV Encoder. It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265 HEVC.
OTV-ENC1 Mini ProVideo Streaming IPTV Encoder can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Key Features:
1-Channel HDMI Input
Audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol HTTP, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
Most of push url can be filled in the (push url column), not only RTMP,but also supports RTMPS, RTSP, UDP and other push methods.
Embedded hardware encoder
H 265,H 264 Main profile
Signal source resolution1080P 30fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
Audio output format AAC,MP3,PCMA,MPEG-2
Coding Resolution: 1080P 30fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
Support CBR,VBR,AVBR
No support interlaced signal input
Support a variety of common platforms such as Facebook, Wowza, FMS, Youtube, Ustream, and so on
Technical Specifications:
Item |
Description |
Performance Parameter | |
|
Core performance Main chip:Hi3516EV300 CPU: ARM Cortex-A7@900Mhz, 32KB I-Cache, 32KB D-Cache RAM: 128MB DDR3 Flash: 128MB SPI Nand Flash | |
Input Interface | |
|
Input interface: HDMI 1.4 Highest support 1080P@60fps Resolution:1080P,720P,1600x1200,1440x900,1366x768,1280x1024,1024x768,800x600,640x480 Encoding format: H.264 Baseline profile, H.264 Main profile, H.264 High profile H.265 Main profile, MJPEG/JPEG Baseline Decoding format: H264,MJPEG Encoding resolution: Main:1080P,720P,360P, Sub:720P,360P Frame rate:1~30fpsAdjustable Multiple reference frame: stand by SmartP, DualP Maximum bit rate: 60Mbps Rate control: CBR/VBR/AVBR/FIXQP/QPMAP | |
Audio Parameters | |
|
Input interface: HDMI, 3.5mm Line-In. Sampling Rate:48K, 44.1K, 32K, 16K, 8K Encoding format: AAC, MP3, MPEG2, PMCA, PMCU | |
Network Parameters | |
|
Wired interface:10/100M RJ45 Network port Transfer Protocol: RTSP, RTMP,HTTP, UDP, Unicast, multicast ONVIF: Yes, support | |
Software Function | |
Basic skills: WEB configuration, parameter hot update, firmware upgrade, network setting, password management | |
The Working Environment | |
|
Voltage: DC 12V 1AorUSB-C (DC-5V/2A), power supplytwo choose one, as for shipment, we will provide theUSB adapter by default. Consumption: Less than 4W Operating temperature: 0~70℃ Dimensions: 58mm(W)*62mm(D)*16mm(H) | |
Applications:
DTV & Professional Broadcasting Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Events Streaming
Government, Education, Healthcare and Music
Digital Signage Project
Public Security Video Monitoring

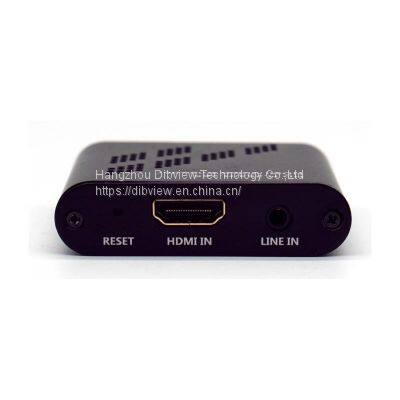

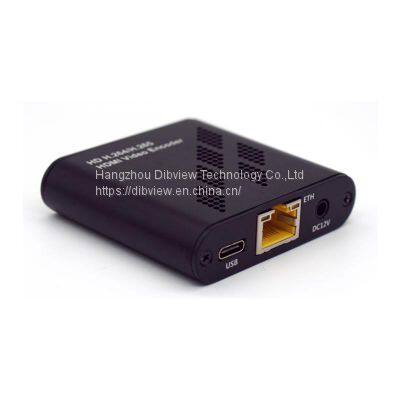

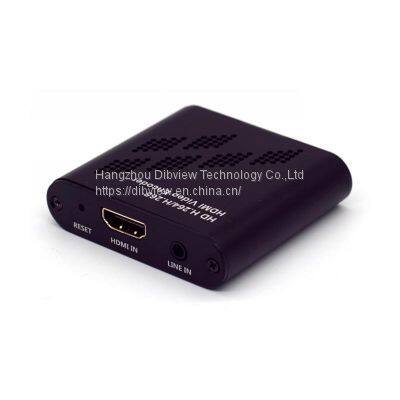

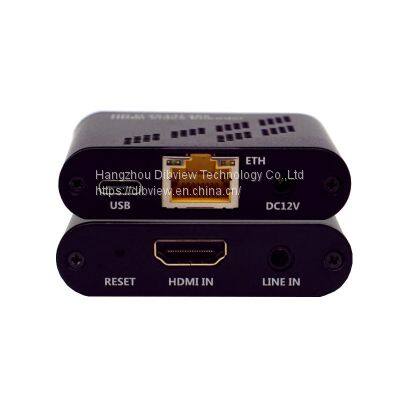

OTV-ENC1 More Pictures
Mini Tiny Video Encoder
