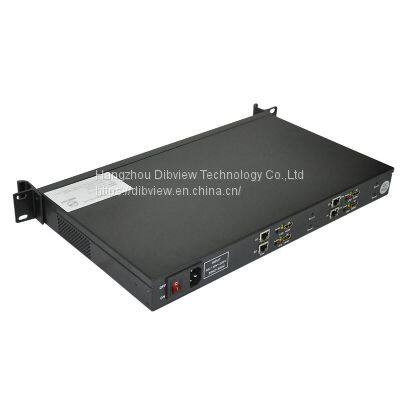

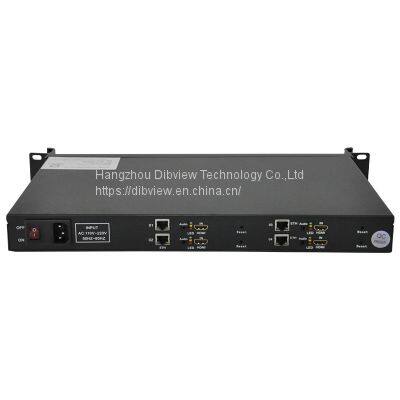

OTV-HE40 4 hdmi streaming iptv video H264 H265 srt rtmp rtsp udp hls ip encoder for facebook youtube codec

DIBVIEW OTV-HE40 H.265/H.264 4-Channel HDMI Encoder Multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. OTV-HE40 H.265/H.264 HD 4 Channel IPTV Encoder supports audio and video collection by 4-Channel HD HDMI input simultaneously for option. For HDMI input, each channel of HDMI input supports output 2 channels IP streams with two different resolutions(one higher resolution, the other one lowe4*4=16 channels IP streams output from 4 channels HDMI input. The Encoder can deliver H.265/H.264 encoding video streams by independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server,Windows Media Server and some other servers based on UDP/HLS/RTSP/RTMP/HTTP/ONVIF protocols.Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

OTV-HE80 is suitable for professional broadcast level IPTV&OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.

OTV-HE40H.265/H.264 4-Channel HDMI Encodersupport HDMI embedded audio or external audio optional from output video streaming.

Not only 4-channel, we also produce multichannel HDMI video encoder which is packed by 2U/3U box. For 3U rack, support max 16pcs independent encoding modules to be installed.

Key Features:

• Video Input:4-Channels HDMIPlus 3.5mm audio work simultaneously

• H.265/H.264Baseline Profile/Main Profile/High Profile

• Support RTMP User name and Pass word for authentication of IPTV Server

• Insert logo and Scroll Caption; Adjustable of audio gain;

• Support up to 4 TS over IP stream out each HDMI channel

• Bitrate mode: CBR/VBR

• Capable of image parameter settings

• Configurable of Multi-Screen, Multi-Protocol HLS, HTTP, RTSP, UDP, RTMP, FLV/RTP/ONVIF

• Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).

• Supports the HDCP protocol and supports Blu ray HD

• Support multiple equipment display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• WEB interface authority management

• Network interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:

Applications:

Live Streaming

Video Monitoring

Digital Signage

Remote Video Conference

Agencies, Pro Radio and Sports

Organizations Conferences and Worship

IPTV/OTT system

Hotel TV System

CATV Broadcasting system

Digital TV Broadcasting System

Digital TV Programs Transmission

Government, Education and Music

Edge side of Digital TV backbone network

Head-end system of Digital TV branch network.
