DIBVIEWOLO OTV-HE08 1U Rack HEVC H.265 H.264 HDMI Video Stream Encoder For Live HD IPTV 8 Channels SRT RTMPs Facebook Youtube

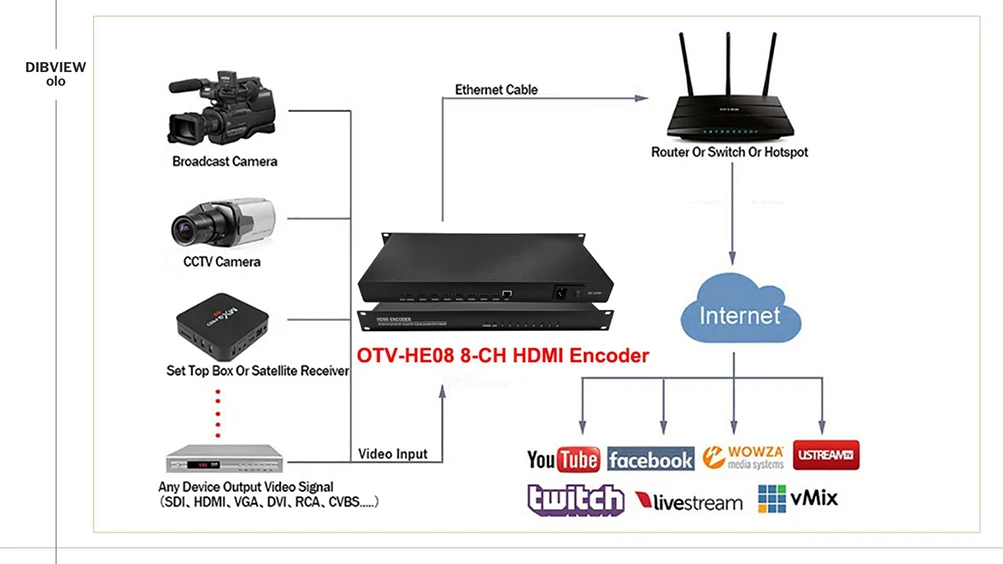

OTV-HE08 H.265/H.264 8 Channel HDMI-Compatible Encoder is DIBVIEW newest professional HD audio and video encoding device with powerful functionality. It is equipped with 8 channel HDMI-Compatible input, supporting HEVC/H.265 or H.264 /AVC high profile/main profile/baseline profile coding format and Four video streaming output, by HDMI video over IP, which is streaming by SRT, HTTP, RTSP, UDP/RTP, RTMP, ONVIF, HLS, FLV. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Besides that, the encoder works with online live video broadcasting platform, such as YouTube, Ustream, Twitter, Facebook, etc.

OTV-HE08 H.265/H.264 8 Channel HDMI-Compatible Encoder support HDMI-Compatible embedded audio or external audio optional from output video streaming.

Not only 8-channel, we also produce multichannel HDMI-Compatible video encoder which is packed by 2U/3U box. For 3U rack, support max 16pcs independent encoding modules to be installed.

Key Features:

• Video Input: Support 8*HDMI-Compatible+embedded audio

• H.265/H.264 Baseline Profile/Main Profile/High Profile

• Video resolution up to Full HD 1080P@60fps

• Output 4 groups IP streams with different resolution, bitrate and protocol

• Support RTMP User name and Pass word for authentication of IPTV Server

• Capable of OSD settings for logo, upload 16 LOGO options, text and Scroll Caption; Adjustable of audio gain;

• Bitrate mode: CBR/VBR

• Capable of image parameter settings

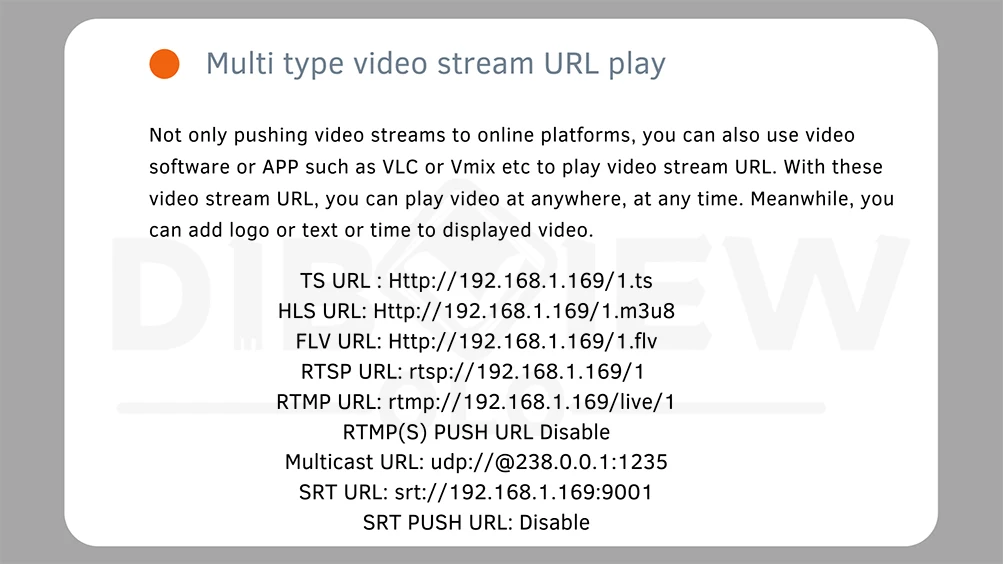

• Configurable of Multi-Screen, Multi-Protocol HLS, HTTP, RTSP, UDP, RTMP, FLV/RTP/ONVIF

• Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).

• Supports the HDCP protocol and supports Blu ray HD

• Support multiple equipment display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

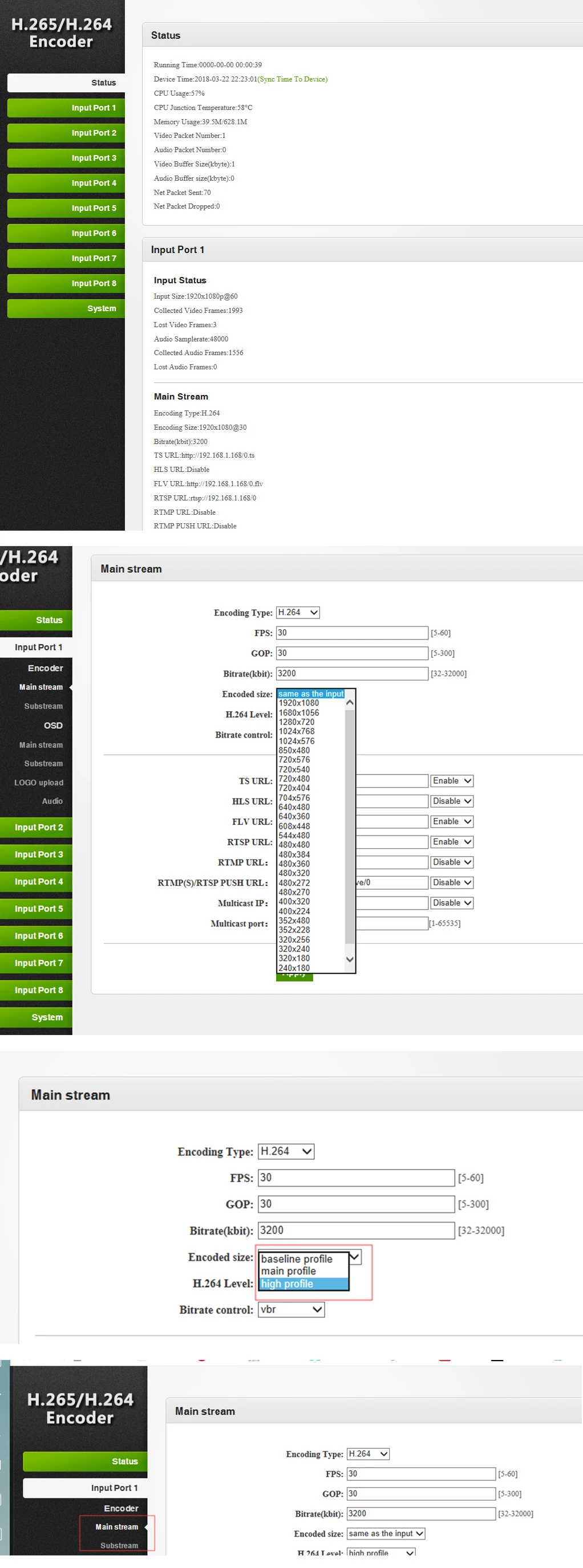

• WEB interface authority management

• Network interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:
