Product Details
Brand Name: | DIBVIEWOLO | Place of Origin: | China | Model Number: | OTV-HE01H |
Product Description
Order Guide:
OTV-HE01H H.265/H.264 Video Streaming IPTV 1-Channel H.265 Encoder is DIBVIEW Economic professional HD audio and video encoding device with powerful functionality, which is equipped with 1 channel HDMI input, 1 channel HDMI loopout, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.
OTV-HE01HH.265/H.264 Video Streaming IPTV 1-Channel H.265 Encoder supports audio and video collection by 1-Channel HDMI input. For HDMI input, which supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMPs, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on HLS/UDP/RTSP/RTMPs/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which does not authorized.
OTV-HE01HH.265/H.264 Video Streaming IPTV 1-Channel H.265 Encoderis an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.
Not only 1-channel HDMI, we also produce multi-channel HDMI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.
Key Features:
Video Input: 1-Channel HDMI,1-Channel HDMI Loopout
Support ONVIF protocol to check and browse the video
Video Compression:H.265/H.264Baseline Profile/Main Profile/High Profile, up to Full HD 1080P@60fps
Dolby AC3, AAC, AAC+, AAC++, MP3, MP2 audio compression
Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates.
Support RTMP User name and Pass word for authentication of IPTV Server
Capable of OSD settings for logo, upload 4 LOGO options, text and Scroll Caption; Adjustable of audio gain;
Bitrate mode: CBR/VBR
Capable of image parameter settings
Configurable of Multi-Screen, and Multi-Protocol NDI/HLS/HTTP/RTSP/RTMP/FLV/ ONVIF/UDP Multicast/RTP Multicast
Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
Supports the HDCP protocol and supports Blu ray HD
Support multiple equipment display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
WEB interface authority management
Network interface adopts 100/1000M adaptive/full duplex mode
Technical Specifications:
Item | Description | |
Video Encoding | ||
Video compression: H.265 HEVC /H.264/AVC High/Main/Baseline Profile Level 4.0 Frame rate: Up to FullHD1080P 60fps Video input: 1*HDMI (HDCP protocol), 1*HDMI Loopout | ||
Resolution | The Main stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto. The Second Stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto. The Third Stream: 720x576, 720x540,720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto The Fourth Stream: 720x576, 720x540, 720x480, 720x404,704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto | |
Code Rate Control | 32kbps~32Mbps, CBR/VBR | |
Video pre-processing | Noise reduction, Sharpen, Filtering | |
Audio Encoding | ||
Audio compression: Dolby AC3,AAC / AAC+ / AAC++ / MP3/G.711 | ||
Audio bit rate: AAC:48000-256000 adjustable /AAC+:24000-48000 adjustble/ AAC++:12000-32000 adjustable/MP3:64000-320000 adjustable/ MP2: 64000-320000 adjustable/ AC3:40000-640000 adjustable | ||
Sampling rate: 44.1KHz, 48.0KHz | ||
RTSP stream uses G711A encoding: Disable/enable/enable and resample to 8K optional | ||
IP Streaming Output | ||
Transport protocol: TS over IP output, NDI HLS, RTSP, HTTP, UDP and RTMPs protocol | ||
For each HDMI to IPTV output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMPs protocol all enabled). with 4 different resolutions (up to 1080P@60fps) and 4 different bitrates to meet different size screen and different bandwidth condition. | ||
Management | ||
Configuration Interface: web-based UI | ||
Upgraded: via network | ||
Connector: RJ45, 100/1000M Ethernet interface. | ||
The Working Environment | ||

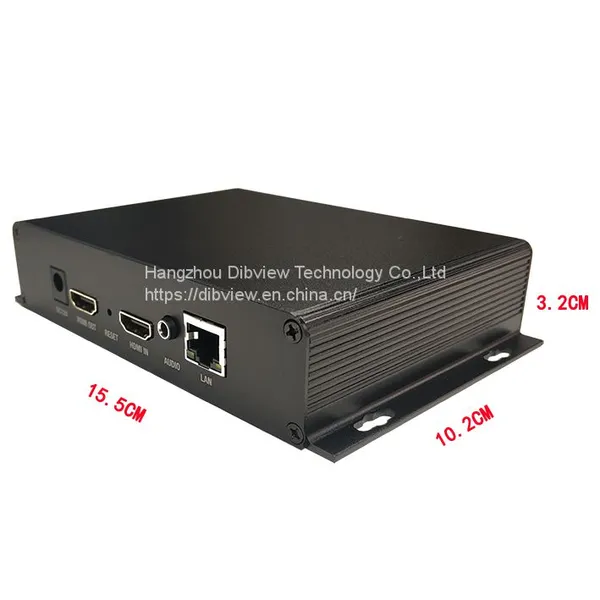

Dimension | 1U Rack 155x100x32mm | |
Gross Weight | 0.32KG | |
Temperature | 0 to 45(For working), -20 to 80(For storing) | |
Input Voltage | 12V/DC 2A | |
Power Consumption | 4W | |
Applications:
Agencies, TV & Pro Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
NDI IPTV/OTT system, Live Streaming
Government, Education and Music
Digital Signage Project
NDI Video Monitoring
Key Diagram:
