Overview:

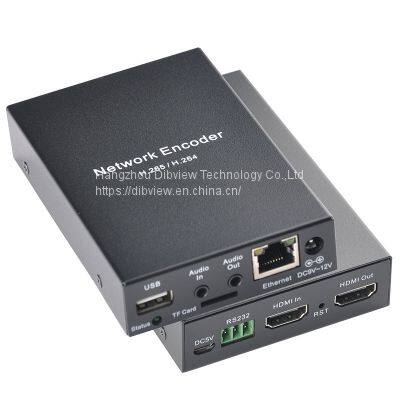

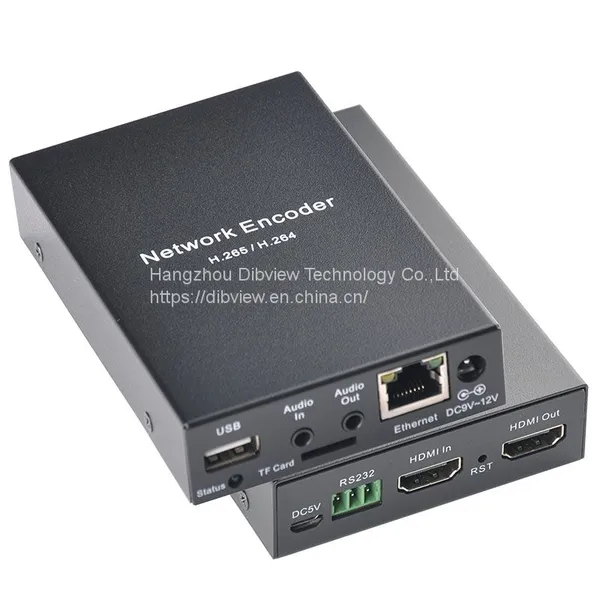

OTV-HR31H HDMI TO IP Streaming Encoder with HDMI in/loopout, adopt advanced H.265/HEVC and H.264/AVC Video compression technology, encoding up to 1080P@60fps output. integrated the features of HD HDMI Encoding, data transmission and real-time recording. You can connect to external storage by USB port or put in the TF card to save the files locally. Meanwhile output IP streams with multi-protocols from RTMP,RTSP,UDP(Unicast/Multicast),CMI,ONVIF,TCP/IP.
OTV-HR31H HDMI TO IP Streaming Encoder possess the features of stability, reliability, powerful function, network agility, which makes it a new generation HD network media terminal. It’s no fan and Low Power Consumption physical design, with encoding in compact size, benefit customers for more flexible to use, and avoid the trouble of gathering multiple device.
Key Features:
Embedded hardware encoding
Video compression H.265/HEVC and H.264/AVC
Up to 1080P@60fps output
HDMI input/loopout, easy to monitor the video source quality.
Low latency less than 200ms
Capable of real-time recording, save the file to local storage by TF card.
Multi-Protocol: RTMP, RTSP,TCP/IP, UDP(Unicast/Multicast) IP transmission mode
Support ONVIF and CMI protocol.
High reliable interface design: professional protective capability for surging and static
Web-based management easy for configuration
Technical Specifications:
Item |
Description |
Video In/Output | |
|
Input resolution 1920*1200P@60fps; 1920*1080P@60/50fps; 1920*1080P@30/25fps; 1920*1080i@60/50fps; 1680*1050, 1600*1200 1600*900,1440*900,1400*1050,1366*768 1280*1024,1280*960,1280*800,1280*768 1280*720P@60/50fps,1024*768 720*576P@60/50fps,720*480P@60/50fps 640*480,800*600 Output resolution 1920*1080@60/50HZ;1600*1200@60HZ; 1280*1024@60HZ;1280*720@60/50HZ; 1024*768@60HZ 1680*1050,800*600,720*576,720*480 704*576,640*480,640*360,352*288 320*240,320*180,auto | |
Encoding | |
|
Video compression: H.265/HEVC, H.264/AVC High/Main/Base Profile Bitrate/Frame: CBR/VBR/AVBR, 32Kbps~12Mbps/1-60fps Video encoding capacity: 1 channel up to 1080p@60fps Audio compression: AAC-LC,G.711a/u Audio sample rate: 32KHz,44.1KHz,48KHz Low latency: less than 200ms GOP length: 1~500 | |
In/Output Interface | |
|

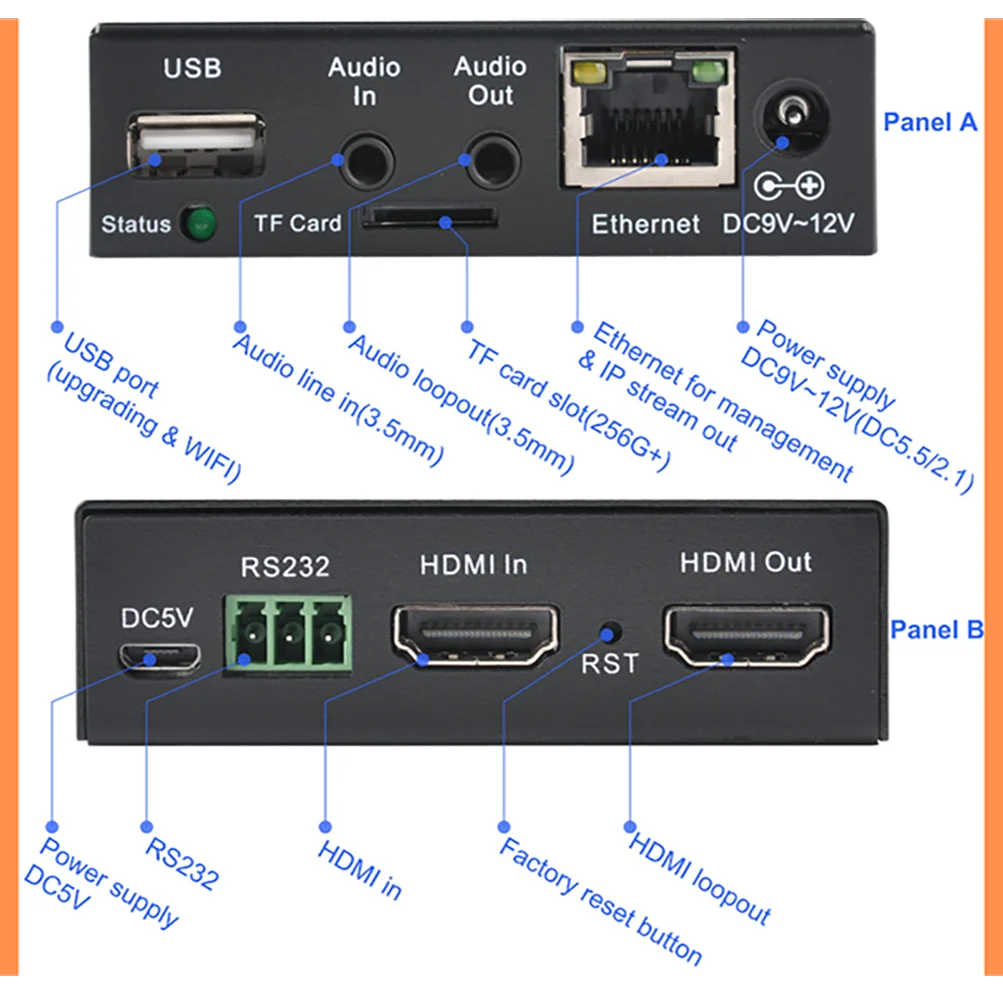

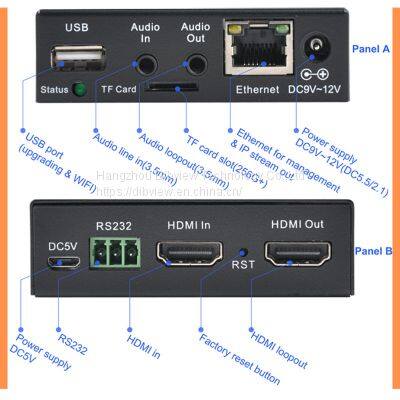

Video input: 1*HDMI in/loopout Audio interface: 1*Line in/loopout, 3.5 mm interface ( level:2.0Vp-p, Impedance:1 KΩ) Local storage: Micro SDXC TF card slot(capable of 256G+) Network: 1*10M/100M Adaptive Network interface USB interface: For upgrading and expand to external WIFI low-speed interface: 1* RS232 Power interface: DC5V(micro USB) and DC9V~12V(DC5.5/2.1) | |
Protocol | |
|
Network protocol: RTSP, RTMP, UDP(Unicast/Multicast), TCP/IP Communication protocol: CMI,ONVIF | |
The Working Environment | |
|
Power Supply: 5V Power consumption: 5W Operating temperature: -20~60°C (operation) Storage temperature: -40-70°C (-40-158°F) Dimensions: 120mm(L)*75mm(W)*23mm(H) | |
Applications:
Remote Education
Large party event
Hotel Internet TV
Network video conference
Operating room live broadcast
Central monitoring/recording system
H.264/H.265 HEVC Streaming IPTV Projects
Show details
Streaming IPTV HD H.264 H.265 HEVC Video Media Broadcast Encoder
