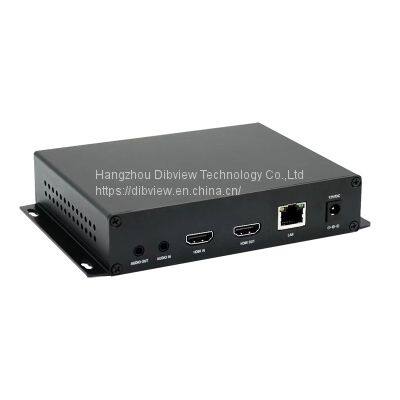

OTV-EL1 New Arrival H265 H264 IPTV Streaming HDMI Video TO IPTV SRT Encoder With LCD and Video Loopout Support Live Facebook

OTV-EL1 H.264 H.265 IPTV Streaming Encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 ch HDMI & Audio input and 1ch HDMI output, supporting H.265 and H.264 encoding format and two video streaming output, which is streaming by SRT, HTTP, RTSP, UDP /RTP, RTMP, RTMPS, ONVIF, HLS, FLV. HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps for the mainstream, 720@60fps for the main and 2nd stream, etc.,

OTV-EL1 H.264 H.265 IPTV Streaming Encoder support POE power supply optional, LCD real-time display to ensure uninterrupted video streaming.

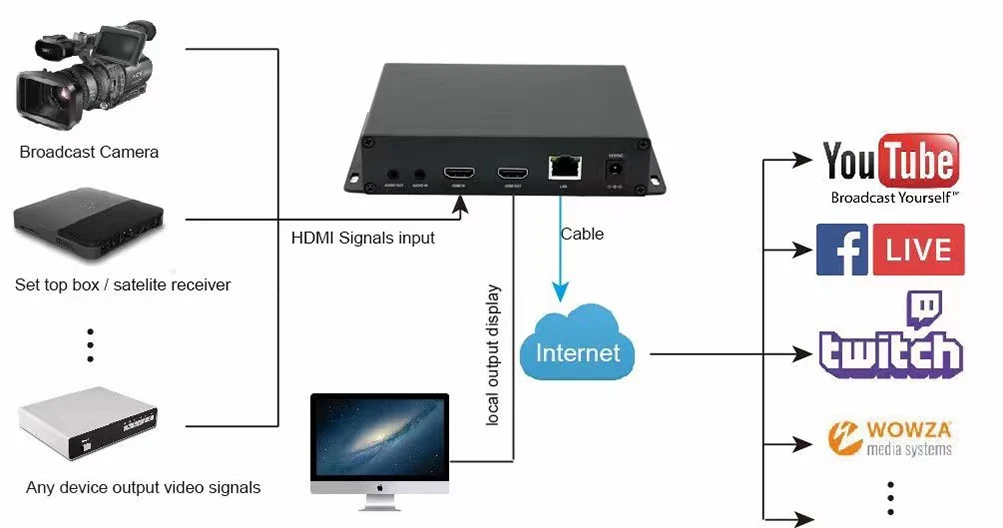

OTV-EL1 H.264 H.265 IPTV Streaming Encoder with high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.

Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U/2U /3U Rack. For 3U Rack, support max 16pcs encoder cards to be installed.

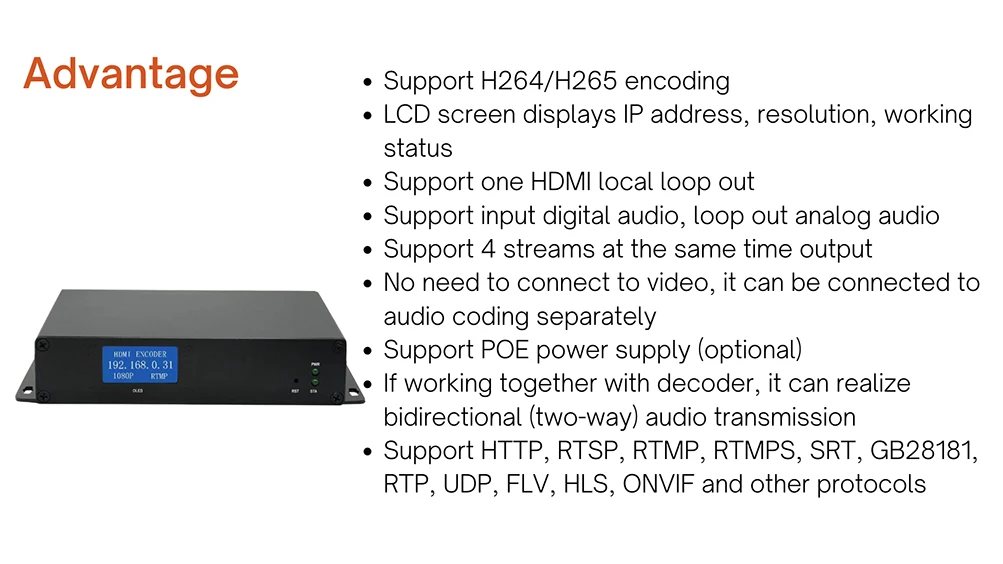

Main Features:

• Video Input: 1 Channel HDMI

• Video Compression: H.265 and H.264

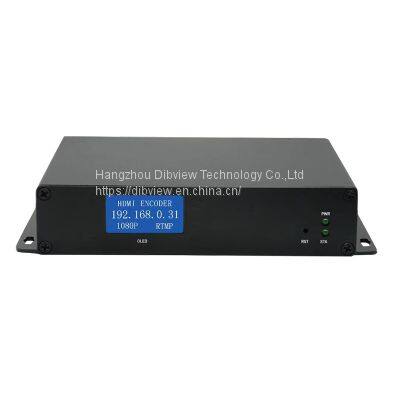

• LCD display device name, IP address, resolution and working status

• Support 1 ch HDMI loop output

• Support 1 ch Audio Input output

• support AAC/G.711 Advanced Audio Coding format quality

• POE power supply (For optional)

• 1000M network interface uses full duplex mode

• Mainstream and secondary stream can be pushed to the different server

• Supports up to 720P, 1080P@30/60HZ HD video input

• Support image parameter settings

• Provide HDCP protocol and Blu-ray

• Provide SRT, HTTP, UTP, RTSP, RTMP, RTMPS, RTP, ONVIF protocol, the mainstream and side stream use the different network protocol for transmission

• WEB interface, English, and Chinese is optional for configuration interface

• WEB interface management authority

• Support remote management in WAN(WEB)

• Support resolution customized settings

• Support one key to restoring the factory configuration

• Support SDK, secondary development

Key Specifications:

Video

Input interface: 1 Channel HDMI (Support HDMI1.4 and HDCP1.4)

Support resolution 1080P\1080i\720P, 1600x1200\1400x1050\1440x900\1280x1024\

1280x960\1280x800\1024x768\800x600 etc.

Frame rate: 30/60 frame rate

Output interface: 1*Ethernet port (RJ45), 1*HDMI (Support HDMI1.4 and HDCP1.4)

Video encoding: H.265/H.264

Code Rate control: 16kbps- 12Mbps

Code Rate: CBR/VBR

Audio

Input interface: 1*External audio, HDMI built-in Audio

Output interface: 1*External audio

Audio encoding: ACC, MP3

Sampling rate: Auto

Bit-rate Option: 32k,44.1K,48K,64K,96K,128K,160K,192K,384K

Sampling Accuracy: 24 Bit

Audio Data-rate: 64Kb/s to 384Kb/s

Network: RJ45 1000M Ethernet port

Program streaming HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVIF(UDP/RTP)

Control Panel: Web panel (Language is English), remote upgrade

Firmware Update: Enable by uploading files to the dashboard

Working Environment

Dimension(W*L*H): 6.4*4.4*1.3in(163*111*32mm)

Gross Weight: 0.35kg

Temperature: 0 ~ 45℃(for working),-20~60℃(for storing)

Humidity<90%, non-condensing

Input Voltage: DC 12V/1A

Power Consumption: 5W
