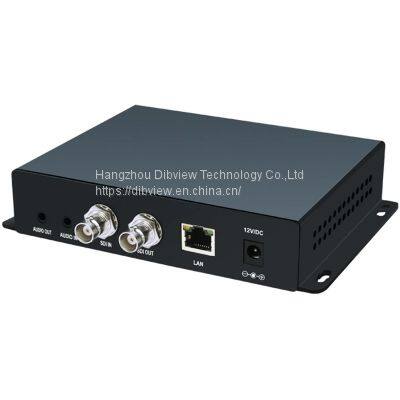

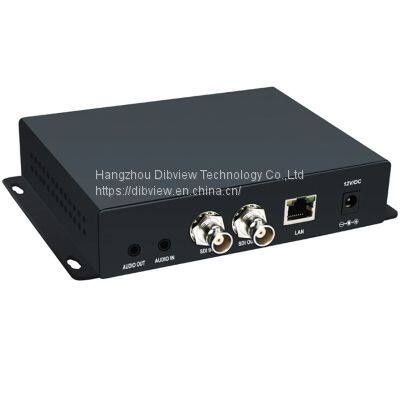

HD SDI IPTV Encoder H265 H264 OLED Facebook Codec Streaming With IP HTTP, RTSP, UDP /RTP, RTMP, RTMPS, SRT, ONVIF, HLS, FLV

OTV-ES1 SDI IPTV Encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI &Audio input and 1ch HDMI output, supporting H.265 and H.264 encoding format and four video streaming output, which is streamingby HTTP, RTSP, UDP /RTP, RTMP, RTMPS, SRT, ONVIF, HLS, FLV.

OTV-ES1 SDI IPTV Encoder can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Key Features:

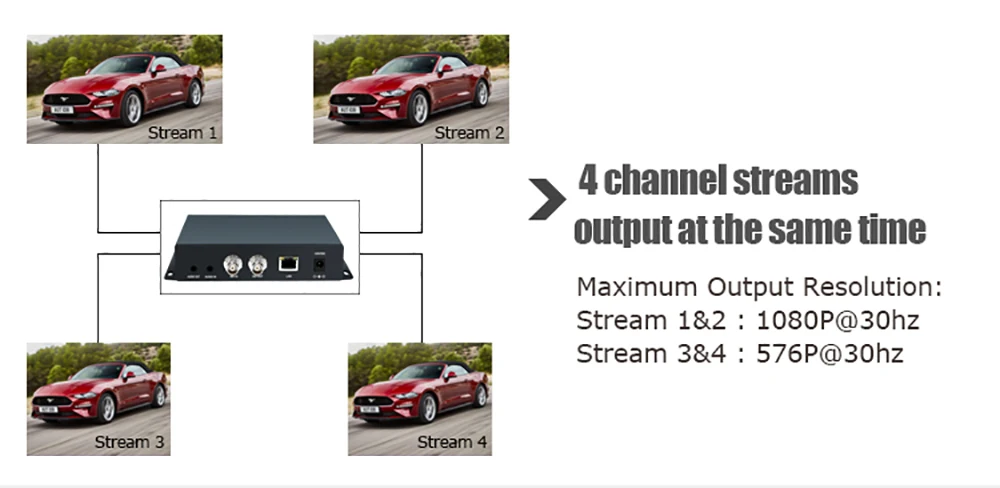

• Support 4 channel stream output simultaneously.

• Support POE.

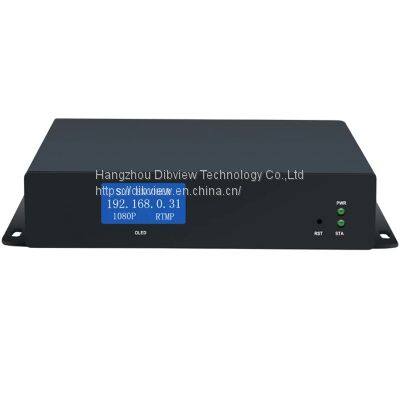

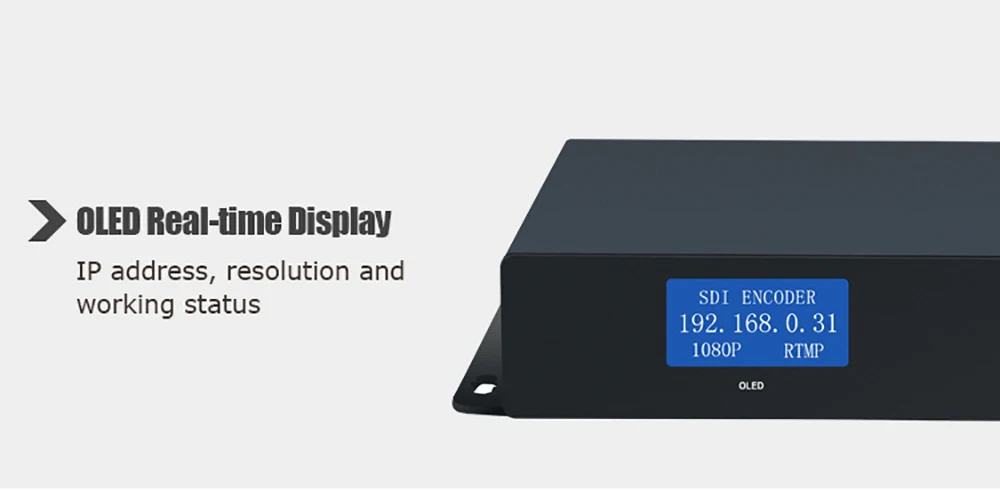

• OLED real-time display to ensure uninterrupted video streaming.

• No need to access video, audio can be coded separately.

• Product Name: IPTV Streaming Encoder

• Input Interface: SDI*1, Audio*1

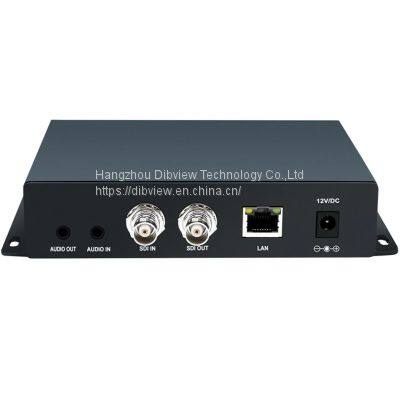

• Output Interface: RJ45*1, SDI*1, Audio*1

• Video Encoding: H.265/H.264

• Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF protocol

Technical Specification

Video

Input interface: 1*SDI

Support resolution 1080P\1080i\720P, 1600x1200\1400x1050\1440x900\1280x1024\

1280x960\1280x800\1024x768\800x600 etc.

Frame rate: 30/60 frame

Output interface: 1×Ethernet port (RJ45), 1×SDI

Video encoding: H.265/H.264

Code Rate control: 16kbps- 12Mbps

Code Rate: CBR/VBR

Audio

Input interface: 1×External audio, SDI built-in Audio

Output interface: 1×External audio

Audio encoding: ACC, G711

Sampling rate: Auto

Bit-rate Option: 32k,44.1K,48K,64K,96K,128K,160K,192K,384K

Sampling Accuracy: 24 Bit

Audio Data-rate: 64Kb/s to 384Kb/s

Network

RJ45: 1000M Ethernet port

Program Streaming HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVIF(UDP/RTP)

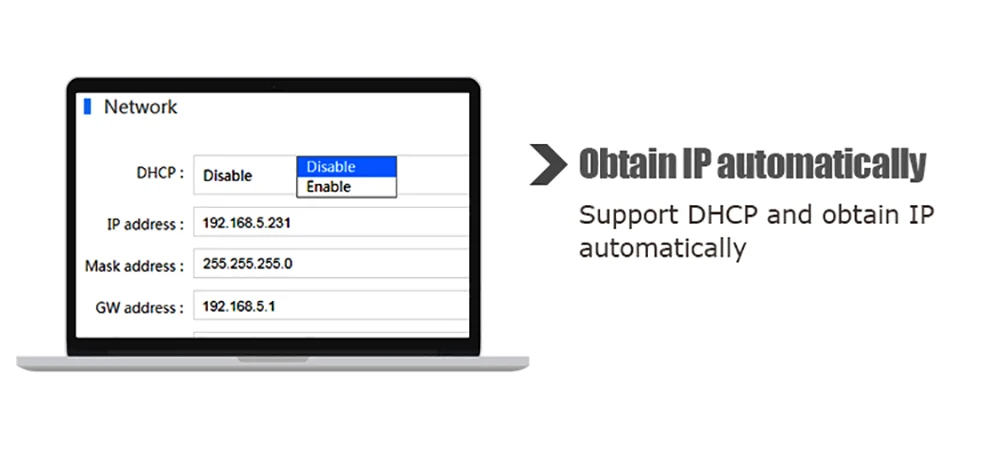

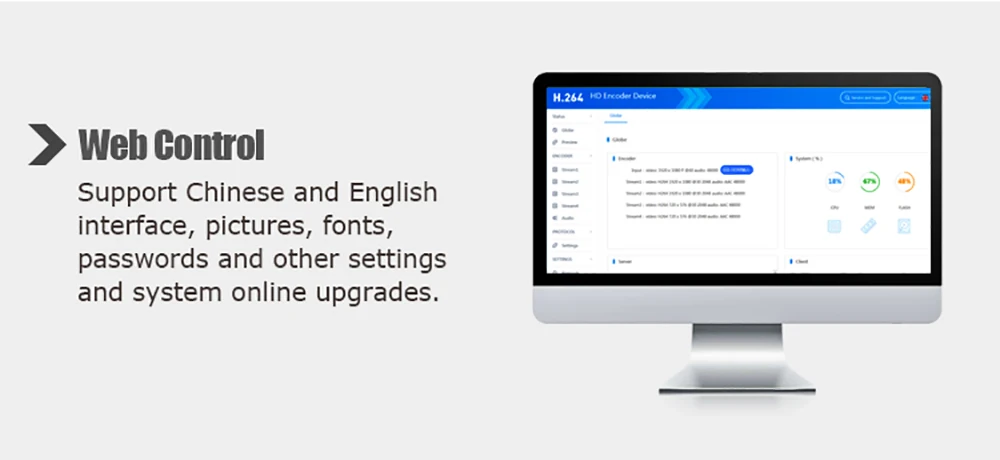

Control Panel: Web panel (Language is English), remote upgrade

Firmware Update: Enable by uploading files to the dashboard

General

Dimension(W*L*H) 6.4*4.4*1.3in(163*111*32mm)

Gross Weight: 0.35kg

Temperature: 0 ~ 45℃(for working),-20~60℃(for storing)

Humidity <90%, non-condensing

Input Voltage: DC 12V/1A

Power Consumption: 5W

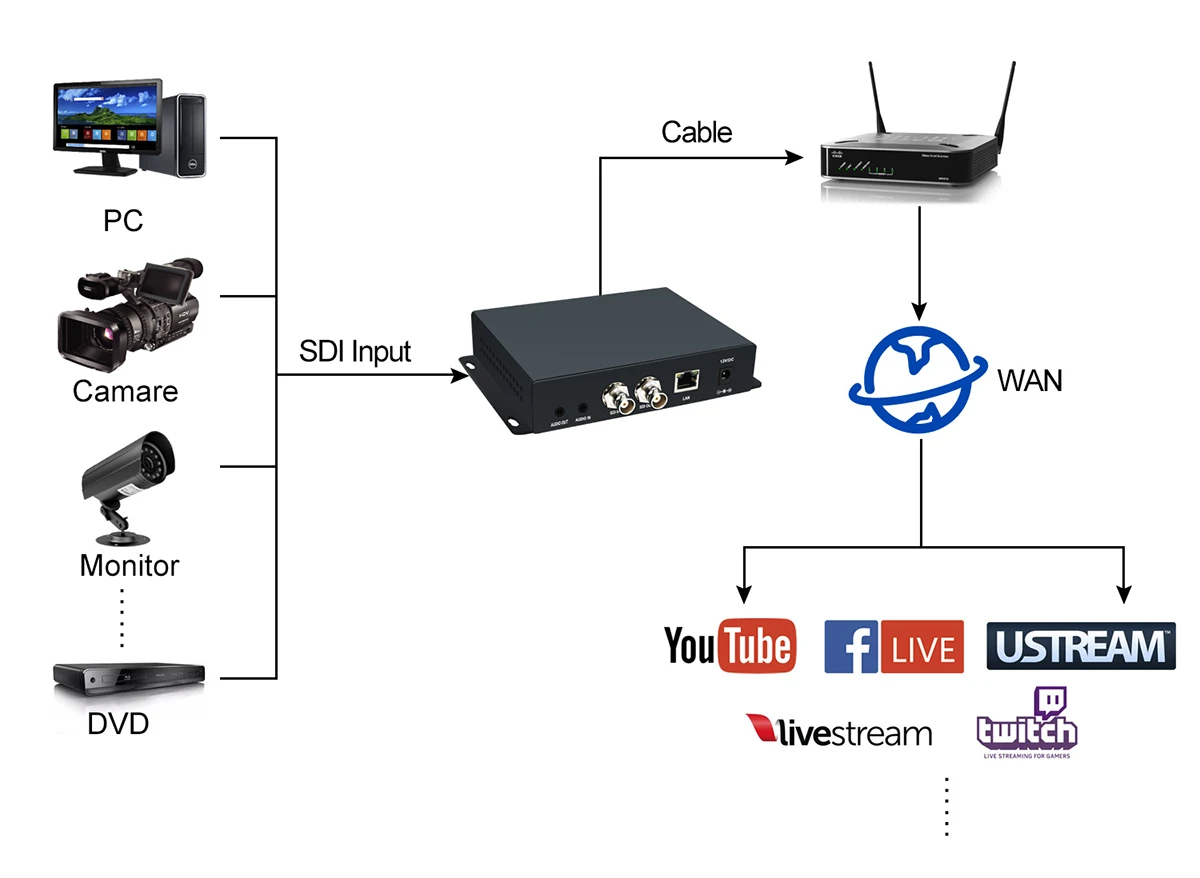

(1) For Live Streaming Online Connection

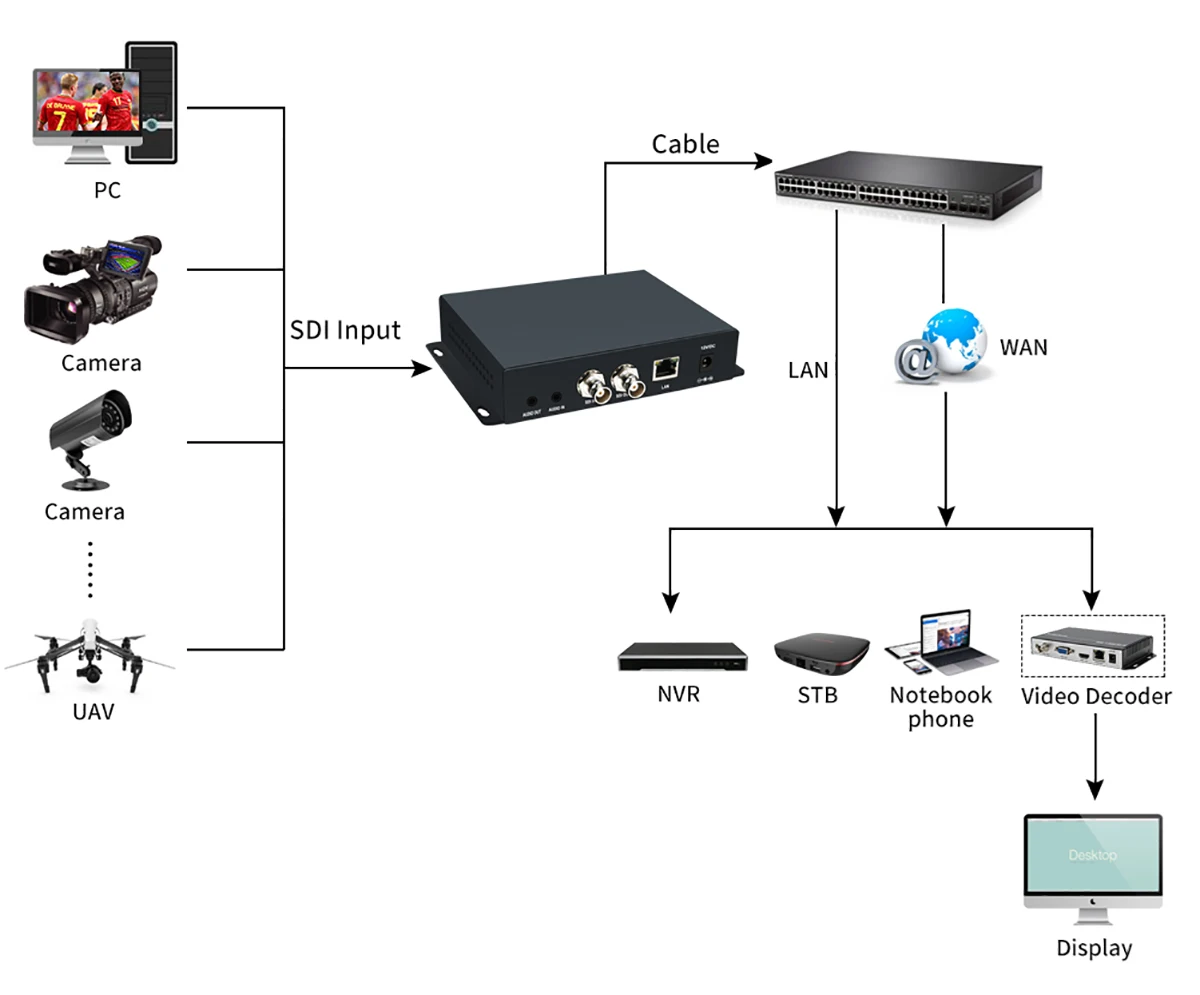

(2) For Multi-purpose Connection

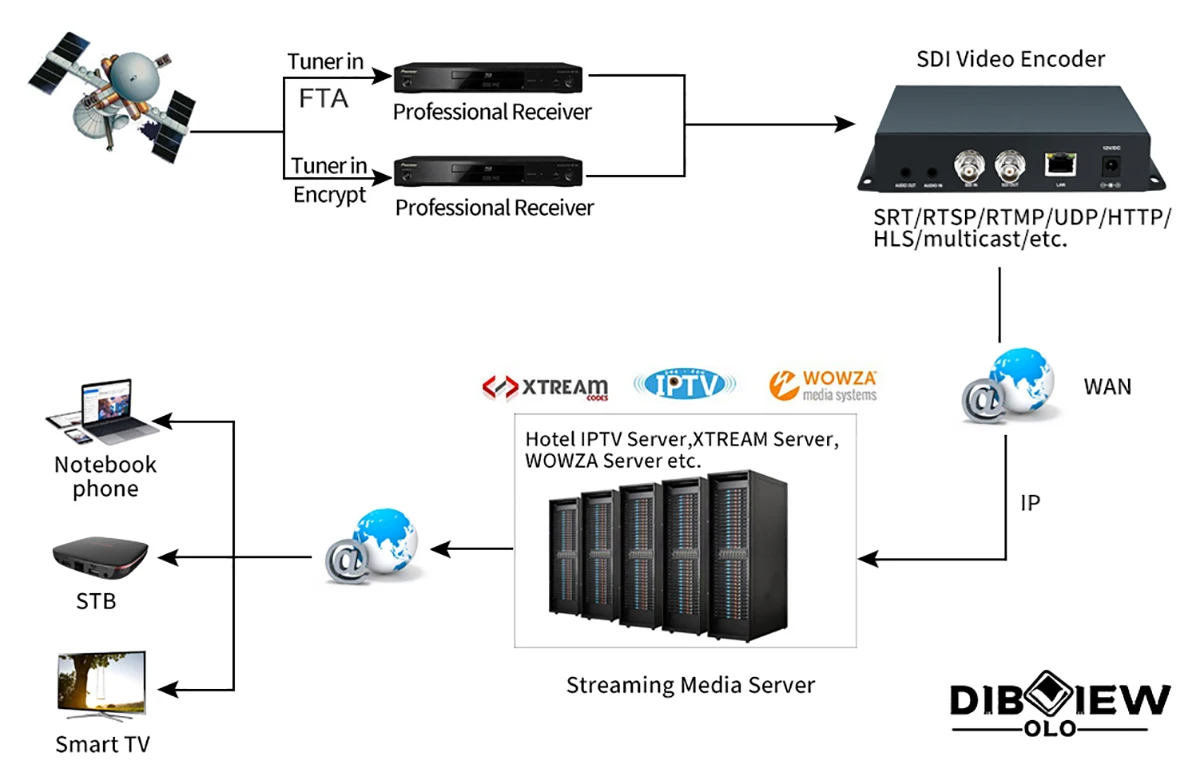

(3) For IPTV Project Connection
