IEC60884-1 1N & 20N Test Probes for Socket-outlet No-accessibility of Live Parts Test Gauges Through Shutters
US$ 60 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP884
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
Interlock Concealment Test Probe IEC60335-2-25 Fig 101US$ 60 - 400MOQ: 1 Piece -
PG-PA145 UL982 Test Rod ProbeUS$ 60 - 400MOQ: 1 Piece
-
PA160B UL Test Probe for Hazardous Moving PartsUS$ 60 - 400MOQ: 1 Piece
-
PA140 UL1278 Test Probe for Film Coated WireUS$ 60 - 400MOQ: 1 Piece
-
PA130A UL Accessibility Test Probe for Uninsulated Live PartUS$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TP884
Power
Other, None
Usage
Universal Testing Machine
IEC60884-1 1N & 20N Test Probes for socket-outlet no-accessibility of live parts test gauges through shutters
1. Introduction：

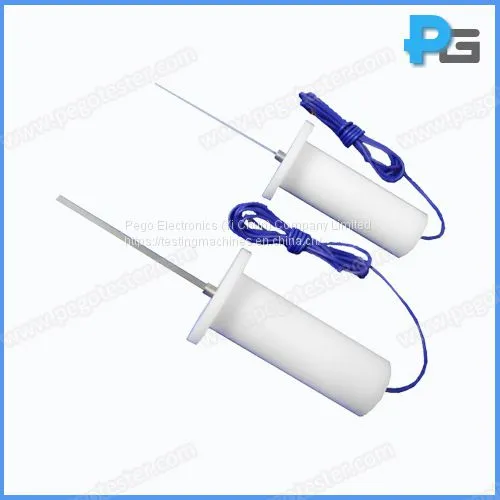

The probes are designed according to IEC60884-1 figure 9 and figure 10. 20N test probe is for checking non-accessibility live part through shutters, 1N test probe is for checking non-accessibility live part through shutters and live parts of socket-outlets with increased protection.
2. Specification:
20N Push force |
Rigid steel wire |
Diameter: 3+0.03mm, length: 80±0.5mm |
Tip of rigid steel wire |
R0.2+0.05 |
|
1N Push Force |
Rigid steel wire |
Diameter: 1+0.015mm, length: 80±0.5mm |
Tip of rigid steel wire |
R0.05 |
