PA130A UL Accessibility Test Probe for Uninsulated Live Part
US$ 60 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PA130A
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
UL Articulate Finger Probe with Web StopUS$ 60 - 400MOQ: 1 Piece -
UL60950 Wedge Probe With CNAS Calibrated CertificateUS$ 60 - 1000MOQ: 1 Piece
-
IEC60335-2-11 Test Probe for Measuring Surface TemperaturesUS$ 60 - 400MOQ: 1 Piece
-
IEC 60065 Telecom Test ProbeUS$ 60 - 400MOQ: 1 Piece
-
IEC60335-2-9 Test Hammer for Fragmentation Test of GlassUS$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PA130A
Power
Other, None
Usage
Universal Testing Machine
PA140 UL1278 Test Probe for Film Coated Wire
1. Introduction：
UL accessiliby test probe for uninsulated live part is designed according to UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A). The handle is made by nylon and tip is made by stainless steel.
2. Specification:
Rigid finger length |
101.6mm (4 inch) |
Rigid finger diameter |
Φ12.7mm (1/2 inch) |
Head length |
14.3mm (9/16 inch) |
Head radius |
R4.8mm (3/16 inch) |
Tail diameter |
191.mm (3/4 inch) |

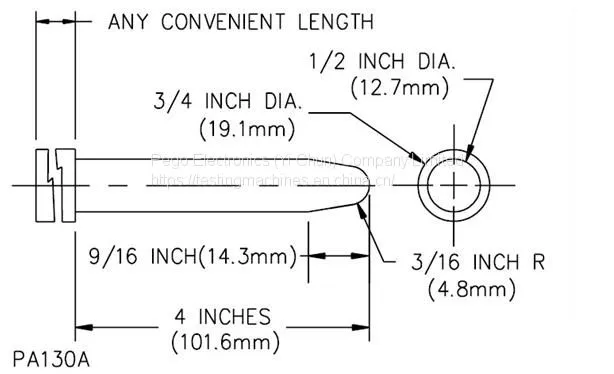

3. Picture:
