UL Articulate Finger Probe with Web Stop
US$ 60 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PA100A
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
UL60950 Wedge Probe With CNAS Calibrated CertificateUS$ 60 - 1000MOQ: 1 Piece -
IEC60335-2-11 Test Probe for Measuring Surface TemperaturesUS$ 60 - 400MOQ: 1 Piece
-
IEC 60065 Telecom Test ProbeUS$ 60 - 400MOQ: 1 Piece
-
IEC60335-2-9 Test Hammer for Fragmentation Test of GlassUS$ 60 - 400MOQ: 1 Piece
-
IEC60065 Figure 9 Test Plug for Antenna Coaxial SocketUS$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PA100A
Power
Other, None
Usage
Universal Testing Machine
UL Articulate Finger Probe with Web Stop
1. Introduction：
Articulate probe with web stop is designed according to IEC62368 figure V.1, meet the requirements of UL507 figure 6.5 (PA100A), UL1017 figure 2, UL1062 figure 1.2, UL1310 figure 14.2, UL982 figure 7.1, UL474 figure 5.1, UL6500 figure 14, UL60065 figure 14, UL1082 figure 7.2 and UL1278 figure 8.3. Palm simulator and restricted joint movement simulates human finger movement. It’s made of nylon. Bell-Core accessory available. The handle is made of nylon. The finger is made of stainless steel.
2. Specification:
Test finger length |
234mm |
The bending part length |
30/30/40mm |
Reference standards |
UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |

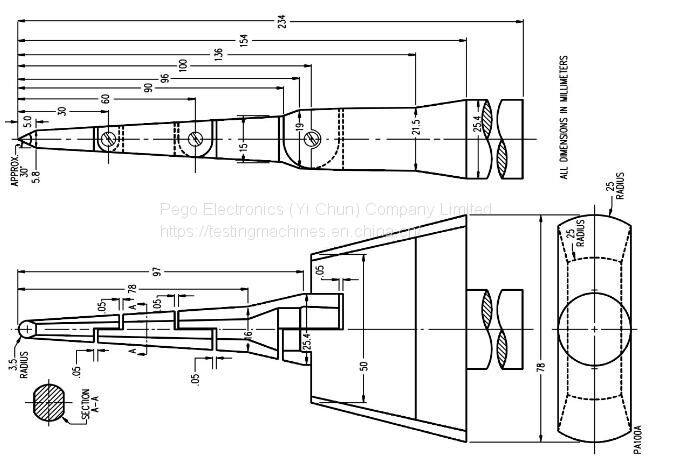

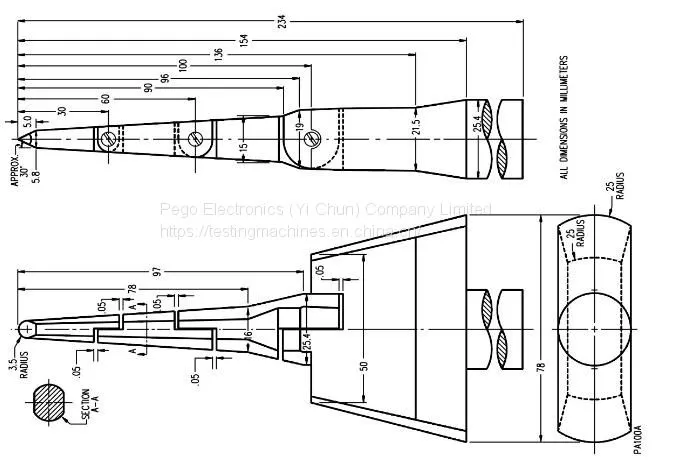

3. Picture:
